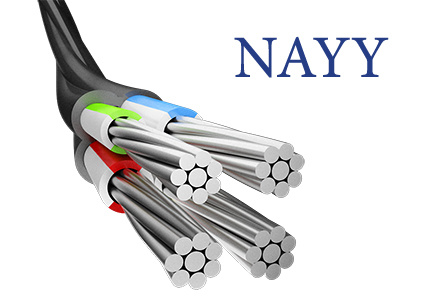

NAYY-J Power Cable 0, 6/1 kV, VDE Approved

Name: NAYY-J Power Cable 0, 6/1 kV, VDE Approved
Brand: all-electronics-online.com
SKU: 711164292
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NAYY BM38
Application:	Underground
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	VDE
Wire Core Material:	Aluminum Wire
Model:	VV
Brand:	Yifang

Product Description

Constructions

Conductor: Plain circular stranded aluminum conductor, conforms to IEC 60228 class 2

Insulation: XLPE

Inner Covering: PVC

Sheath: PVC type ST₂to IEC 60502, black

Note: Insulation color as per standards or at request

Applications

Standards

International: IEC 60501, IEC 60228

China: GB/T 12706.1-2008

Other standards such asVDE, BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (70ºC), short circuit no more than 5 s (160ºC when section-area below 300mm², 140ºC when section-area above 300mm²)

Min. Ambient Temp.: 0ºC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Type

Core number

mm²

Nominal cross section area

VV22

VLV

VLV22

1.5~500

2.5~500

10~500

VV22

VLV

VLV22

1.5~185

2.5~185

4~185

VV22

VLV

VLV22

1.5~300

2.5~300

4~300

VV22

VLV

VLV22

2.5~300

4~300

VV22

VLV

VLV22

3+1

4~300

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
