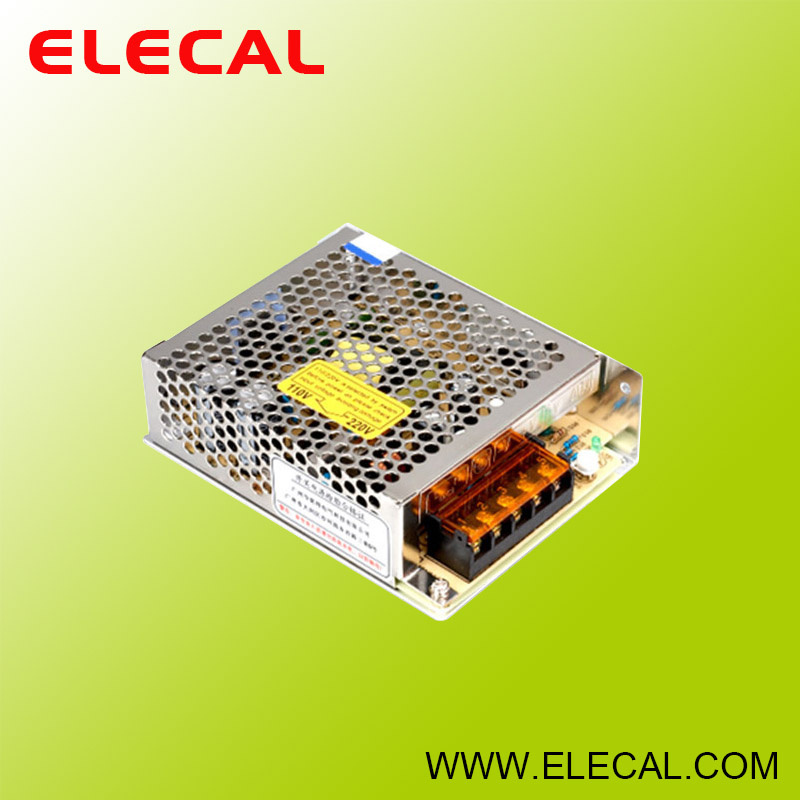

Ned-50 Multiple Output Switching Power Supply

Ned-50 Multiple Output Switching Power Supply
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: NED-50
Frequency Range: 47-63Hz
Warranty: 2 Years
Certification: CE
Output Type: Multiple Output
Output Power: 54W
Input Voltage: 85-264VAC /120-370VDC
Brand: Elecal

Product Description

MODELNED-50ANED-50B
OUTPUTOUTPUT NUMBERCH1CH2CH1CH2
DC VOLTAGE5V12V5V24V
RATED CURRENT6A2A4A1.4A
CURRENT RANGE Nota.61-6A0.3-3A1-6A0.2-2A
RATED POWER54W53.6W
RIPPLE & NOISE (max.) Note.280mVp-p120mVp-p80mVp-p200mVp-p
VOLTAGE AD J. RANGECHI: 4.75-5.5VCH1:4.75 _ 5.5V
VOLTAGE TOLERANCE Not«.3±2.0%±6.0%±2.0%±6.0%
LINE REGULATION Note.4±0.5%±1.0%+0.5%±1.0%
LOAD REGULATION Note.5+1.5%+3.0%+1.5%+3.0%
SETUP, RISE TIME500ms, 30ms/230VAC 1200ms,30ms/115VACatfull load
HOLD UP TIME (Typ.)50ms/230VAC 10ms/115VAC at full load
INPUTVOLTAGE RANGE85-264VAC 120-370VDC
FREQUENCY RANGE47-63Hz
EFFICIENCY(Typ.)79%82%
AC CURRENT (TVp.)1.1A/115VAC 0.65A/230VAC
INRUSH CURRENT (Typ.)COLD START 45A
LEAKAGE CURRENT<2mA/240VAC
PROTECTIONOVERLOAD110 -150% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
OVERVOLTAGECH1:5.75 _ 6.75V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENTWORKING TEMP.-20 - +60°C {Refer to "Derating Curve")
WORKING HUMIDITY20 ^ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~+85°C, 10-95% RH
TEMP. COEFFICIENT±0.03%/DC {0-45r)
VIBRATION10 - 500Hz, 2G 10min./1cycle, period for 60min. each along Xf Y, Z axes
SAFETY &
EMC (Note 7}		SAFETY STANDARDSUL60950-1, CB(IEC60950-1) approved
WITHSTAND VOLTAGEl/P-0/P:3KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCEl/P-O/P, l/P-FG, O/P-FG:100M Ohms / 500VDC/25cC/ 70% RH
EMC EMISSIONCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITYComplianceto ENSIOOIM-MAS,6,8,11, EN55024, EN61000-6-1, light indusiry level, criteria A
OTHERSMTBF413.3Khrsmin. MIL-HDBK-217F {25.°
DIMENSION129*98*38mm(L*W*H)
PACKING0.44Kg; 45pcs/21 Kg/1.24CUFT
NOTE1.All paraineters NOT specially mentioned are measured at 230VAC input, rated load and 25DC of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacrtor.
3. Tolefance: Indudes set up tolerance, line regulation and load regulation.
4 Line regulation is measured from law line to high line at rated load.
5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
6. Each output can work within current range. But total output power cant exceed rated csutput power.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it sSII meets
EMC directives. For guidance on how to perform these EMC tests, please refer to ^EMI testing of component power supplies.1*
