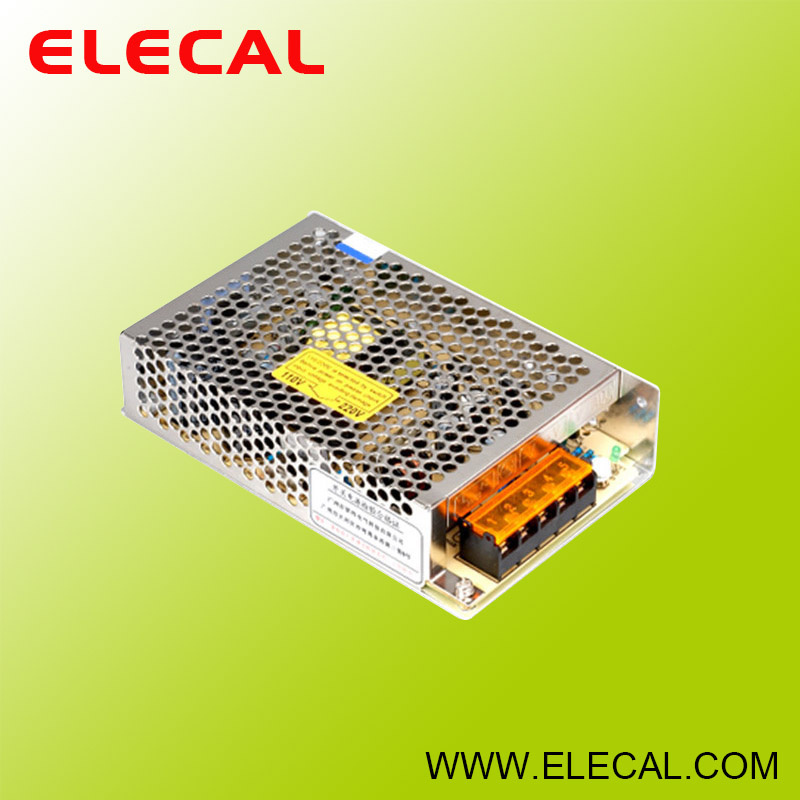

Ned-75 Multiple Output Switching Power Supply

Name: Ned-75 Multiple Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828839885
Availability: InStock
Rating: 4.9 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NED-75
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Multiple Output
Output Power:	71W/73W
Input Voltage:	85-264VAC 120-370VDC
Brand:	Elecal

Product Description

MODEL		NED-75A		NED-75B
OUTPUT	OUTPUTNUMBER	CH1	CH2	CH1	CH2
	DCVOLTAGE	5V	12V	5V	24V
	RATEDCURRENT	7A	3A	5A	2A
	CURRENTRANGE	1-8A	0.3-4A	1-6A	0.2-3A
	RATEDPOWER	71W		73W
	RIPPLE&NOISE(max.)	80mVp-p	120mVp-p	80mVp-p	200mVp-p
	VOLTAGE AD J.RAN6E	CH1:4.75-5.5V		CH1:4.75-5.5V
	VOLTAGE TOLERANCE	±2.0%	±6.0%	±2.0%	±6.0%
	SETUP,RISF TIME	500ms,30ms/230VAC 1200ms,30ms/115VAC at full load
	HOLDUP TIME (Typ.)	50ms/230VAC 10ms/115VAC at full load
INPUT	VOLTAGE RANGE	85~264VAC 47~63Hz; 120~370VDC
	EFFICIENCY	78%		81%
	AC CURRENT	1.5A/115V 0.9A/ 230V
	INRUSHCURRENT(Typ.)	Cold start 45A
	LEAKAGECURRENT	<2mA/240VAC
	OVERLOAD	110-150%rated output power
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
PR0TECTI0	N OVERVOLTAGE	CH1: 5.75-6.75V
		Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONI	WORKINGTEMP.	Humidity -20ºC~+60ºC; 20%~90% RH non-condensing
	WORKINGHUMIDITY	2CH0%RH non-condensing
	STORAGETEMP.,HUMIDITY	Humidity -40ºC~+85ºC; 10%~95% RH
	TEMP.COEFFICIENT	±0.03%/ºC(0~45ºC)
	VIBRATION	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY! EMC (Note?)	SAFE1T STANDARDS	UL60950-1 ,CB(IEC60950-1)approved
	WITHSTANDVOLTAGE	I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC
	ISOLATIONRESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25ºC/70% RH
	EMCEMISSION	Compliance to EN55022(CISPR22)ClassB1 EN61000-3-2,-3
	EMCIMMUNITY	Compliance to EN610004-2,3,4,5,6,8,11 .EN55024.EN61000-6-1 ,light industry level, criteria A
OTHERS	MTBF	402.7Khrsmin.MIL-HDBK-217F(25 } °C
	DIMENSION
	PACKING
NOTE	1. AII parameters NOT specially mentioned are measuredat230VACinput,r °C 2. Ripple & noise are measured at 20MHz of bandwidth by using a 1Zr twisted pair- wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation Is measured from 20% to 100% rated load, and ottier output at 6 0% rated load. 6. Each output can work within current range. But total output power can't ex coed rated output power. 7. The power supply is considered a component which will be installed into a final equipment ITie final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of c component power supplies.
