| Prod Model: |
28BYGH101Series |
| Motor Series: |
28 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
15mm (0.59 in) |
| Shaft: |
Plain Shaft |
| Connectors: |
Connectors, Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
Precision Component |
| Operate Mode: |
2 Phase-8 Parts |
| Certification: |
RoHS |
| Brand: |
Shengyang |
Product Description

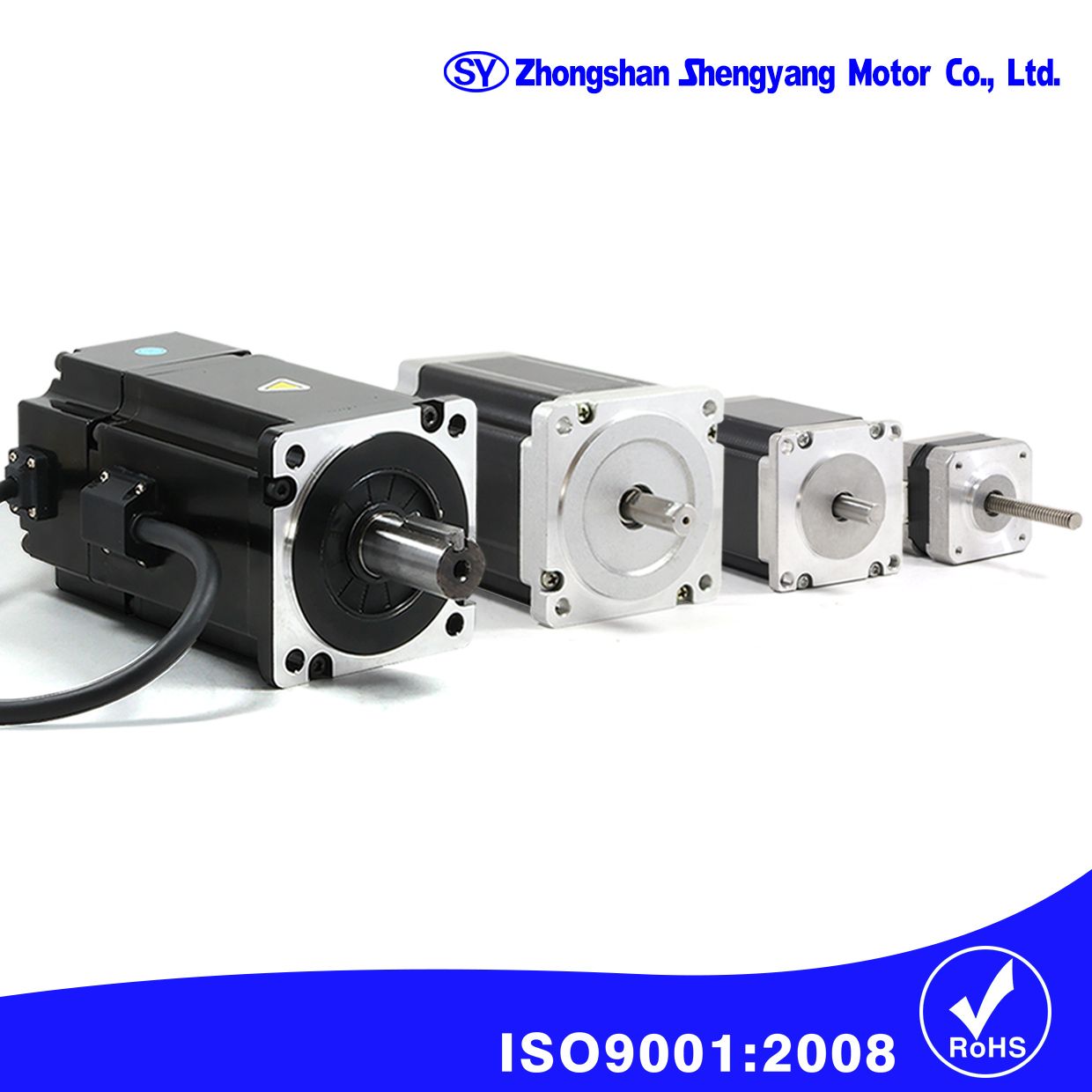

NEMA 11 (28 mm) Stepper Motor for Automatical Medical
Features:
High accuracy
Low inertia
Smallsize
Product Description:
1. Specifications:
Motor Model: 28BYGH101-D-15
Step Angle: 1.8°± 5% full step, no load
Holding Torque: 50 mN.m (7.08oz-in)
Resistance per Phase: 12 ohm
Inductance per Phase: 4 mH
Rated Current: 0.3 A DC
Shaft End Length: 15 mm (0.59 in)
Connectors: Connectors, Lead Wires
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ±10%
Insulation Resistance: Larger than 100 mΩ 500 V DC
Dielectric Strength: 600 V AC for 1 S, leakage current less than 1 mA
2. Notes:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, our raw materials comply with RoHS, all of the derived motors can be customized, welcome to contact us.
