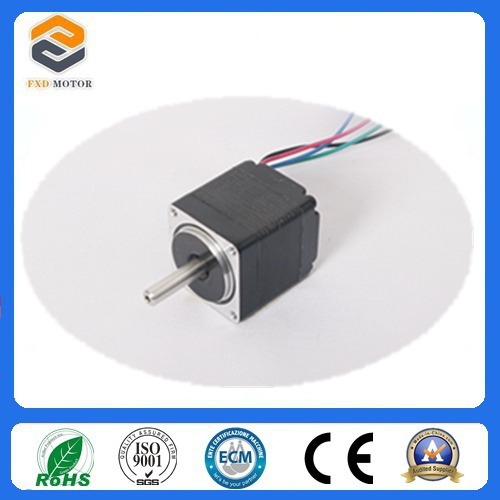

NEMA 11 Stepper Motor for ATM Machine

Name: NEMA 11 Stepper Motor for ATM Machine
Brand: all-electronics-online.com
SKU: 757999245
Availability: InStock
Rating: 5 (64 reviews)

Price:	US $ 11.6-12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXD28H-232-067-18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8 Degree
Step Angle Accurancy:	5%
NEMA:	11
Phase:	2 Phase
Price:	Negotoable and Competitive Price
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Electromechanical
Number Of Poles:	50
Certification:	CE, RoHS
Brand:	Fxd Motors

Product Description

Model:FXD 28 H 2 32 -067 -18	General Info
A B C D E F G	Step angle accuracy	±5%
Note: A Fuxianda	Temperature rise	80K Max
B Motor dia or square size	Ambient temperature	-20ºC-+50ºC
C Hybrid stepper motor	Insulation resistance	100M Min.500VDC
D Phase number	Dielectric strenght	500VAC.3mA,1 minute
E Motor length	IP Class	IP40
F Phase current multiply by 100	Insulation Class	Class B
G Step angle multiply by 10

Model	Step angle	Motor length	Phase current	Phase resistance	Phase inductance	Holding torque	Lead No.	Weight
Unit	(°)	L(mm)	(A)	(Ω)25ºC	(mH)	(N.cm)		(g)
FXD28H432-095-18	1.8	32	0.95	2.8	1	0.43	6	110
FXD28H232-067-18	1.8	32	0.67	5.6	4.2	0.6	4	110
FXD28H445-095-18	1.8	45	0.95	3.4	1.2	0.75	6	140
FXD28H245-067-18	1.8	45	0.67	6.8	4.9	0.95	4	140
FXD28H451-095-18	1.8	51	0.95	4.6	1.4	0.9	6	200
FXD28H251-095-18	1.8	51	0.67	9.2	5.7	1.2	4	200

Applications:
The stepper motor produced by our company is used very widely as below:
Industries of robots, Medical equipment
Office automation, Electrical area
Printing equipment, Textile machinery
Monitoring system, Computer, stage lighting
Advertising equipment, The NC machine etc.

Note: If you need more information. Please contact with us, our contact information.
Web: http://fxdmotor.en.made-in-china.com/ Phone: +86 0519 83666368
www.fxdmotors.com Mob: 15295173813
FXD MOTOR YOUR BEST CHOICE!

Changzhou fuxianda Electromechanical Co., Ltd is established in November 2011. Our company is a factory with products Brushless DC motors, Hybrid stepper motors, gearmotors and matched drivers.

Changzhou fuxianda Electromechanical Co., Ltd also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motor, PM synchronous motor and Brush DC motor. We export our motors to more than 10 countries such as United States, France Italy, South Africa and Russia.

The Fuxianda product line is sold to major manufacturing companies for industry for automation, medical and health care equipment, printer machines, packing devices, information technology, household appliance products, and automobile.

We have an engineering team with many years of experience in application engineering, design engineering with the latest advances equipment. Our engineering staff provides the finest quality product with service after the product is delivered to our customers.

The possession of many excellent mechanical-electronical engineers and marketing personnel make our company skillful at providing customers with the plan of products integration.

Most of our products are CE approved. Our company adheres to principles of "Providing green products" and all of our products are RoHS compliant.

As a global supplier, Changzhou fuxianda electromechanical Co., Ltd scrupulously follows the guideline of international commercial rules and practices. We have achieved our reputation of cooperation with our customers over the years. Our Goal is to "Win the market with quality and service" which is the common voice of every Changzhou fuxianda Motor team member.

Good quality, reasonable price, on time delivery, efficient service is our pursuit. We are looking forward to cooperating with more friends in the future.
