NEMA 14 35mm 0.9 Degree Stepper Motor

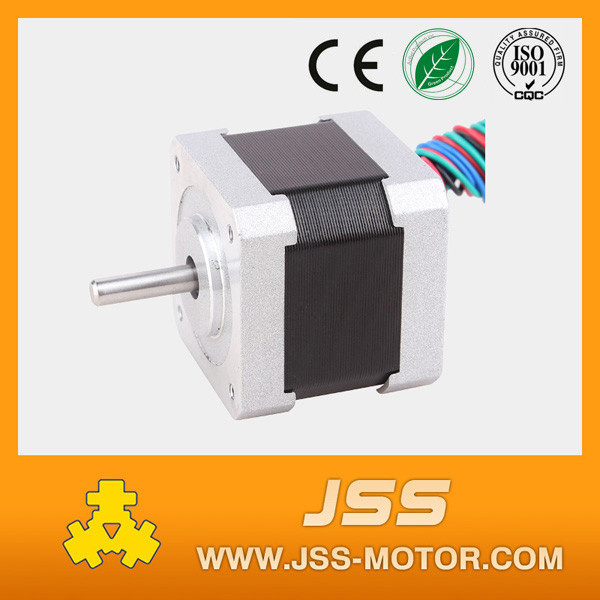

Name: NEMA 14 35mm 0.9 Degree Stepper Motor
Brand: all-electronics-online.com
SKU: 771714055
Availability: InStock
Rating: 4.7 (90 reviews)

Price:	US $ 7-8.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	35HM36-1004
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	0.9
Frame Size:	35mm*35mm
Current:	1.0A
Resistance:	2.7ohm
Inductance:	4.3mh
Holding Torque:	1.2kg.Cm
Motor Body Length:	36mm
Lead Wires:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Operate Mode:	Driver
Application:	Automatic Machine
Brand:	Jss
Certification:	CE

Product Description

Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.
Product Description:

Nema 14 35mm 0.9 degree stepper motor

Technique parameter:

Step Angle	0.9°
Step Angle Accuracy	±5% (full step,no load)
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80ºCMax.(rated current,2 phase on)
Ambient Temperature	-10ºC~+50ºC
Insulation Resistance	100MΩMin. 500VDC
Dielectric Strength	500VAC for one minute
Shaft Radial Play	0.06Max.(450 g-load)
Shaft Axial Play	0.08Max.(450 g-load)

35HM Motor Name List(High Torque)

Model No	Current/Phase	Resistance/Phase	Inductance/Phase	Holding Torque		#Of Leads	Rotor Inertia	Weight	Length
Model No	A	Ω	mH	Oz-in	g-cm		g-cm2	Kg	mm
35HM20-1004	1.00	10		7	500	4	8	0.1	20
35HM26-0804	0.80	4.8		7	500	4	10	0.12	26
35HM28-0404	0.40	12.5		13	900	4	10	0.14	28
35HM28-0504	0.50	20	14	14	1000	4	10	0.14	28
35HM34-0406	0.40	25		15	1100	6	14	0.17	34
35HM36-1004	1.00	2.7	4.3	17	1200	4	14	0.18	36

We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
AndWe also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

Our contact information:

Changzhou Jinsanshi Mechatonics Co.,Ltd

Contact Person : Wendy wang

More Quantity . More Discount !!!

Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.
