| Prod Model: |
42SHD0410-300NT |
| Holding Torque: |
450 Mn.M |
| Rated Current: |
0.4A |
| Rated Voltage: |
12V |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Certification: |
Ce, RoHS |
| Brand: |
Casun |
Product Description

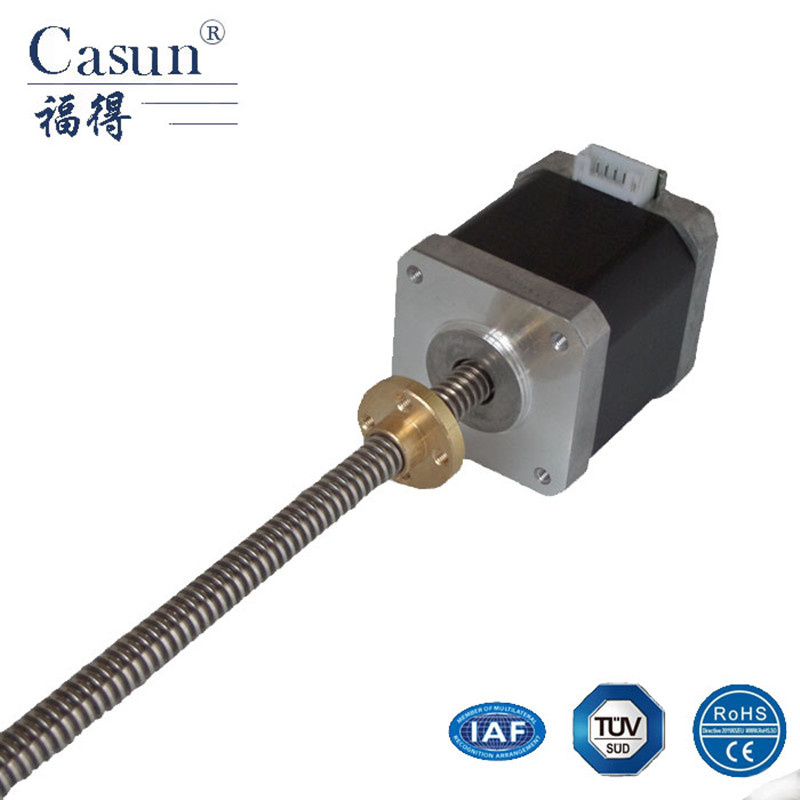

Casun stepper motor offers 2 phase ,3 phase hybrid stepper motor in three basic step angles :0.9 deg. 1.8deg. and 1.2 deg. and a wide rang e of frame size from Nema 8 (20mm) up to Nema 34 (86mm) , which also offers many axial options at the end of processing of the shaft ,hollow shaft ,dual shaft ,single flat shaft , double flat shat etc. Smaller rotary stepping motor find widely applications in 3d printers and many robotics. The larger NEMA frames are common in CNC machines and industrial applications. OEM & ODM are available, your motors also can be customized as your requirements.Nema 17 2 phase threaded rod 8mm diameter external lead screw stepper motor ( 42x48mm bipolar )
 | CASUN 42SHD0410-300NT |
| Rated Current | 0.4A |
| Rated Voltage: | 12V |
| Step angle: | 1.8 degree |
| Number of phase : | 2 phase |
| Lead screw | TR 8 x 2 |
| Wire : | 4 wire |
| Certification: | CE , ROHS |
General Specifications :| Model | Holding torque | Rated current | Resistance per phase | Inductance per phase | Detent torque | Rotor inertia | Lead wire | Motor length |
| mN.m | A | ohm | mH | mN.m | g.cm² | No. | mm |
| 42SHD0512 | 200 | 0.7 | 12 | 15 | 7.5 | 20 | 4 | 26 |
| 42SHD0001 | 260 | 0.4 | 30 | 37 | 12 | 38 | 4 | 34 |
| 42SHD0002 | 280 | 0.6 | 22 | 28 | 12 | 38 | 4 |
| 42SHD0009 | 200 | 0.4 | 30 | 21 | 12 | 38 | 6 |
| 42SHD0029 | 200 | 1.2 | 2.1 | 1.2 | 12 | 38 | 6 |
| 42SHD0202 | 400 | 0.5 | 25 | 50 | 18 | 57 | 4 | 40 |
| 42SHD0216 | 400 | 1.0 | 4.5 | 10 | 18 | 57 | 4 |
| 42SHD0219 | 300 | 1.2 | 3.2 | 3.0 | 18 | 57 | 6 |
| 42SHD0404 | 450 | 1.5 | 2.0 | 2.8 | 37 | 72 | 4 | 48 |
| 42SHD0441 | 420 | 1.2 | 3.2 | 6 | 37 | 72 | 4 |
| 42SHD0801 | 600 | 1.5 | 2.0 | 3.2 | 42 | 102 | 4 | 60 |
Above is our partial products parameter, for more products please contact us . Your samples can be customized. Figure Dimensions:
Our company :
Guangzhou Fude Electronic Technology Co., Ltd., established in 2011,engaged in stepper motor research , development, production and sales , are one of the hi-tech enterprises. After several years of technology researching and development, market development, we gradually become the one of best quality stepper motor manufacturers in China. In order to offer our best service and meet customer's requirements , we all try our best to customize the motor and provide solutions.
Our company has numerous world-class clients all over the mainland China, Taiwan, Europe and America, Japan, Korea and other countries or regions. Our products including hybrid stepper motor , lead screw stepper motor , planetary stepper motor with gearbox and closed loop stepper motor . They are widely used in robots, sculpture, laser machine , medical machine, stage lighting, 3d printer,, automation equipment, SMT and other equipments.
Certifications: 1.We have pass ROHS & CE certifications
2.We have our own paten stepper motors.
