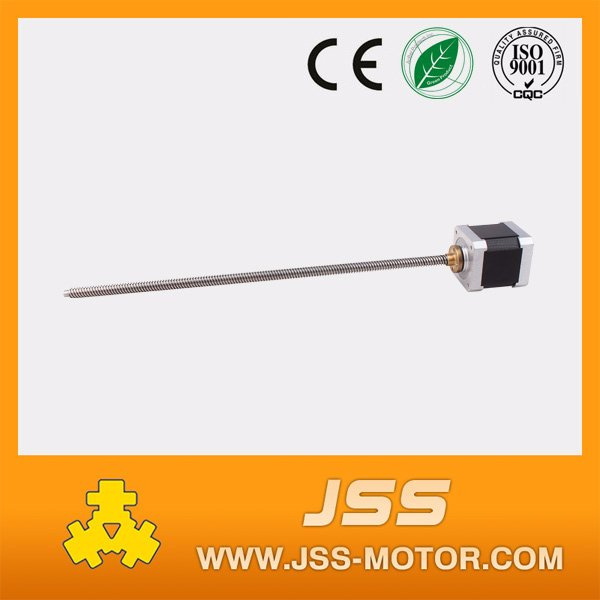

NEMA 17 200mm Long 1.2A Bipolar Linear Actuator Stepper Motor

Name: NEMA 17 200mm Long 1.2A Bipolar Linear Actuator Stepper Motor
Brand: all-electronics-online.com
SKU: 750771785
Availability: InStock
Rating: 4.5 (134 reviews)

Price:	US $ 16.67-33.33/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42HS48-1204A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8
Frame Size:	42mm X 42 Mm
Current:	1.2A
Resistance:	3.2
Inductance:	4.2mh
Holding Torque:	4.2kg.Cm
Motor Body Length:	48mm
Lead Wires:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Application:	CNC Machine
Operate Mode:	Driver
Certification:	Ce
Brand:	Jss

Product Description

Description:
1. NEMA 17 linear stepper motor
2. Lead screw length can be customized.
3. Lead screw Tr8*2(P2), Tr8*4(P2), Tr8*8(P2)
4. Lead distance: 2mm, 4mm, 8mm

Step Angle Accuracy: ± 5%
Resistance Accuracy: ± 10%
Inductance Accuracy: ± 20%
Temperature Rise: 80° C Max
Ambient Temperature: -20° C~+50° C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

Packing and delivery:
Packing: 20 pcs/carton or 30 pieces/carton
Delivery time: 7-10 days
Payment term: T/T, L/C, PAYPAL, Western union
Production Ability: 20000pcs/month

Application:
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

Contact information:
Tel: 86-519-86922120
Welcome to consult! ! ! ! ! ! ! ! ! ! ! ! !
JSS MOTOR YOUR BEST CHOICE!

TYEP	phase No.	step angle	current (A)	resistance(Ω±10)	inductance (mH±20)	holding torque(kg.cm)	length (mm)
42HS34-0804	2	1.8	0.8	6.5	4.6	2.3	34	4
42HS40-0804	2	1.8	1.2	6.5	12	4	40	4
42HS40-1704	2	1.8	1.7	2	3	4.2	40	4
42HS48-1504	2	1.8	1.5	1.4	2.5	4.8	48	4
42HS48-1504-1	2	1.8	1.5	2.8	4.8	5.5	48	4
42HS48-1684	2	1.8	1.68	1.8	2.8	4.8	48	4
42HS60-1504	2	1.8	1.5	2.5	6	7	60	4

Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.
