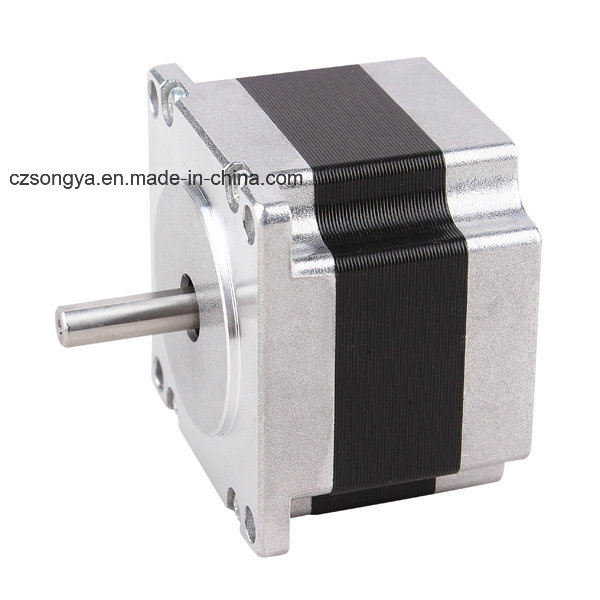

NEMA 23 1.8deg Hybrid Stepper Motor for Machinery
| Price: |
US $ 5.2-6.9/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SM57STH-series |
| Step Angle: |
1.8 Degree |
| Temperature Rise: |
80 Degree Max |
| Ambient Temperature: |
-20~+50 Degree |
| Insulation Resistance: |
100mΩmin.500VDC |
| Radical Runout: |
0.02max. (450g-Load) |
| Axial Runout: |
0.08max. (450g-Load) |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
Two Phase Four-Step |
| Certification: |
Ce |
| Brand: |
Soya |
Product Description
1. Two phase/ three phase stepper motor;
2. Made of anti-high temperature permanent magnet and high quality cold-rolled steel sheet;
3. CNC machine engraved axle, high quality bearing;
4. Alluminium alloy cap, plastic insulation, copper wires auto-wired.
5. Featured by its low noise, low vibration, low heating, of stable performance;
6. Excellent internal damping, can be used by different industries and under any circumstances, long lifespan.
Nema 17 stepper motor:| Item | Parameter |
| Step Angel Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80ºC Max |
| Ambient Temperature | -20ºC~+50ºC |
| Insulation Resistance | 100MΩMin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Radical Runout | 0.02Max.(450g-load) |
| Axial Runout | 0.08Max.(450g-load) |
Specifications:| Model | Angle(°) | Voltage(V) | Current(A) | Resistance (Ω) | Inductance (mH) | Holding Torque (Kg.cm) | Dentent Torque(g.cmMax) | Rotor Inertia (g.cm²) | Length (mm) | No. of wires | Weight(Kg) |
| SM57STM41-2004 | 1.8 | 2 | 2 | 1 | 1.2 | 3.2 | 210 | 120 | 41 | 4 | 0.45 |
| SM57STM41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 210 | 120 | 41 | 4 | 0.45 |
| SM57STM41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 210 | 120 | 41 | 4 | 0.45 |
| SM57STM51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 360 | 275 | 51 | 4 | 0.65 |
| SM57STM51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 360 | 275 | 51 | 4 | 0.65 |
| SM57STM51-2006 | 1.8 | 2 | 2 | 1 | 1.6 | 7 | 360 | 275 | 51 | 6 | 0.65 |
| SM57STM56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 400 | 300 | 56 | 4 | 0.7 |
| SM57STM56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 400 | 300 | 56 | 4 | 0.7 |
| SM57STM56-2006 | 1.8 | 3.6 | 2 | 1.8 | 2.8 | 9 | 400 | 300 | 56 | 6 | 0.7 |
| SM57STM64-3004 | 1.8 | 3.9 | 3 | 1.3 | 2.2 | 15 | 500 | 380 | 64 | 4 | 0.8 |
| SM57STM76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 680 | 480 | 76 | 4 | 1 |
| SM57STM76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 680 | 480 | 76 | 4 | 1 |
| SM57STM76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 680 | 480 | 76 | 4 | 1 |
| SM57STM82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 700 | 510 | 82 | 4 | 1.2 |
| SM57STM82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 700 | 510 | 82 | 4 | 1.2 |
| SM57STM100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 1000 | 680 | 100 | 4 | 1.4 |
| SM57STM112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| SM57STM112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |

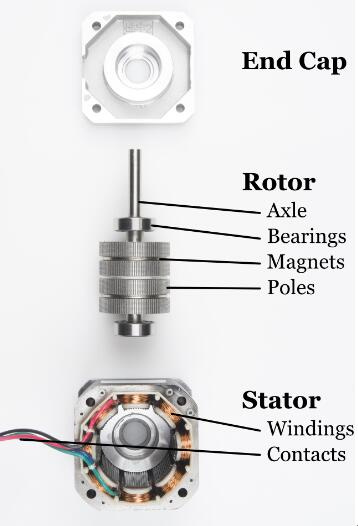

Structure of stepper motor:
Applications:
Widely applied in computer periphery, telecommunications, machine tools, textile machinery, automation office equipment, food machinery, CNC machnine, printer, medical equipment, etc.
Transactions:
60% of our business are conducted on OEM basis.
We have an office in India, can serve India and nearby market immediately.
Looking forward direct consumers or wholesalers. We can manufacture with your specific requiremets.
Shipment:
The motors can be shipped by air or sea.
Express services: Fedex, DHL, UPS, TNT, EMS, etc.
OUR PRODUCTS RANGE FROM NEMA 8 TO NEMA 52! IF THERE ARE ANY PRODUCTS YOU ARE INTERESTED, PLEASE FEEL FREE TO LET ME KNOW. WE'LL QUOTE OUR FAVOURABLE PRICES!
Changzhou Soya Motor control factory specialized in manufacturing stepper motor, servo motor and drive control. Established in 2002, our company has over ten years of R&D and manufacturing experience. We emphasize on the cultivating of employees' mortality and skills. Now that we have skilled technicians, have better R&D and production capacity.
Our main products are 2phase, 3phase and 5phase hybrid stepper motor, with the frame size from 42mm to 130mm. Frame size of servo motor is from 60mm to 180mm. They are widely used in auto equipment, such as CNC machine, printer, medical equipment, textile machinery, engraving machine, etc.
With complete set of automatic production lines and testing equipment, our products have passed ISO9001 quality system certification and got CE certificate. With the technical and management advantage, excellent quality, we build up long term and stable relationship with domestic enterprises. At the same time, we expand our overseas market in Italy, Korea, India and so on. Currently, over half of our business is conducted on OEM.
Adhere to scientific and technological innovation, the spirit of refinement and pragmatism, to provide excellent service; We look forward to build up new business relationships with you.
