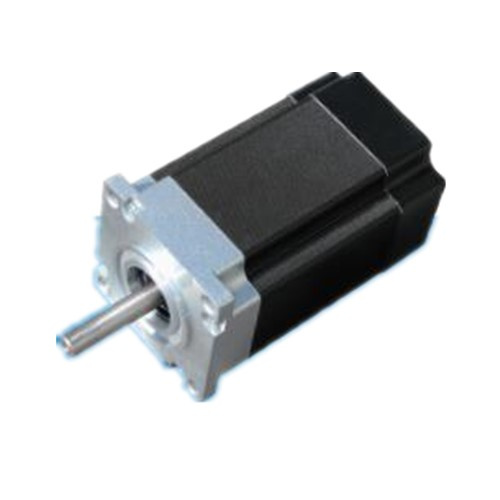

NEMA 23 36V 23W 4000rpm BLDC Brushless DC Motor

Name: NEMA 23 36V 23W 4000rpm BLDC Brushless DC Motor
Brand: all-electronics-online.com
SKU: 835510315
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 20-50/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SY57WXB03-17
Hall Effect Angle:	120 Degree Electrice Angle
Frame Size:	57 mm
Holding Torque:	15 N
Stepping Accuracy:	-5%~+5%
Insulation Resistance:	100m Omega; 500VDC
Insulation Class:	B
Temperature Rise:	80kmax
Phase Number:	3
Axial Clearance:	0.08mm Max (450g-Load)
Body Length:	96 mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Magnetic-Electric
Certification:	Ce
Brand:	Soya

Product Description

1. Three phase phase stepper motor;
2. Made of anti-high temperature permanent magnet and high quality cold-rolled steel sheet;
3. CNC machine engraved axle, high quality bearing;
4. Alluminium alloy cap, plastic insulation, copper wires auto-wired.
5. Featured by its low noise, low vibration, low heating, of stable performance;
6. Excellent internal damping, can be used by different industries and under any circumstances, long lifespan.

Parameters:

Item	Parameter
Step Angel	1.2º ±5%
Phase Number	3
Step Angel Accuracy	±5%
Temperature Rise	80ºC Max
Ambient Temperature	-20ºC~+50ºC
Insulation Resistance	100MΩMin.500VDC
Dielectric Strength	500VAC for one minute
Radical Runout	0.02Max.(450g-load)
Axial Runout	0.08Max.(450g-load)
Insulation Class	Class B
Rated Voltage	24 V
Rated Speed	3000 rpm
No load speed	4400rpm
No load current	1 A max
Rated Current	8.1A
Rated Torque	0.45Nm
Max Torque	1.1NM
Torque Constant	0.053NM/A
Body Length	96 mm
Axial Load	15N
Radial Force	75N
Weight	1 Kg

Applications:
Widely applied in computer periphery, telecommunications, machine tools, textile machinery, automation office equipment, food machinery, CNC machnine, printer, medical equipment, etc.

Transactions:
60% of our business are conducted on OEM basis.
We have an office in India, can serve India and nearby market immediately.
Looking forward direct consumers or wholesalers. We can manufacture with your specific requiremets.

Shipment:
The motors can be shipped by air or sea.
Express services: Fedex, DHL, UPS, TNT, EMS, etc.

Product Series:
Our Stepper motor ranged from Nema 8 to Nema 52 with different length of the body; and can be equipped with suitable drivers or brake/gear box. Also, we manufacture upon customers' special requirement.

IF THERE ARE ANY PRODUCTS YOU ARE INTERESTED, PLEASE FEEL FREE TO LET ME KNOW. WE'LL QUOTE OUR FAVOURABLE PRICES!

Changzhou Soya Motor control factory specialized in manufacturing stepper motor, servo motor and drive control. Established in 2002, our company has over ten years of R&D and manufacturing experience. We emphasize on the cultivating of employees' mortality and skills. Now that we have skilled technicians, have better R&D and production capacity.

Our main products are 2phase, 3phase and 5phase hybrid stepper motor, with the frame size from 42mm to 130mm. Frame size of servo motor is from 60mm to 180mm. They are widely used in auto equipment, such as CNC machine, printer, medical equipment, textile machinery, engraving machine, etc.

With complete set of automatic production lines and testing equipment, our products have passed ISO9001 quality system certification and got CE certificate. With the technical and management advantage, excellent quality, we build up long term and stable relationship with domestic enterprises. At the same time, we expand our overseas market in Italy, Korea, India and so on. Currently, over half of our business is conducted on OEM.

Adhere to scientific and technological innovation, the spirit of refinement and pragmatism, to provide excellent service; We look forward to build up new business relationships with you.
