| Prod Model: |
57BYGH Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Series: |
57 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
27mm / 1.06 in (Customizable) |
| Shaft: |
Plain Shaft(Customizable) |
| Connectors: |
Plug-in or Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
2 Phase-8 Parts |
| Brand: |
Shengyang |
Product Description

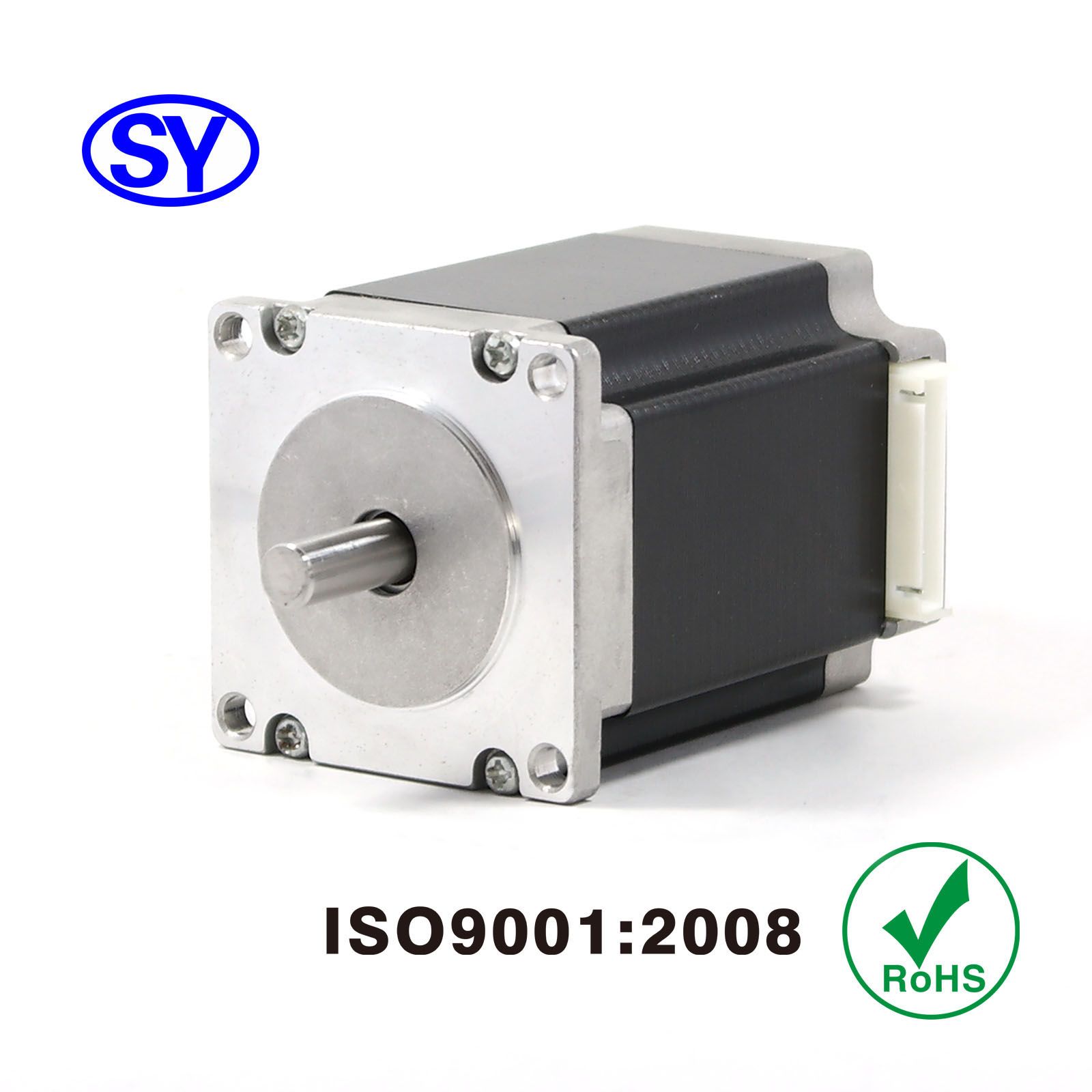

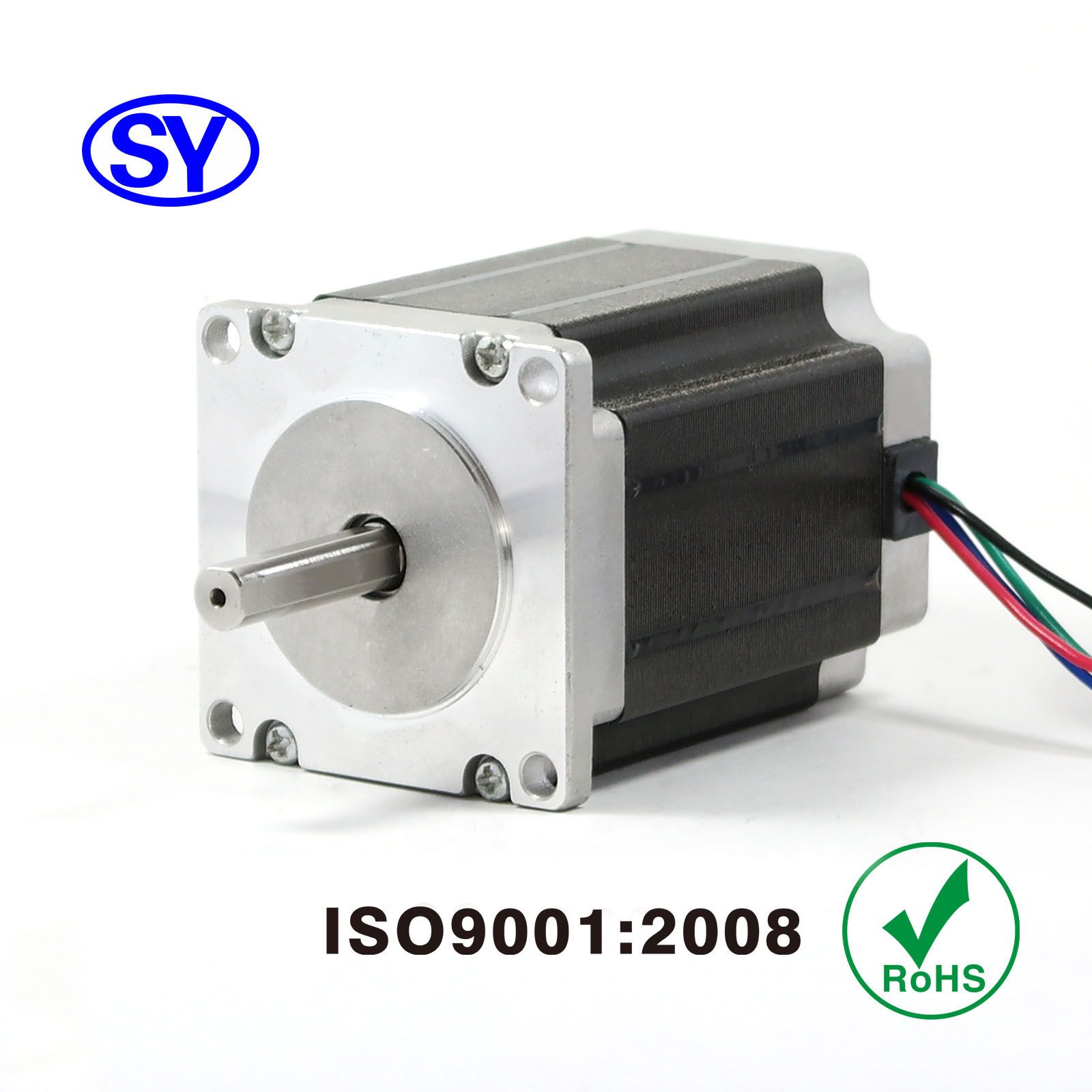

1.48 Nm 57 Mm Step Electrical Motor for CCTV, Security MonitorFeatures:High Torque
High Accuracy
Smooth MovementProducts Description
2. Specifications:
Shaft End Length: 27 mm (1.08 in)
Connectors: Connectors, Lead Wires
Step Angle: 1.8°± 5% full step, no load
Ambient Temperature: -24 ºC- +60 ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100 mΩ 500 V DC
Dielectric Strength: 600 V AC for 1S, leakage current less than 1 mA
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
3.Payment term: T/T in advance, 30% deposit, 70% balance before shipment.

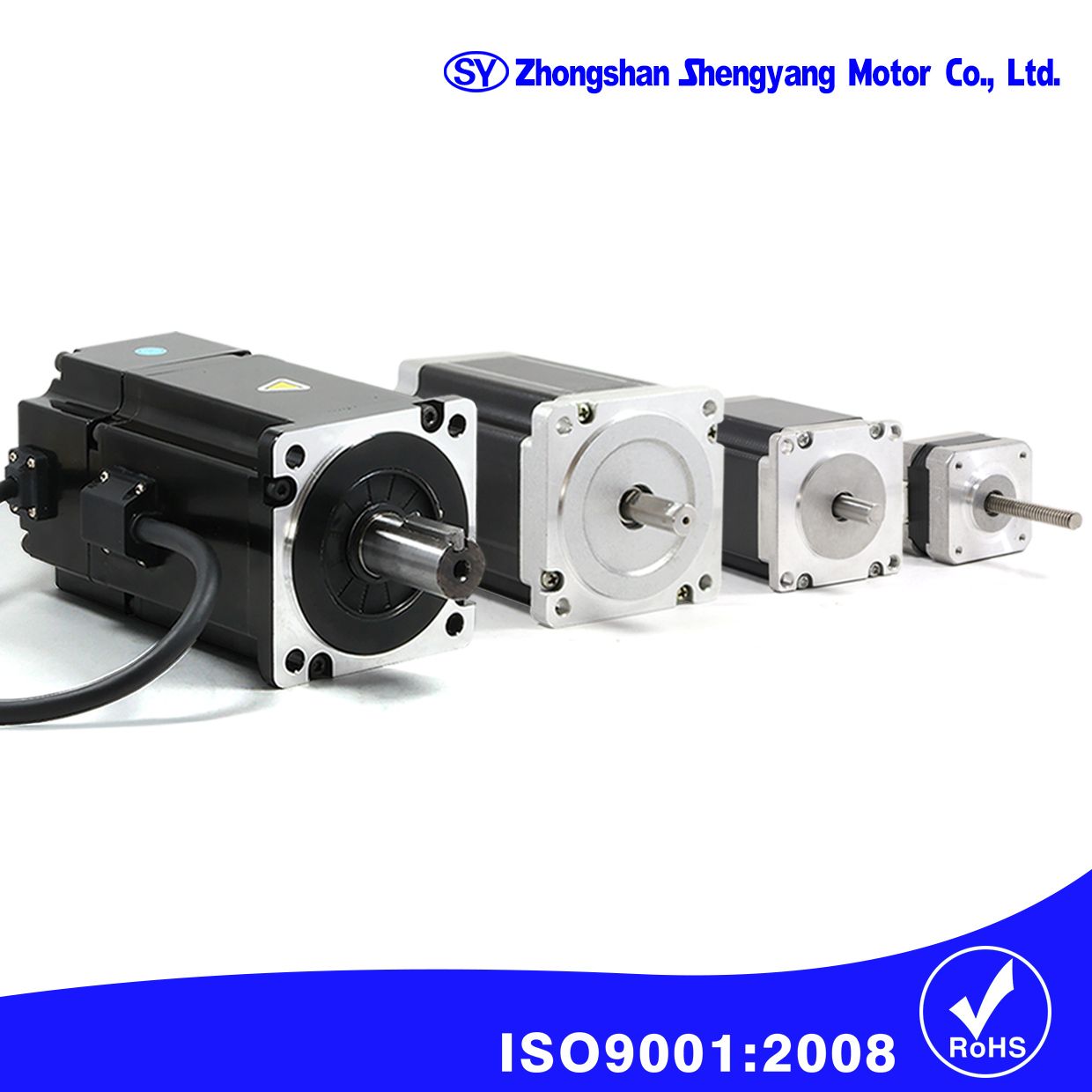

About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all products can be customized, contact us and talk details.
Mobile: (+86) 13631101993
Web: www.shengyangmotor.comSeries
&
Length | Model
Number | Holding
Torque | Rated Voltage /
Rated Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | Mh |
57BYGH0
31 mm
(1.23 in) | 57BYGH010-B-27 | 840 119 | 1.2 | 10 | 23 |
57BYGH1
52 mm
(2.05 in) | 57BYGH103-1 | 850 120 | 8/1.0 | 8 | 17 |
57BYGH2
56 mm
(2.21 in) | 57BYGH220-B-21 | 1240 175 | 2 | 2.4 | 5.8 |
57BYGH3
49 mm
(1.93 in) | 57BYGH301-A-27 | 1020 145 | 0.8 | 10 | 23 |
57BYGH4
49mm
(1.93 in) | 57BYGH401-B-27 | 900 128 | 0.6 | 8 | 33 |
57BYGH5
77 mm
(3.04 in) | 57BYGH510-C-31 | 930 132 | 1.2 | 0.76 | 3.3 |
57BYGH6
65 mm
(2.56 in) | 57BYGH601-C-22 | 1260 178 | 1.5 | 3.5 | 5.7 |
57BYGH7
98 mm
(3.86 in) | 57BYGH701-C-31 | 1380 195 | 1.5 | 1 | 3 |
57BYGH9
46 mm
(1.82 in) | 57BYGH910-B-27 | 1480 210 | 2 | 8.5 | 26 |
