NEMA 23 High Torque Bipolar Closed Loop Stepper Motor Qucik Response and Perfect Promotion Acceleration From China

Name: NEMA 23 High Torque Bipolar Closed Loop Stepper Motor Qucik Response and Perfect Promotion Acceleration From China
Brand: all-electronics-online.com
SKU: 809357045
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	US $ 100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Step Angle:	1.8
Frame Size:	57*76
Current:	4.2A
Resistance:	0.5Ω
Inductance:	1.8mh
Holding Torque:	2.0n .M
Motor Body Length:	76mm
Lead Wires:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Operate Mode:	Driver
Certification:	Ce
Brand:	Jss

Product Description

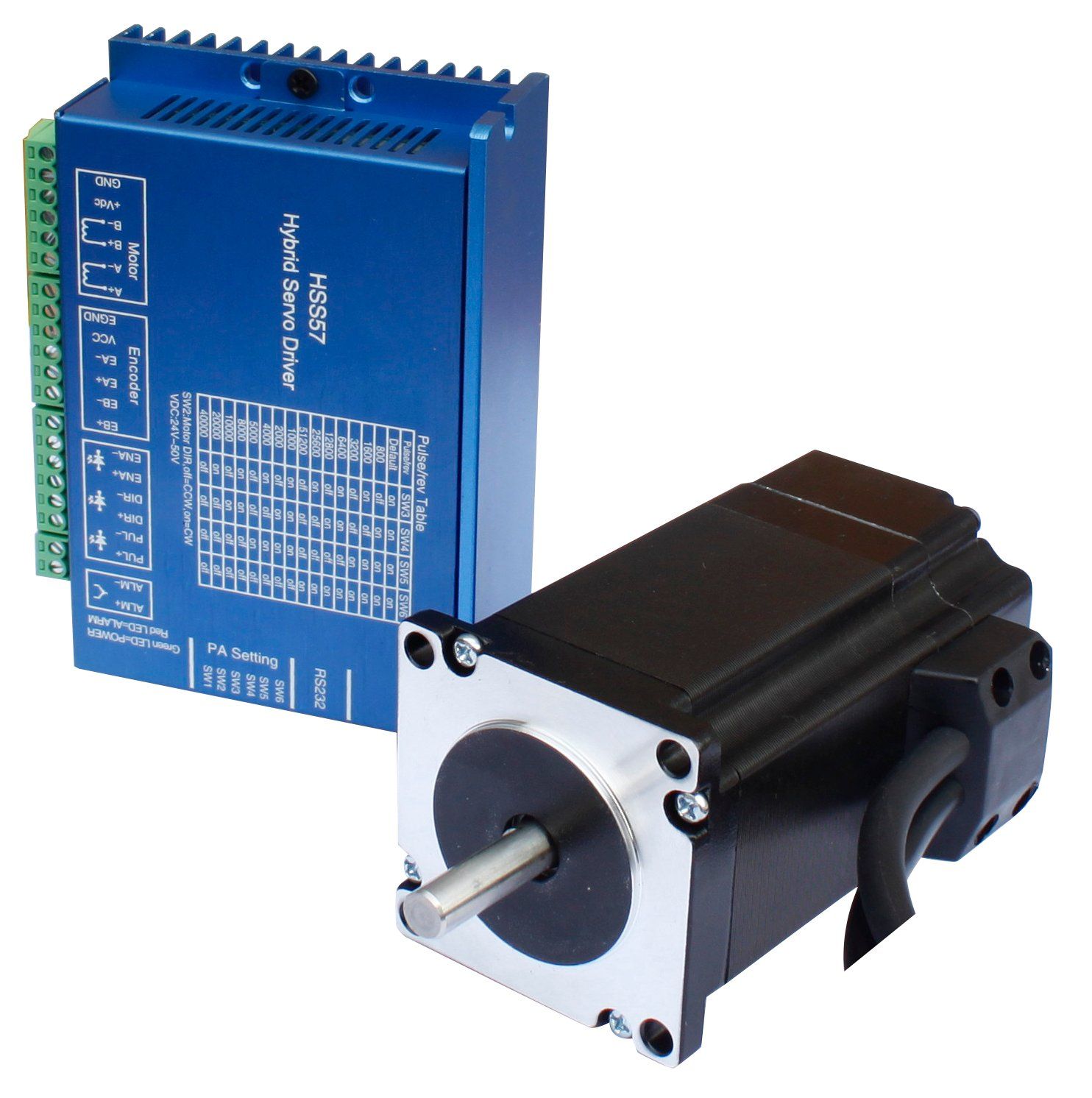

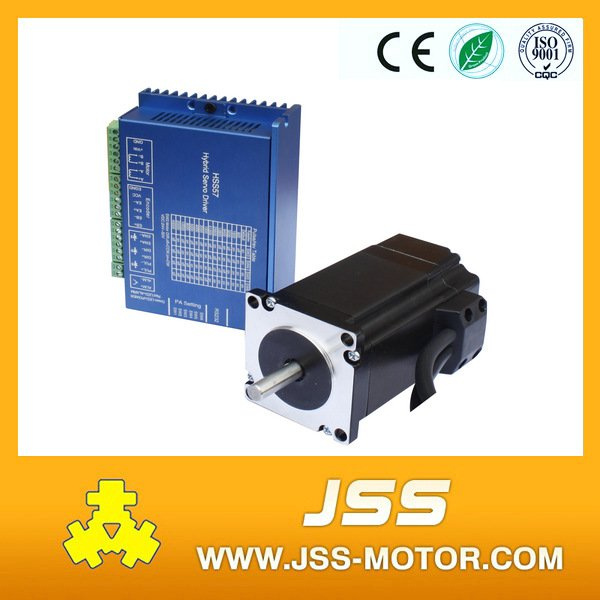

Nema 23 closed loop stepper motor:
Features:
1. Higher speed than open loop stepper motor
2. Higher torque at high speed than open loop stepper motor.
3. More accuracy than open loop stepper motor, avoid the problem losing steps.
4. Low cost, better performance.

Description:
Step Angle  Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength:  500VAC for one minute
Shaft Radial Play:  0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)
Encoder lines: 1000 lines

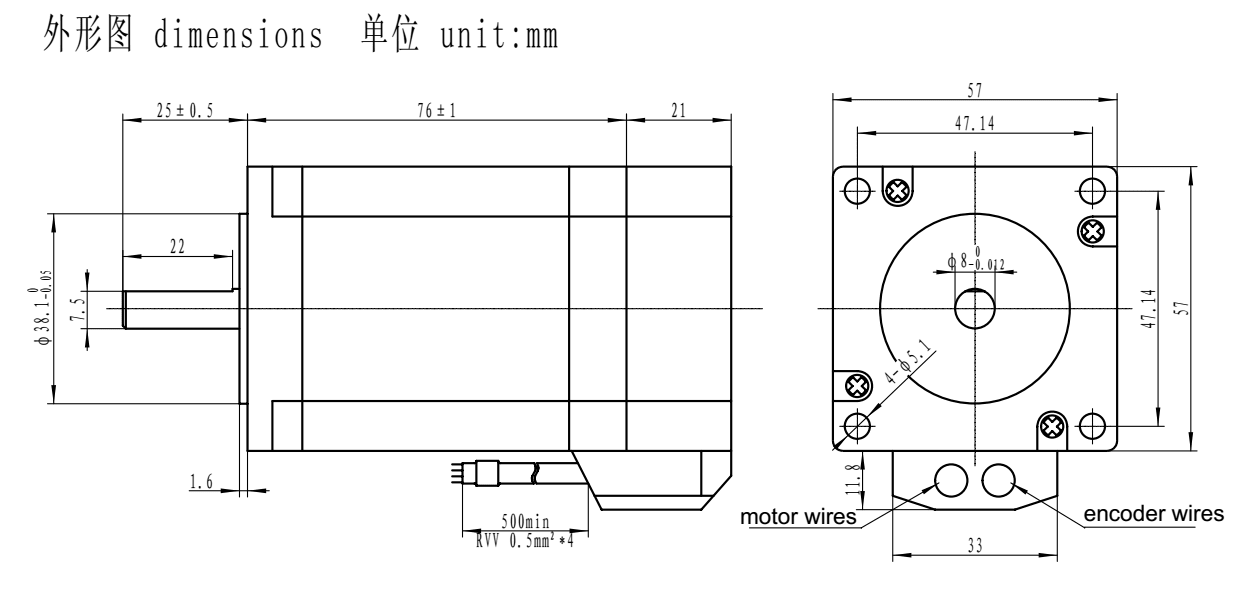

Dimensions

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake,  drivers for all the motors, and closed loop stepper motors and drivers.  We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

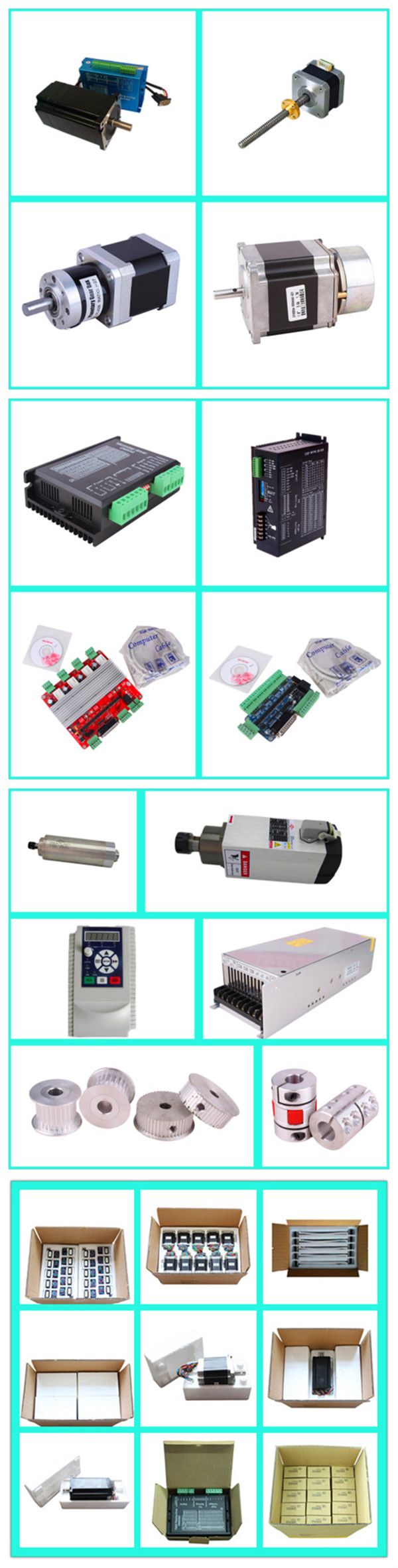

PHOTOS FOR OUR PRODUCTS:

Application:
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.
