NEMA 23 Motor Length 56mm Stepper Motor for CNC Rounter

Name: NEMA 23 Motor Length 56mm Stepper Motor for CNC Rounter
Brand: all-electronics-online.com
SKU: 723545545
Availability: InStock
Rating: 4.7 (94 reviews)

Price:	US $ 5-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK57HY41-1106,57HY51-0806,57HY56-1206,76HY76-1506
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8 Degree
Phase:	2 Phase
NEMA Size:	23NEMA (57mm)
Motor Weight:	0.54 Kg
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Jk
Operate Mode:	Driver
Certification:	CE and RoHS

Product Description

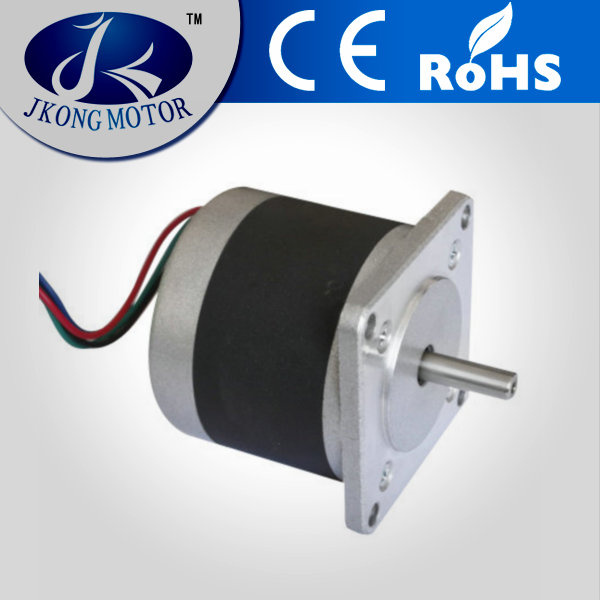

1.8° 57mm 2phase Round hybrid stepper motor NEMA23 / NEMA23 round stepping motor/ 2 phase bipolar NEMA23 step motor/ unipolar 57mm stepping motor with CE

Descrition:

NEMA23 stepping motor, 57mm round stepper motor.
1.5N. M Stepper motor, high torque stepper motor with 57mm size.
1.8N. M stepping motor

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor,
Advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.

Matching Stepper motor Driver: JK1545, JK0230

WHY YOU CHOOSE US:

We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd

High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.

Believe that we will do our best!

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK57HY41-1106	1.8	41	1.1	3.6	3.6	2.88	6	180	57	0.18
JK57HY41-0406	1.8	41	0.4	30	30	2.88	6	180	57	0.18
JK57HY41-1564	1.8	41	1.56	1.8	3.6	4	4	180	57	0.18
JK57HY51-0856	1.8	51	0.85	7.1	9	4.97	6	350	110	0.35
JK57HY51-0426	1.8	51	0.42	29	36	4.97	6	350	110	0.35
JK57HY51-2804	1.8	51	2.8	0.85	2.1	6.9	4	350	110	0.35
JK57HY56-1206	1.8	56	1.2	5	8	6	6	420	135	0.42
JK57HY56-0606	1.8	56	0.6	20	32	6	6	420	135	0.42
JK57HY56-2554	1.8	56	2.55	1.1	3.6	8.4	4	420	135	0.42
JK57HY76-1506	1.8	76	1.5	3.6	6	9	6	720	200	0.72
JK57HY76-0686	1.8	76	0.68	17.7	30	9	6	720	200	0.72
JK57HY76-3304	1.8	76	3.3	0.85	3	12.5	4	720	200	0.72

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
