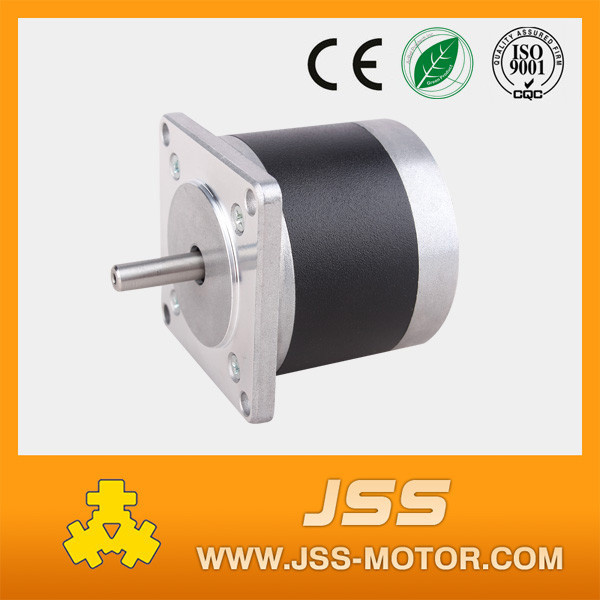

NEMA 23 Round Shape Stepper Motor

Name: NEMA 23 Round Shape Stepper Motor
Brand: all-electronics-online.com
SKU: 771730145
Availability: InStock
Rating: 4.6 (109 reviews)

Price:	US $ 12.5-16/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HY76-3004
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8
Frame Size:	57mm*57mm
Current:	3.0A
Resistance:	1.3ohm
Inductance:	3.5mh
Holding Torque:	12kg.Cm
Motor Body Length:	76mm
Lead Wiring:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Application:	Automatic Machine
Operate Mode:	Driver
Certification:	CE
Brand:	Jss

Product Description

Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.
Product Description:

Nema 23 round shape stepper motor

Technique parameter:

Step Angle	1.8°
Step Angle Accuracy	±5% (full step,no load)
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80°CMax.(rated current,2 phase on)
Ambient Temperature	-10°C-+50°C
Insulation Resistance	100MΩMin. 500VDC
Dielectric Strength	500VAC for one minute
Shaft Radial Play	0.06Max.(450 g-load)
Shaft Axial Play	0.08Max.(450 g-load)

57HY Motor Name List(High Torque)

Model No	Current/Phase	Resistance/Phase	Inductance/Phase	Holding Torque		#Of Leads	Rotor Inertia	Weight	Length
Model No	A	Ω	mH	Oz-in	Kg-cm		g-cm2	Kg	mm
57HY51-1004	1.00	4.2	12.0	97	7.0	4	110	0.60	51	Φ6.35*21
57HY51-2004	2.00	1.3	4.5	90	6.5	4	110	0.65	51	Φ6.35*21
57HY56-0804	0.8	4.6	12	90	6.5	4	135	0.65	56	Φ6.35*21
57HY56-1504	1.5	2.4	6.8	114	8.2	4	135	0.65	56	Φ6.35*21
57HY56-2406	2.4	1	1.6	86	6.2	6	135	0.65	56	Φ6.35*21
57HY76-1506	1.5	3.6	6	167	12	6	200	0.95	76	Φ6.35*21
57HY76-3004	3	1.3	3.5	167	12	4	200	0.95	76	Φ6.35*21
57HY76-4208	4.2	2.5	4.5	111	8	6	200	0.95	76	Φ6.35*21

We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
And We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.
