NEMA 23 Stepper Motor 112mm 4.2A 1.8degree Ce RoHS ISO 3D Printer

Name: NEMA 23 Stepper Motor 112mm 4.2A 1.8degree Ce RoHS ISO 3D Printer
Brand: all-electronics-online.com
SKU: 838128565
Availability: InStock
Rating: 4.5 (102 reviews)

Price:	US $ 15-30/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HS8940
Current:	4.2A
Holding Torque:	28kg.Cm
Step Angle:	1.8 Degree
Rated Volage:	3.78V
Resistance/Phase:	0.9Ω
Inductance/Phase:	3.8mh
Rotor Inertia:	800g.Cm2
Weight:	1.4kg
Detent Torque:	1200g.Cm
Motor Length:	112mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	2 Phase
Type:	Stepper Motor
Certification:	Ce
Brand:	Sjie

Product Description

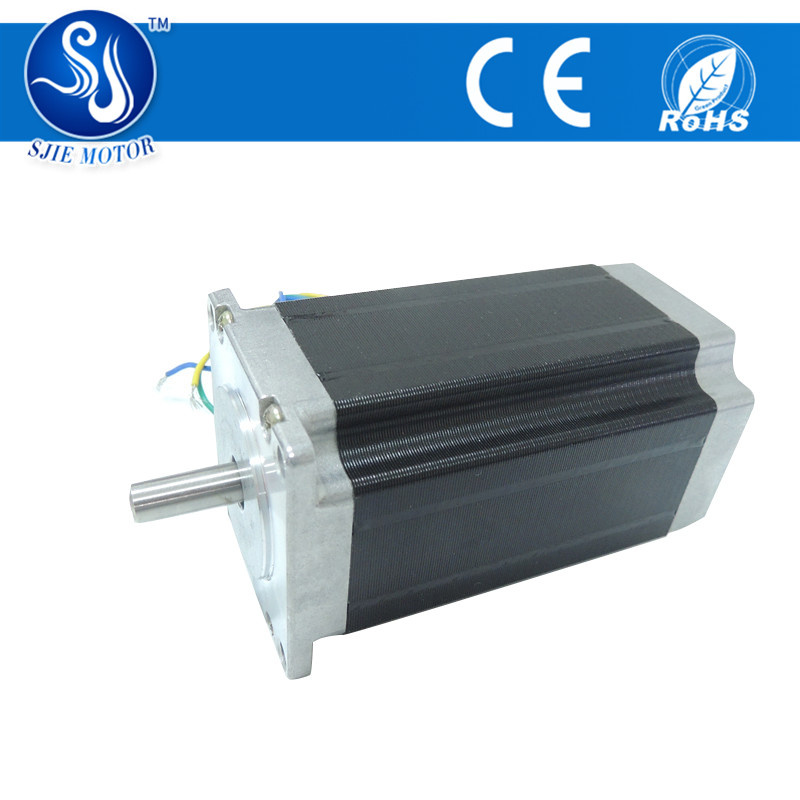

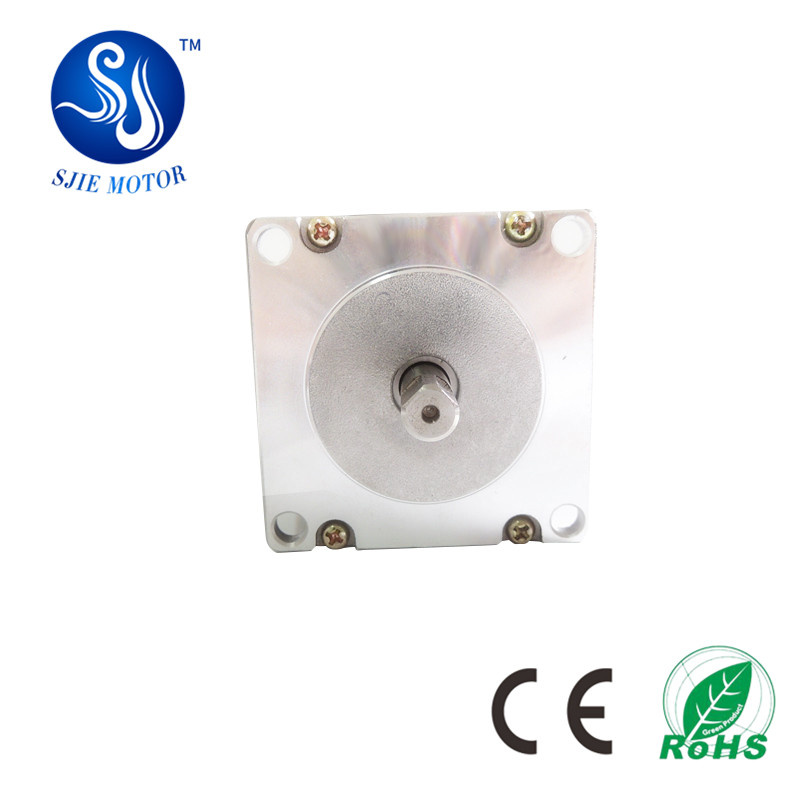

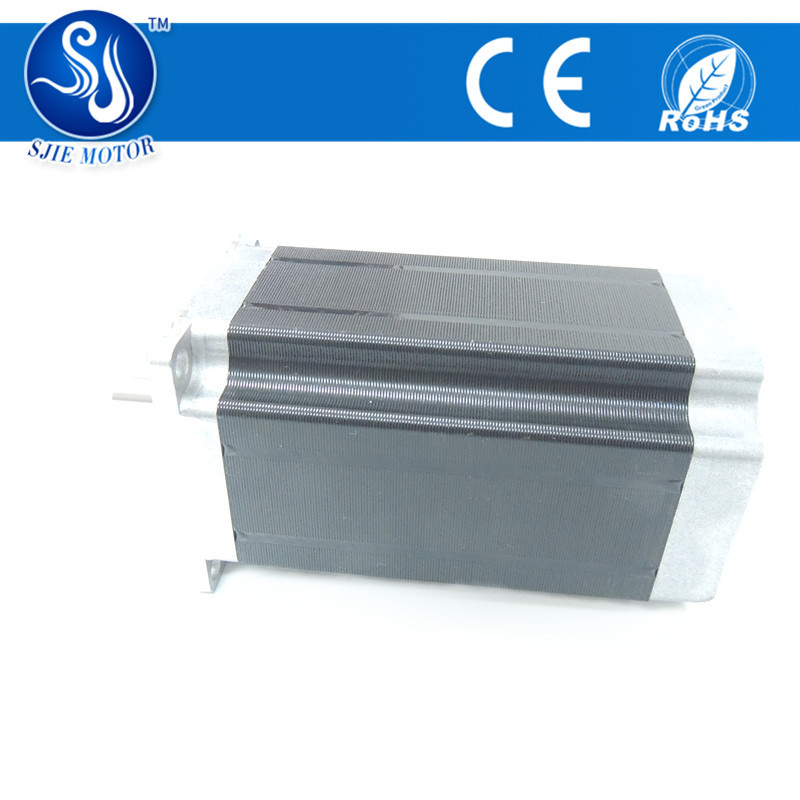

Products photos:

Product Description:

1.8degree Size 112mm. High Torque Hybrid stepper motor.

112mm size 57mm stepper motor,

NEMA23 57mm length 112mm stepping motor,

2 phase stepper motor

Stepper motor 112mm size

Hybrid Stepper Motors

1) We can develop customer design version

Specifications:

item	Specification
Temperature Rise	80°C Max
Insulation Resistance	100MΩ Min., 500VDC
Step Angle Accuracy	±5%(full step,no load)
Resistance Accuracy	±10%
Amibent Temperature	-20°C~+50°C
Inductance Accuracy	±20%
Dielectric Strength	500VAC for one minute

Electrical Specific
Electrical Specific
Series	Step	Motor	Rated	Phase	Phase	Holding	Detent	Rotor	Lead	Motor
Model	Angle Length	Current	Current	Resistance	Inductance	Torque	Torque	Inertia	Wire	Weight
	(° )	(mm)	(A)	(Ω)	(mH)	(N.cm Min)	(N.cm Max)	(g.cm²)	(No.)	(g)
57HS1805	1.8		1.0	5.2	5.5	40	2.5	150	6	470
57HS1820	1.8	41	2.0	1.2	2.5	55	2.5	150	4	470
57HS2206	1.8	45	0.62	12.0	26.0	80	2.8	190	4	520
57HS2225	1.8	45	2.5	1.0	2.2	80	2.8	190	4	520
57HS2825	1.8	51	2.5	1.2	3.2	110	2.8	190	4	520
57HS28306	1.8	51	0.8	6.8	9.2	62	3.0	230	6	590
57HS32156	1.8	56	1.5	3.2	5.5	90	3.5	280	6	590
57HS3225	1.8	56	2.5	1.3	4.2	110	3.5	280	4	680
57HS3230	1.8	56	3.0	0.8	2.4	110	3.5	280	4	680
57HS4030	1.8	64	3.0	0.8	2.3	150	5.0	380	4	850
57HS53156	1.8	76	1.5	4.5	7.8	140	6.0	440	6	1050
57HS5325	1.8	76	2.5	1.8	6.5	170	6.0	440	4	1050
57HS5330	1.8	76	3.0	1.0	3.5	170	6.0	440	4	1050
57HS5930	1.8	81	3.0	1.1	3.6	190	6.0	440	4	1150
57HS7930	1.8	100	3.0	1.4	5.5	250	10.0	680	4	1250
57HS8930	1.8	112	3.0	1.6	6.8	280	12.0	800	4	1400
57HS8940	1.8	112	4.2	0.9	3.8	280	12.0	800	4	1400
*Note:We can manufacture products according to customer's requirements.

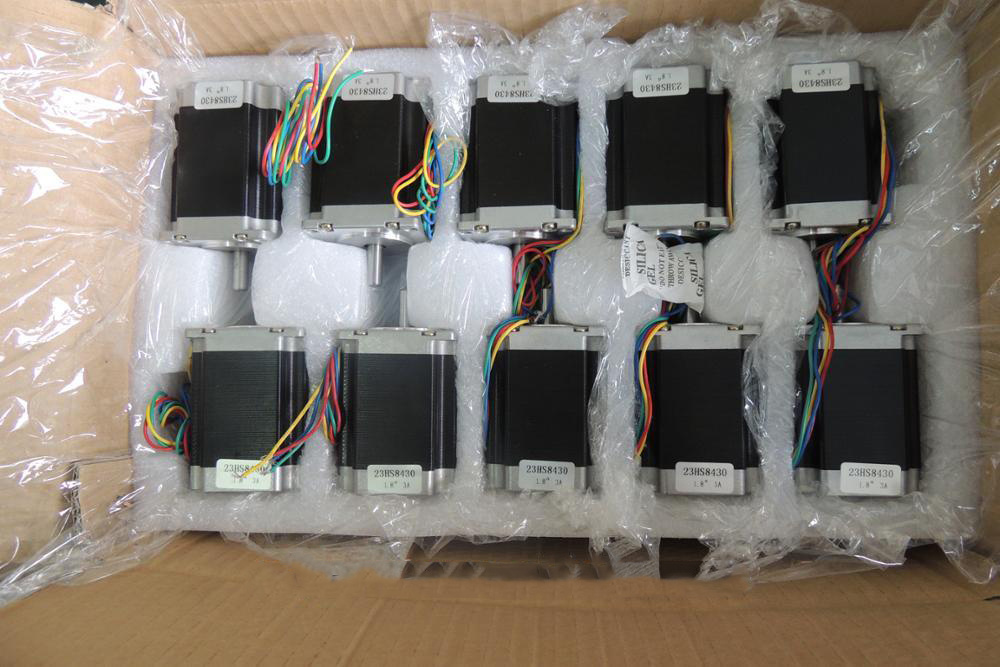

About our Packing:

Except 2 phase and 3 phase stepper motor , we also supply close loop stepper motor , planetary gear stepper motor , hybrid stepper motor driver , power supply and so on .

if you need more information , please contact with us , our contact information is as follows.

Changzhou Sujie Motor Co.,Ltd

Contact Person : Ms Sue (Sales manager)

Tel: 0086 519 88779021
Mob:0086 15861835316

If you need instant massaging and real-time conversation, please note information when adding friends. Welcome to consult!

We can develop customer design version .More Quantity . more discount !!!

Established in 2001, Changzhou Sujie Motor Co., Ltd is a manufacturer and trader specialized in the research, development and production of stepper motor. Company is located in No. 101, Qinxin Industrial Park, Wujin District, Changzhou, Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the word.

Half of our production is currently exporting worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
