NEMA 23 Stepper Motor with Encoder and Gearbox, One Set Type

Name: NEMA 23 Stepper Motor with Encoder and Gearbox, One Set Type
Brand: all-electronics-online.com
SKU: 771605265
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	US $ 88-100/Set
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HSE2N-D25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8
Frame Size:	57mm X 57mm
Current:	4.0A
Resistance:	0.5
Inductance:	1.8mh
Holding Torque:	2n.M
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Application:	CNC
Operate Mode:	Driver
Certification:	CE
Brand:	Jss

Product Description

nema 23 stepper motor with encoder and gearbox ,one set type

Features:

1. Higher speed than open loop stepper motor
2. Higher torque at high speed than open loop stepper motor.
3. More accuracy than open loop stepper motor, avoid the problem losing steps.
4. Low cost, better performance.

Description:
Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)
Encoder lines: 1000 lines

nema 34 easy-servo hybrid model :

Series	Model	Step Angle	Current	Resistance	Inductance	Holding Torque	Length
Series	Model	Step Angle	A	±10% Ω	±20% mH	N.M	mm
nema23	57HSE2N-D25	1.8°	4	0.5	1.8	2	76
nema24	60HSE3N-D25		5	0.45	1.8	3	88
nema34	86HSE4N-BC38		6	0.45	3.7	4	82
	86HSE8N-BC38			0.44	3.7	8	118
	86HSE12N-BC38			0.45	5.2	12	156

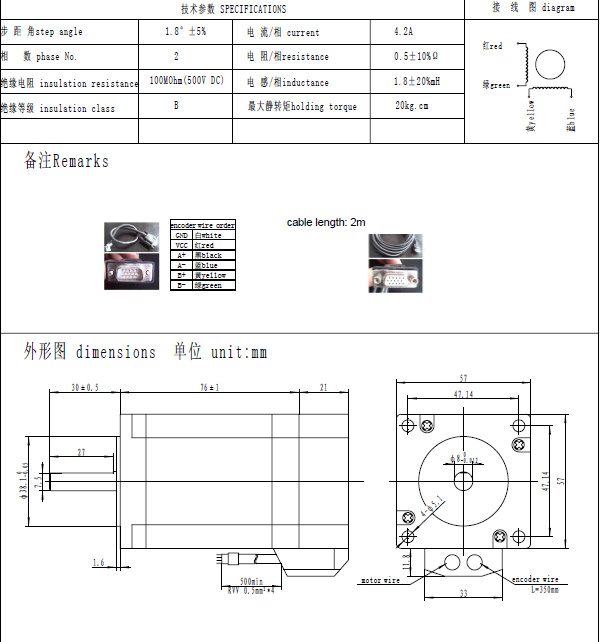

Dimensions and wiring diagram:

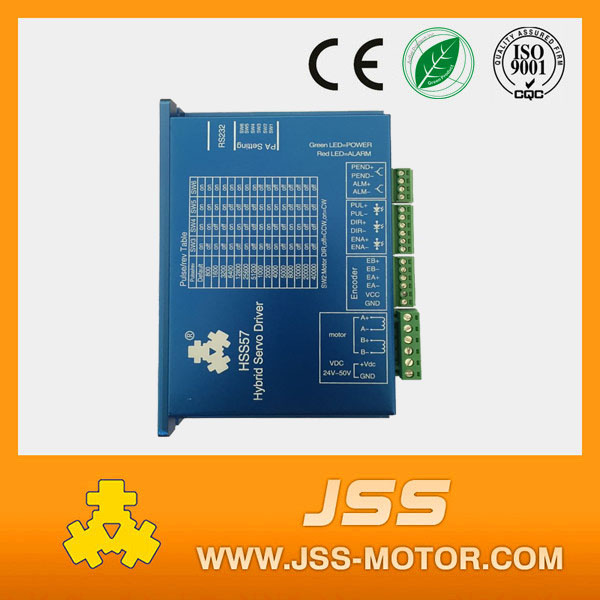

nema 23 suitful driver HSS57:

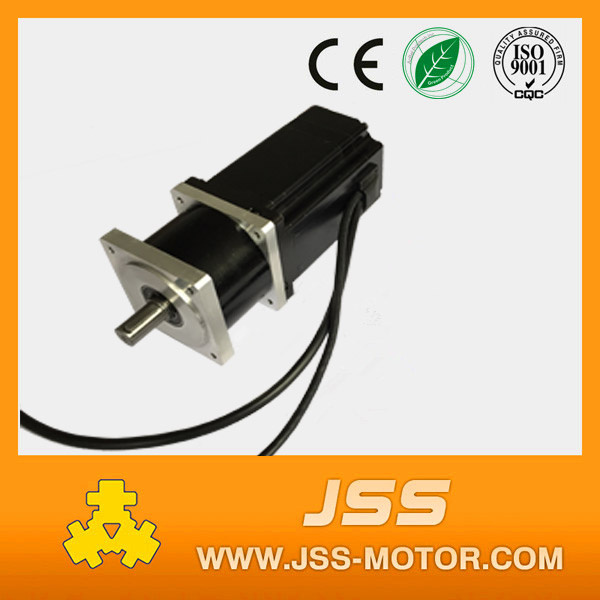

NEMA 23 Closed Loop Stepper Motor with Encoder

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.
