| Prod Model: |
57HSG76-3004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 |
| Frame Size: |
57mm X57mm |
| Current: |
3.0A |
| Resistance: |
3.5 |
| Inductance: |
1.4mh |
| Holding Torque: |
18kg.Cm |
| Motor Body Length: |
76mm |
| Lead Wires: |
4 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
CNC |
| Operate Mode: |
Driver |
| Certification: |
CE |
| Brand: |
Jss |
Product Description

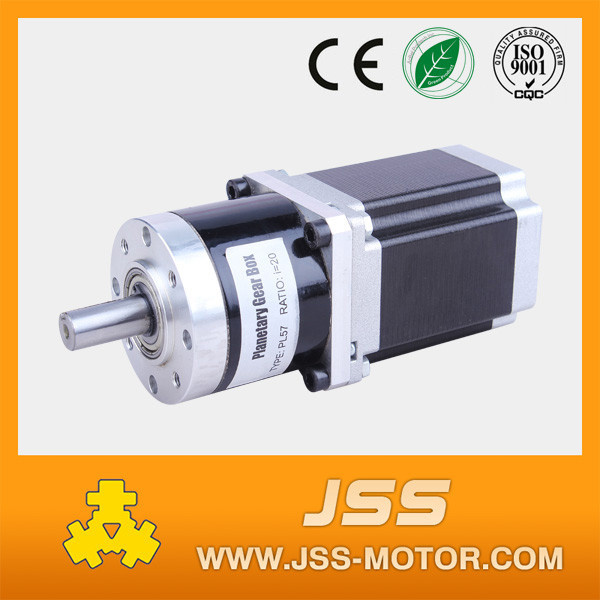

nema 23 stepper motor with gearbox ,reduction gear motor Product Description
We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.
1. NEMA 23 geared stepper motor, high performance, low heat, low virbration, low noise.
2. gear ratio can be different. You can choose the gear ratio you want.
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step,no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80ºCMax.(rated current,2 phase on) |
| Ambient Temperature | -10ºC+50ºC |
| Insulation Resistance | 100MΩMin. 500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.06Max.(450 g-load) |
| Shaft Axial Play | 0.08Max.(450 g-load) |

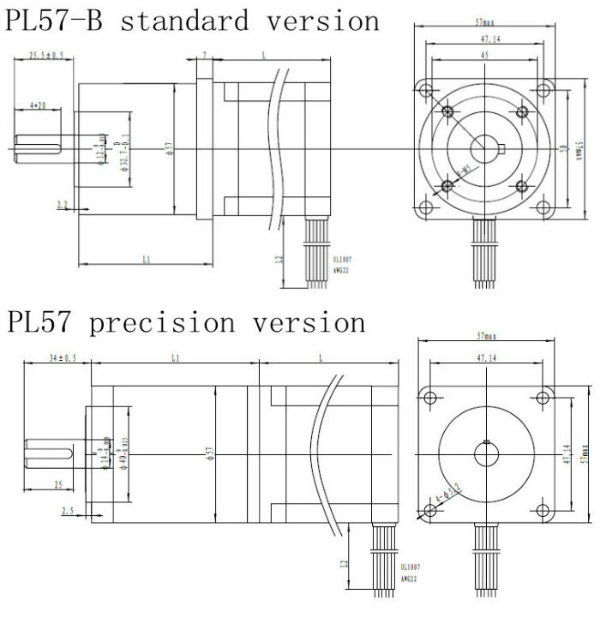

PL57-B Standard Gear Ratio:3.6:1, 4.25:1, 13:1, 15:1, 18:1, 47:1, 55:1, 65:1, 77:1PL75 Precision Gear Ratio:4:1, 5:1, 7:1, 9:1, 10:1, 16:1, 20:1, 25:1, 28:1, 35:1, 36:1, 40:1, 45:1, 49:1, 50:1, 63:1, 70:1, 81:1, 90:1, 100:1Planetary gearbox motor dimension:

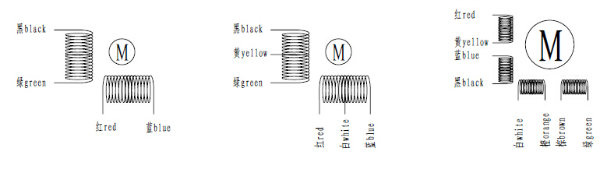

wiring diagram:
Tips:motor shaft can be customerized.
nema23 stepper motor data:| Model No | Current/Phase | Resistance/Phase | Inductance/Phase | Holding Torque | #Of Leads | Rotor Inertia | Length |
|
| A | Ω | mH | Oz-in | Kg-cm |
| g-cm2 | mm | mm |
| 57HS41-0404 | 0.4 | 35.5 | 52 | 76 | 5.5 | 4 | 120 | 41 | Φ6.35*21 |
| 57HS41-0306 | 0.3 | 30 | 30 | 42 | 3 | 6 | 120 | 41 | Φ6.35*21 |
| 57HS41-1004 | 1 | 5.4 | 9.5 | 76 | 5.5 | 4 | 120 | 41 | Φ6.35*21 |
| 57HS41-1504 | 1.5 | 1.8 | 3.3 | 69 | 5 | 4 | 120 | 41 | Φ6.35*21 |
| 57HS41-3004 | 3 | 0.8 | 0.6 | 76 | 5.5 | 4 | 120 | 41 | Φ6.35*21 |
| 57HS51-0604 | 0.6 | 35 | 12 | 133 | 9.6 | 4 | 275 | 51 | Φ6.35*21 |
| 57HS51-3004 | 3 | 2.4 | 0.8 | 100 | 7.2 | 4 | 275 | 51 | Φ6.35*21 |
| 57HS56-0404 | 0.4 | 15 | 60 | 111 | 8 | 4 | 300 | 56 | Φ6.35*21 |
| 57HS56-1004 | 1 | 7.5 | 15 | 142 | 9.8 | 4 | 300 | 56 | Φ6.35*21 |
| 57HS56-1504 | 1.5 | 2.8 | 8 | 125 | 9 | 4 | 300 | 56 | Φ6.35*21 |
| 57HS56-3004 | 3 | 1.2 | 0.8 | 125 | 9 | 4 | 300 | 56 | Φ6.35*21 |
| DW57HS64-1204 | 1.2 | 2.6 | 10 | 150 | 10.8 | 4 | 380 | 64 | Φ6.35*21 |
| DW57HS64-1508 | 1.5 | 3.5 | 5.5 | 164 | 11.8 | 8 | 380 | 64 | Φ6.35*21 |
| 57HS64-2004 | 2 | 1 | 4 | 181 | 13 | 4 | 380 | 64 | Φ6.35*21 |
| 57HS64-2506 | 2.5 | 1.3 | 2 | 167 | 12 | 6 | 380 | 64 | Φ6.35*21 |
| 57HS76-0404 | 0.4 | 38 | 150 | 250 | 18 | 4 | 480 | 76 | Φ6.35*21 |
| 57HS76-3004 | 3 | 3.5 | 1.4 | 250 | 18 | 4 | 480 | 76 | Φ6.35*21 |
| 57HS82-1004 | 1 | 10 | 44 | 306 | 22 | 4 | 520 | 82 | Φ6.35*21 |
| 57HS82-2506 | 2.5 | 2.2 | 3.8 | 250 | 18 | 6 | 520 | 82 | Φ6.35*21 |
| 57HS82-4506 | 4.5 | 0.7 | 1.2 | 250 | 18 | 6 | 520 | 82 | Φ6.35*21 |
| 57HS82-4004 | 4 | 0.55 | 2 | 271 | 19.5 | 4 | 520 | 82 | Φ6.35*21 |
| 57HS112-3004 | 3 | 2.4 | 10 | 444 | 32 | 4 | 700 | 112 | Φ8*21 |
| 57HS112-1508 | 1.5 | 6.2 | 14 | 361 | 26 | 8 | 700 | 112 | Φ8*21 |
| 57HS112-3504 | 3.5 | 0.7 | 3 | 361 | 26 | 4 | 700 | 112 | Φ8*21 |
| 57HS112-4004 | 4 | 1 | 4.6 | 389 | 28 | 4 | 700 | 112 | Φ8*21 |

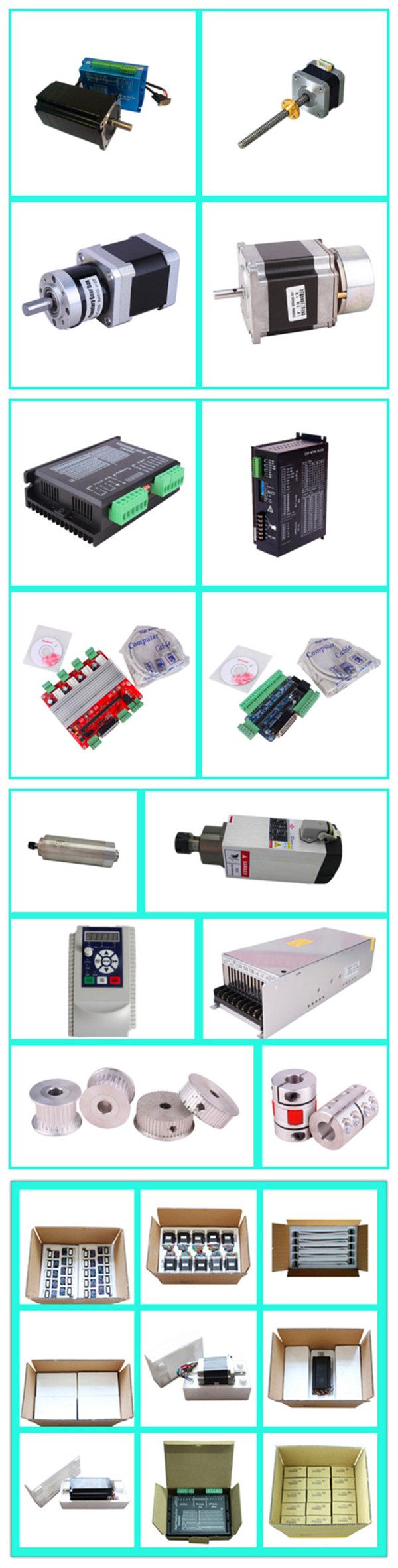

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.
