| Prod Model: |
NEMA34 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia |
| Frame Size: |
86mm*86mm |
| Body Length: |
68mm-155mm |
| Holding Torque: |
3.4-12.5n.M |
| Current: |
2.7-6.2A |
| Shaft Shape: |
Round/D-Cut/ Key Slot |
| Key Word: |
NEMA34 Stepper Motor |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Operate Mode: |
by Stepper Driver |
| Certification: |
Ce and RoHS |
| Brand: |
Jkong Motor |
Product Description

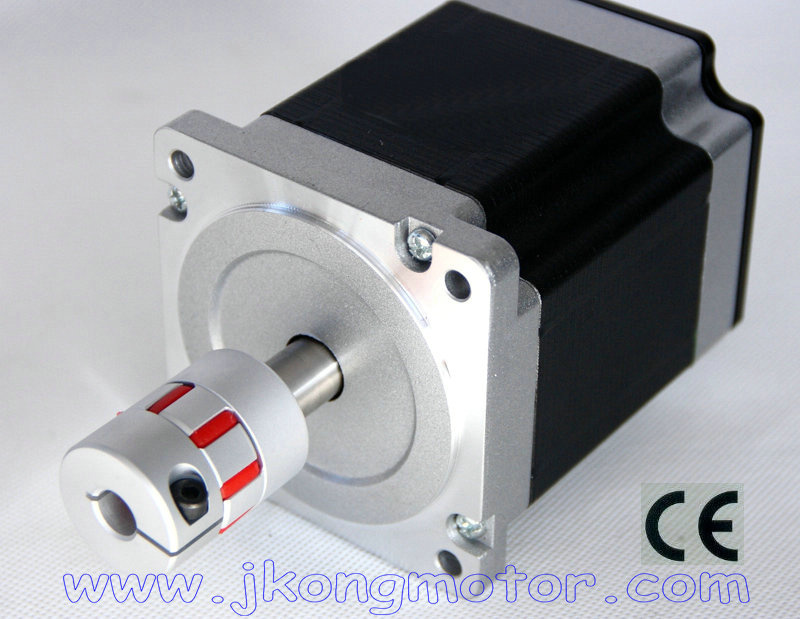

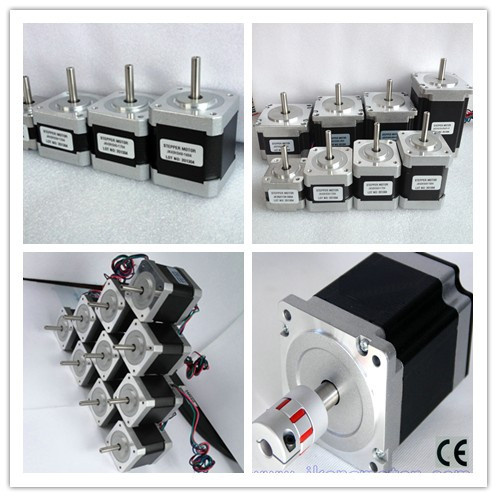

1.8° 86mm Hybrid Stepper Motor-NEMA34
Genaral Specification:Step Angle ------------------- 1.8° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 1800VAC for 1S 5mA
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 220N (20mm from the flange)Max. Axial force------------------- 60N
Electrical Specification: | Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( ° ) | (L)mm | A | Ω | mH | N. m | No. | Kg. cm | g. cm | Kg |
| JK86HS66-5904 | 1.8 | 66 | 5.9 | 0.28 | 1.7 | 3.4 | 4 | 0.8 | 1000 | 1.7 |
| JK86HS66-2808 | 1.8 | 66 | 2.8 | 1.4 | 3.9 | 3.4 | 8 | 0.8 | 1000 | 1.7 |
| JK86HS78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
| JK86HS78-4208 | 1.8 | 78 | 4.24 | 0.75 | 3.4 | 4.6 | 8 | 1.2 | 1400 | 2.3 |
| JK86HS97-4008 | 1.8 | 97 | 4 | 0.98 | 4.1 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86HS97-5008 | 1.8 | 97 | 5 | 0.65 | 2.4 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86HS97-2708 | 1.8 | 97 | 2.7 | 1.9 | 8.6 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86HS115-6004 | 1.8 | 115 | 6 | 0.6 | 6.5 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
| JK86HS115-4208 | 1.8 | 115 | 4.2 | 0.9 | 6 | 8.7 | 8 | 2.4 | 2700 | 3.8 |
| JK86HS126-4008 | 1.8 | 126 | 4 | 1.3 | 5.8 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86HS126-5008 | 1.8 | 126 | 5 | 0.85 | 3.4 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86HS126-2708 | 1.8 | 126 | 2.7 | 2.5 | 12.5 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86HS153-6204 | 1.8 | 153 | 6.2 | 0.75 | 9 | 12 | 4 | 3.6 | 4000 | 5.4 |
| JK86HS153-4208 | 1.8 | 153 | 4.2 | 1.25 | 8 | 12 | 8 | 3.6 | 4000 | 5.4 |

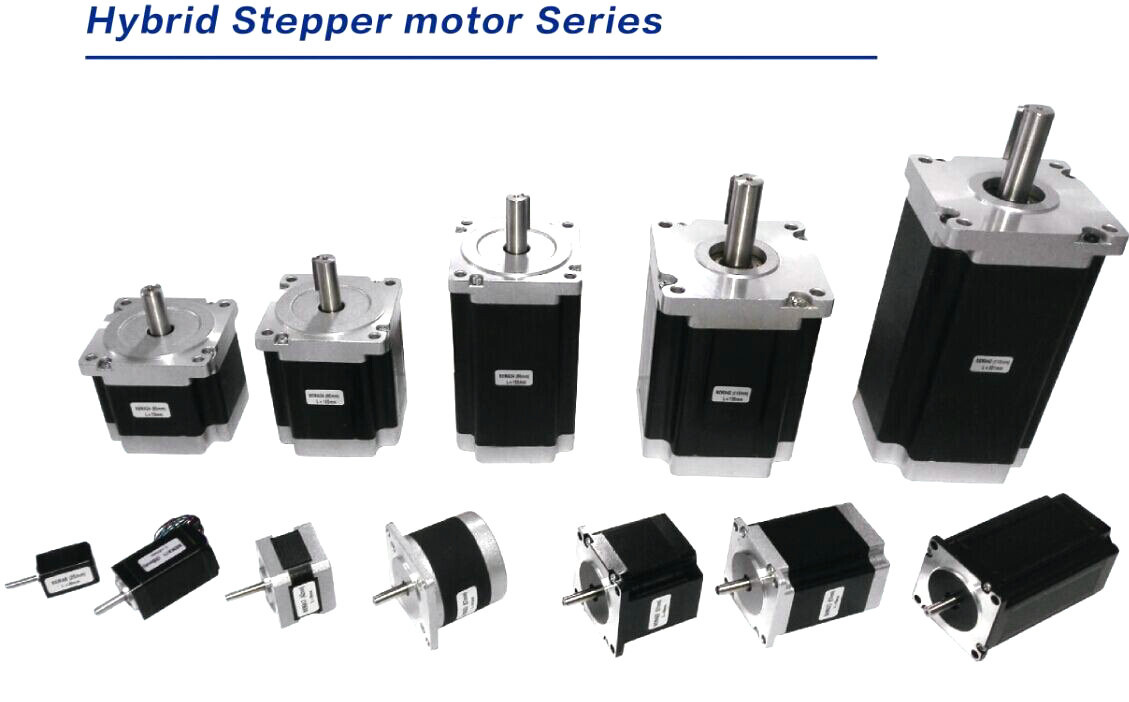

STEPPER MOTOR IN HOT SALE

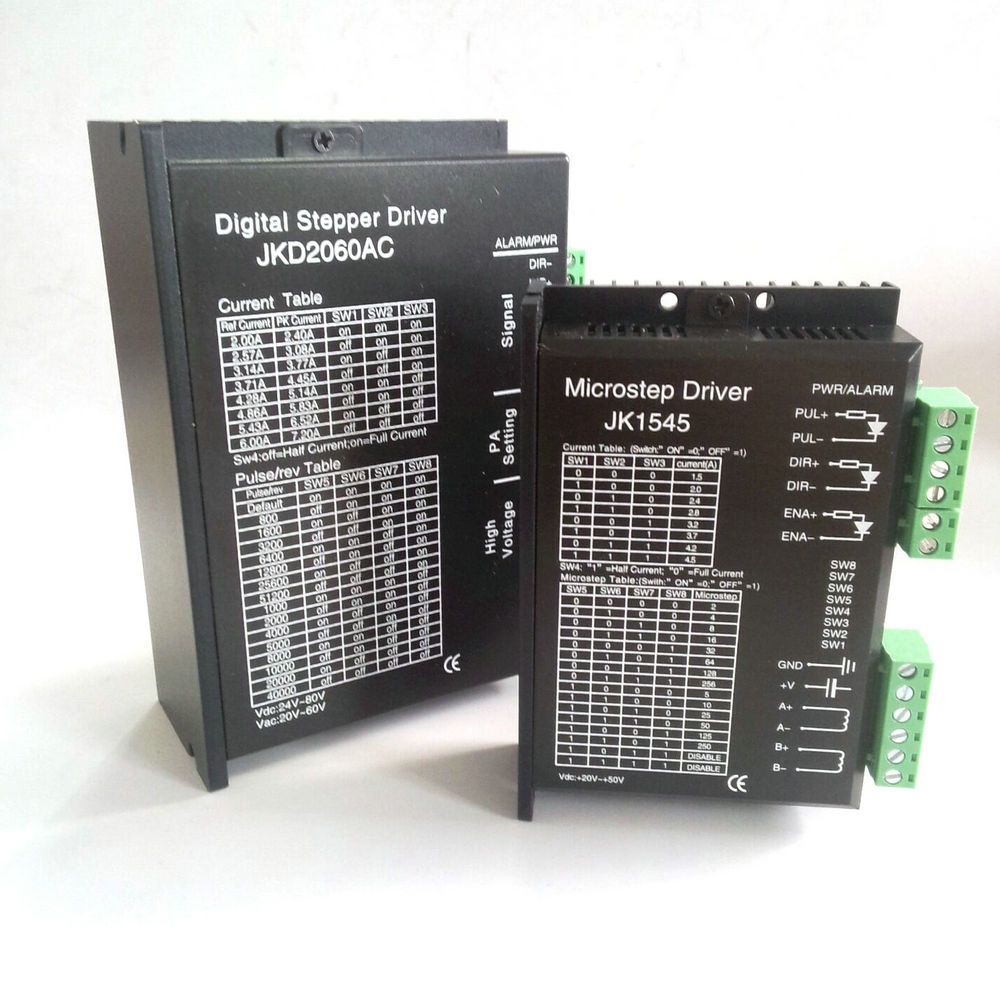

Digital Stepper Driver JKD2060AC FOR NEMA34
DescriptionsJKD2060AC is a new generation digital 2- phase stepper motor driver, based on a
32-bit DSP processor, combination of the anti-resonance, low noise, micro-step and
low temperature rise technology significantly improve the performance of the stepper
motor, has low noise, small vibration, low temperature rise and high-speed torque.
The driver use online adaptive PID technology, without manual adjustment can be
automatically generated optimal parameters for different motors, and achieve the best
performance.
Supply voltage range from 20VAC to 60VAC or from 24VDC to 90VDC, suitable for
driving various 2-phase hybrid stepping motors which phase current below 7.2A. The
microstep can be set from full step to 51200steps/rev and the output current can be set
form 2.4A to 7.2A; with automatic idle-current reduction, self-test, overvoltage,
under-voltage and over-current protection.Features1. High-performance, low price
2.micro-step
3. Automatic idle-current reduction
4. Optical isolating signals I/O
5. Max response frequency up to 200Kpps
7.Online adaptive PID technologyApplicationsSuitable for a variety of large-scale automation equipments and instruments. For
example: labeling machine, cutting machine, packaging machine, plotter, engraving
machine, CNC machine tools and so on. It always performs well when applied for

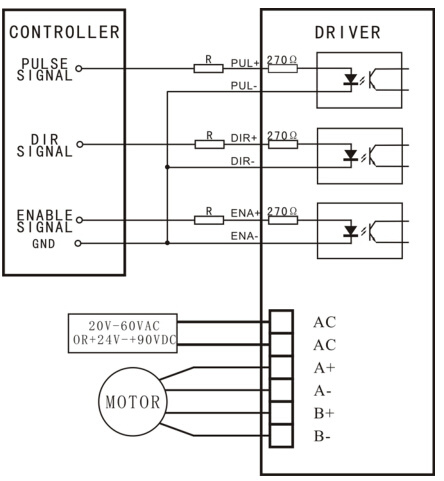

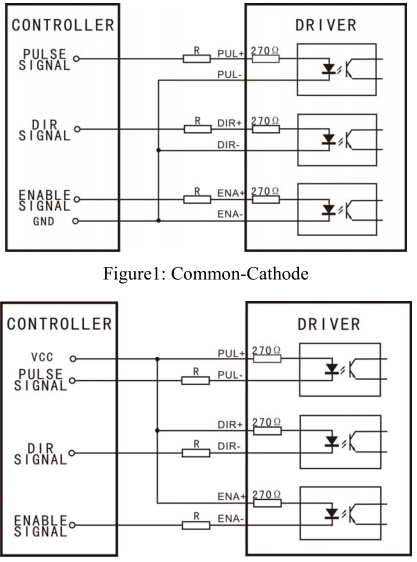

equipment which requires for low-vibration, low-noise, high-precision and high-velocity.Control Signal Connector Interface
Company Show:
CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Linear motor, Brushless dc Motor, Driver and some related parts.
Our Appliance fields refer to robot, electronic equipment, medical instrument, lighting & audio equipment, 3D printer, texile machine and CNC machine.
All our products have obtained CE certification, compliance with EU ROHS standards.
Welcome Domestic & foreign customers visit and cooperation!
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
