| Prod Model: |
86HS78-2004A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 |
| Frame Size: |
86mm X 86mm |
| Current: |
2A |
| Resistance: |
1.2 |
| Inductance: |
10mh |
| Holding Torque: |
28kg.Cm |
| Motor Body Length: |
78mm |
| Lead Wires: |
4 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
Driver |
| Brand: |
Jss |
| Certification: |
Ce |
Product Description

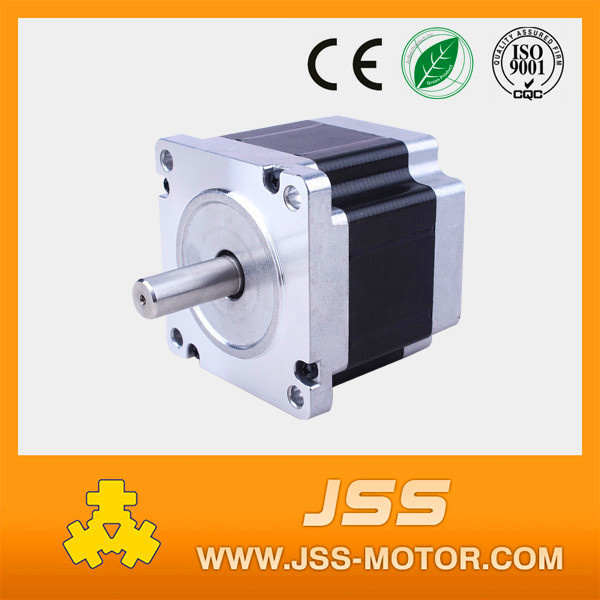

We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.

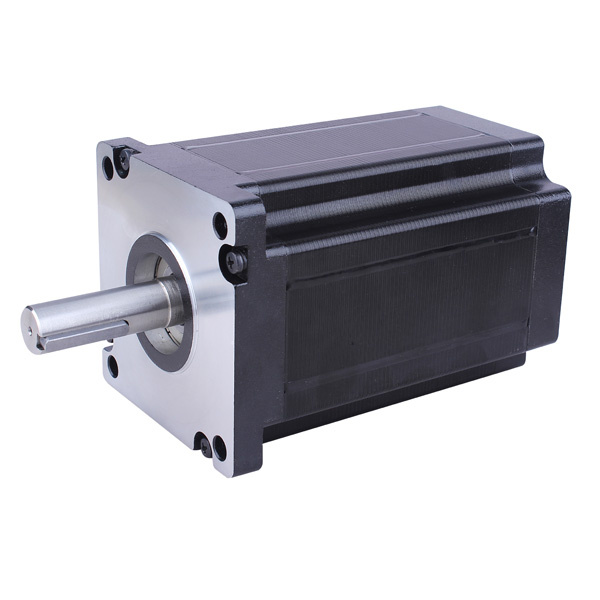

1. NEMA 34 stepper motor, high performance, low heat, low virbration, low noise.
2. Stepper motor single shaft or double shaft
3. Shaft length can be customized, and it can be round shaft or shaft with flat side(D-cut) or shaft with key slot. Shaft diameter is 12.7mm or 14mm
Step Angle Accuracy: ± 5%
Resistance Accuracy: ± 10%
Inductance Accuracy: ± 20%
Temperature Rise: 80° C Max
Ambient Temperature: -20° C~+50° C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)
We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.| TYEP | phase No. | step angle | current (A) | resistance(Ω±10) | inductance (mH±20) | holding torque (kg.cm) | length (mm) | wire No. |
| 86HS78-2004 | 2 | 1.8 | 2 | 1.2 | 10 | 28 | 78 | 4 |
| 86HS78-3004 | 2 | 1.8 | 3 | 2 | 16 | 35 | 78 | 4 |
| 86HS78-3504 | 2 | 1.8 | 3.5 | 0.4 | 3 | 30 | 78 | 4 |
| 86HS78-5504 | 2 | 1.8 | 5.5 | 0.45 | 4 | 45 | 78 | 4 |
| 86HS78-5608 | 4 | 1.8 | 5.6 | 0.9 | 4 | 45 | 78 | 8 |
| 86HS82-4504 | 2 | 1.8 | 4.5 | 0.33 | 3 | 35 | 82 | 4 |
| 86HS82-5608 | 4 | 1.8 | 4.5 | 0.6 | 3 | 35 | 82 | 8 |
| 86HS100-5004 | 2 | 1.8 | 5 | 0.5 | 4 | 52 | 100 | 4 |
| 86HS118-2004 | 2 | 1.8 | 2 | 1.8 | 14 | 50 | 118 | 4 |
| 86HS118-4006 | 4 | 1.8 | 4 | 1.1 | 6 | 50 | 118 | 6 |
| 86HS118-4208 | 4 | 1.8 | 4 | 0.9 | 6 | 60 | 118 | 8 |
| 86HS118-5004 | 2 | 1.8 | 5 | 0.6 | 2.8 | 60 | 118 | 4 |
| 86HS118-6004 | 2 | 1.8 | 6 | 0.55 | 6 | 85 | 118 | 4 |
| 86HS118-6008 | 4 | 1.8 | 6 | 1.1 | 6 | 85 | 118 | 8 |
| 86HS156-5004 | 2 | 1.8 | 5 | 0.5 | 5.5 | 90 | 156 | 4 |
| 86HS156-5504 | 2 | 1.8 | 5.5 | 0.7 | 9 | 120 | 156 | 4 |
| 86HS156-5608 | 4 | 1.8 | 5.6 | 1.4 | 9 | 120 | 156 | 8 |

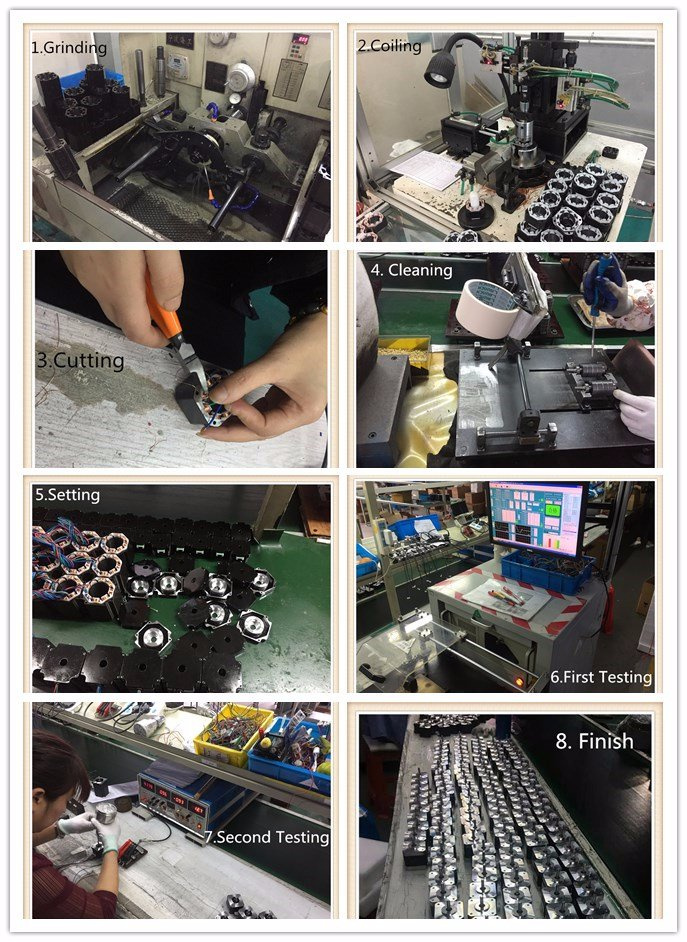

The process of assemble

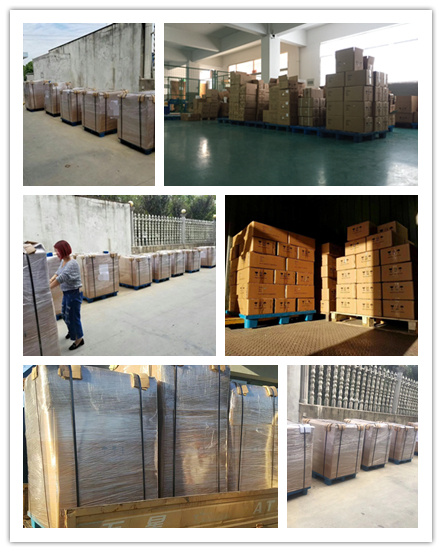

Our package
