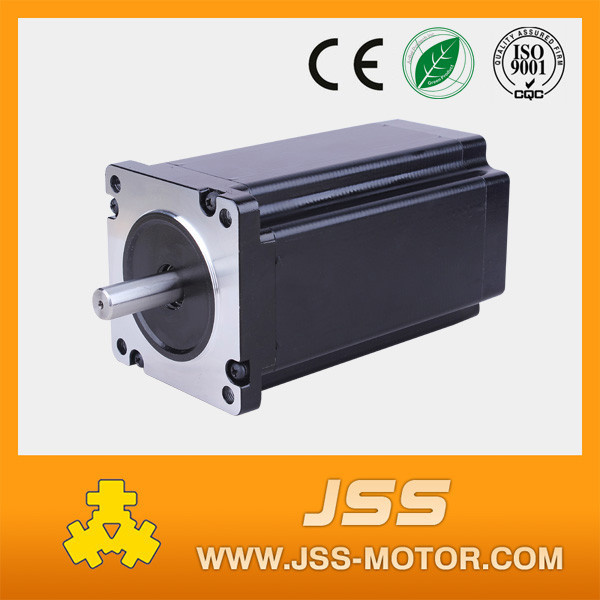

NEMA 42 110mm 1.2 Degree Stepper Motor

NEMA 42 110mm 1.2 Degree Stepper Motor
Price: US $ 150/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: 110HC221-5203
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle: 1.2
Frame Size: 110mm*110mm
Current: 5.2A
Resistance: 1.9ohm
Inductance: 18mh
Holding Torque: 200kg.Cm
Motor Body Length: 221mm
Lead Wires: 3
Number Of Stator: Three-Phase
Excitation Mode: HB-Hybrid
Type: Magnetic-Electric
Application: Automatic Machine
Number Of Poles: 3
Operate Mode: Driver
Certification: CE
Brand: Jss

Product Description


Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.
Product Description:

Nema 42 110mm 1.2 degree stepper motor

Technique parameter:

Item

Specification

Step Angle

1.2°

Step Angle Accuracy

±5% (full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80ºCMax.(rated current,2 phase on)

Ambient Temperature

-10ºC~+50ºC

Insulation Resistance

100MΩMin.  500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06Max.(450 g-load)

Shaft Axial Play

0.08Max.(450 g-load)


110HC Motor Name List(High Torque)


Model NoCurrent/PhaseResistance/PhaseInductance/PhaseHolding Torque#Of LeadsRotor InertiaWeightLength
AΩmHOz-inKg.cm Kg-cm2Kgmm
110HC118-42034.201.012.5 8037.45.5118Φ19*35
110HC125-42034.201.19 9037.86.0125Φ19*35
110HC139-42034.201.213 12038.46.5139Φ19*35
110HC180-64036.400.99.5 160312.88.5180Φ19*35
110HC221-52035.21.918 200316.811.0221Φ19*35



We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
And We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake,  drivers for all the motors, and closed loop stepper motors and drivers.  We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.
