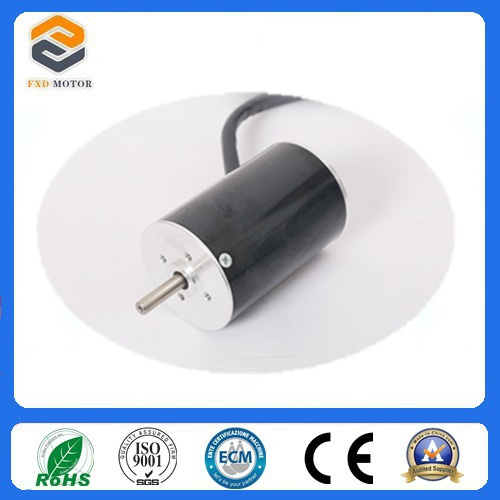

NEMA 9 High Torque Brushless Coreless Motor for Toy Car (FXD26CBL44-2450)

Name: NEMA 9 High Torque Brushless Coreless Motor for Toy Car (FXD26CBL44-2450)
Brand: all-electronics-online.com
SKU: 754352705
Availability: InStock
Rating: 4.4 (115 reviews)

Price:	US $ 42-90/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXD26CBL44-2450
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed Of The Motor:	5000-20000 Rpm
Power Of The Motor:	1-20W
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless
Type:	Brushless DC Coreless Motor
Certification:	CE RoHS
Brand:	Fxd Motors

Product Description

Product Descripion
26mm size(NEMA 9) brushless dc motor is used very efficiency on different electromechanical device.
Our FXD26YBL Series bldc motor have lots of advantages as below:
1.Nema 9 Brushless dc coreless motor
2.Model Number: FXD26CBL44-2450
3.Phase: 3 Phase
4.Lead Wire(No.): 8 wires
5.Shape: Rounded
6.Motor OD: 22mm(0.87Inch)
7.Speed:10000-50000 rpm adjusted
8.Applications: Use for Robots , electronic automatic equipment, medical instrument , Aeromodel bldc motor, tiny cars bldc motor, textile machinery brushless motor. Cnc brushless dc motor,massor bldc motor,manipulator bldc motor

Gemeral info.

Model No:FXD26CBL44-2450	Type: Brushless dc coreless motor
Widing type: Star/Delta	Hall Effect angle: 120 degree electric angle
Nuber of the phase: 3-Phase	Shaft runout: 0.02mm
Radial play: 0.08mm/50g	End play: 0.08mm/50g
Max radial force: 28N/20mm	Max axial force: 15N
Insulation class: Class B	Ip class: Ip40
Dielectric Strength: 500VDC for one minite	Insulation resistance: 100MΩmin 500VDC

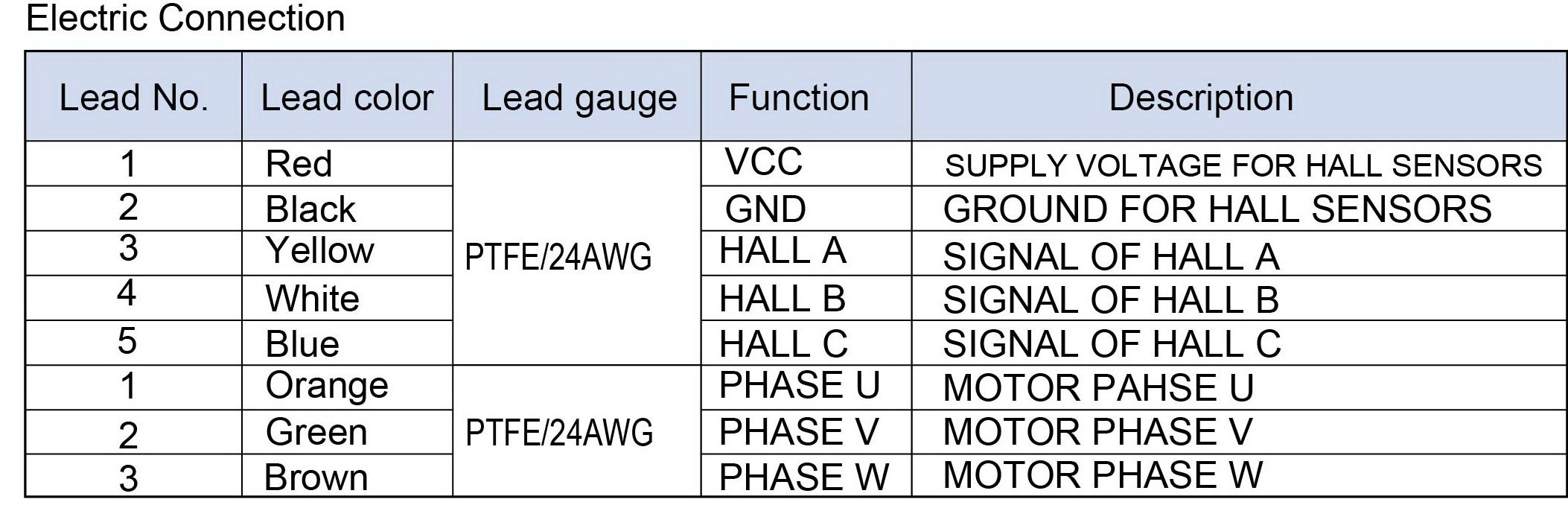

Electric Connection

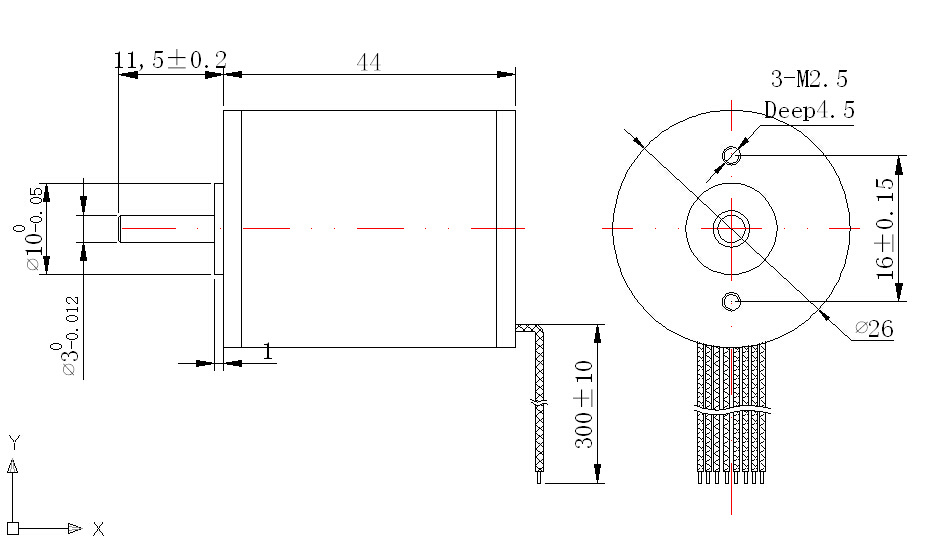

Dimentions diagram:

Electrical specification

Model	No. ofPhase	Rated voltage	Rated speed	Rated torque	Rated power	Mass	Body length
Model	Phase	VDC	rpm	g.cm	w	g	mm
FXD26CBL44-2450	3	24	10000	50	50	118	44

Note: Products can be designed or modified according to customer requirements.
Web: http://fxdmotor.en.made-in-china.com/ Phone:+86 0519 83666368
http://www.fxdmotors.com Cell phone: +8615295151006
