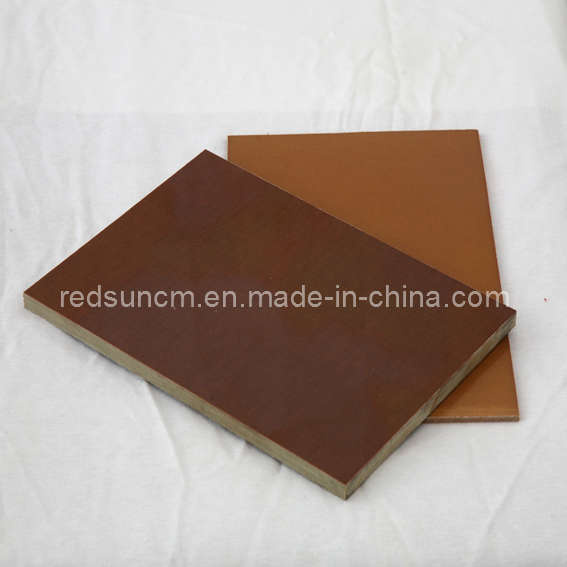

NEMA CE Phenolic Cotton Fabric Laminate

Name: NEMA CE Phenolic Cotton Fabric Laminate
Brand: all-electronics-online.com
SKU: 670392472
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	Negotiable
Trade Terms:	FOB, CIF or Others
Min Order:	1 /Piece

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Temperature classification is E. It is made of coarse cotton fabric impregnated phenolic resin, through heated and pressed. Electrical applications (coarse weave) and good humidity.

Table 1: Nominal thickness, dimension and tolerance
Thickness	Tolerance	Thickness	Tolerance	Thickness	Tolerance
mm	mm	mm	mm	mm	mm
1	± 0.15	5	± 0.48	14	± 1.00
1.2	± 0.18	5.5	± 0.48	16	± 1.30
1.5	± 0.18	6	± 0.58	20	± 1.30
1.8	± 0.23	6.5	± 0.58	25	± 1.50
2	± 0.23	7	± 0.68	30	± 1.50
2.5	± 0.33	8	± 0.68	35	± 2.00
3	± 0.33	9	± 0.80	40	± 2.00
4	± 0.38	10	± 0.80	45	± 2.80
4.5	± 0.38	12	± 1.00	50	± 2.80
Note: 1. The tolerance mentioned above is only used to refer and the actual one is according to the standard.
2. Normal dimension: (960± 15)mm× (1460± 15)mm or negotiated.
Table 2: The technical requirements
No	Property		Unit	Normal value
1	Density		g/cm 3	≥ 1.33
2	Water absorption (Thickness is 3.2mm)		%	≤ 1.60
3	Flexural strength perpendicular to the layer direction	Crosswise	MPa	≥ 117
3	Flexural strength perpendicular to the layer direction	Lengthwise	MPa	≥ 97
4	Impact strength (Cantilever beam method)	Crosswise	KJ/m 2	≥ 8.5
4	Impact strength (Cantilever beam method)	Lengthwise	KJ/m 2	≥ 7.5
5	Bonding stength		N	≥ 8010
6	Breakdown voltage parallel to the layer direction (conical pin electrode, 20s step by step)	At room temperature	kV	≥ 35
6		After boiled in water at 50 ° C for 48h	kV	≥ 2.5
Note: Thickness of the sheet is 12.7mm
