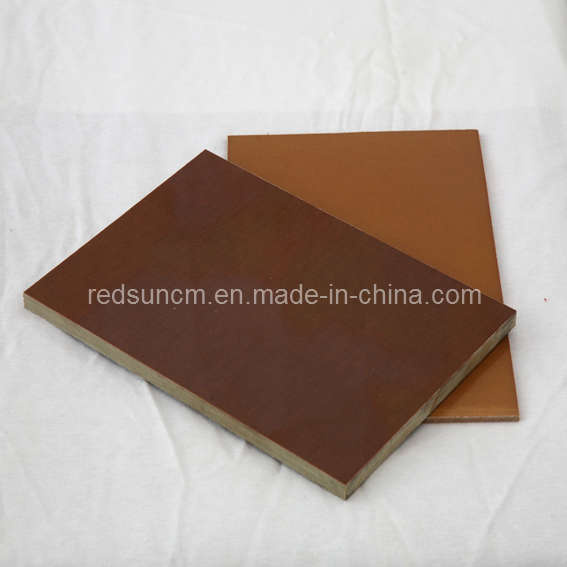

NEMA LE Phenolic Cotton Fabric Laminate

Name: NEMA LE Phenolic Cotton Fabric Laminate
Brand: all-electronics-online.com
SKU: 670392482
Availability: InStock
Rating: 4.4 (148 reviews)

Price:	Negotiable/Piece
Trade Terms:	CFR,CIF,DAP
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Temperature classification is E. It is made of greige linen impregnated phenolic resin, through heated and pressed. Electrical applications (greige linen) and good humidity.

Table 1: Nominal thickness, dimension and tolerance
Thickness	Tolerance	Thickness	Tolerance	Thickness	Tolerance
mm	mm	mm	mm	mm	mm
1	± 0.15	5	± 0.48	14	± 1.00
1.2	± 0.18	5.5	± 0.48	16	± 1.30
1.5	± 0.18	6	± 0.58	20	± 1.30
1.8	± 0.23	6.5	± 0.58	25	± 1.50
2	± 0.23	7	± 0.68	30	± 1.50
2.5	± 0.33	8	± 0.68	35	± 2.00
3	± 0.33	9	± 0.80	40	± 2.00
4	± 0.38	10	± 0.80	45	± 2.80
4.5	± 0.38	12	± 1.00	50	± 2.80
Note: 1. The tolerance mentioned above is only used to refer and the actual one is according to the standard.
2. Normal dimension: (960± 15)mm× (1460± 15)mm or negotiated.
Table 2: The technical requirements
No	Property			Unit	Normal value
1	Density			g/cm 3	≥ 1.33
2	Water absorption (Thickness is 3.2mm)			%	≤ 1.30
3	Flexural strength perpendicular to the layer direction	Crosswise		MPa	≥ 104
3	Flexural strength perpendicular to the layer direction	Lengthwise		MPa	≥ 93
4	Impact strength	Crosswise		KJ/m 2	≥ 6.7
4	Impact strength	Lengthwise		KJ/m 2	≥ 5.3
5	Compressive strength	Perpendicular to the layer		MPa	≥ 255
5	Compressive strength	Parallel to the layer		MPa	≥ 173
7	Tensile strength	Crosswise		MPa	≥ 93
7	Tensile strength	Lengthwise		MPa	≥ 65
8	Bonding strength			N	≥ 7117
9	Insulation resistance immersed in water at 23± 2 ° C for 24h			MΩ	≥ 3.0× 10 1
10	Breakdown voltage parallel to the layer direction (conical pin electrode, 20s step by step)		At room temperature	kV	≥ 40
10			After boiled in water at 50 ° C for 48h	kV	≥ 3.0
11	Dissipation factor at 1MHz			-	≤ 0.055
12	Dielectric constant at 1MHz			-	≤ 5.8
Note: Thickness of the sheet is 12.7mm.

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
