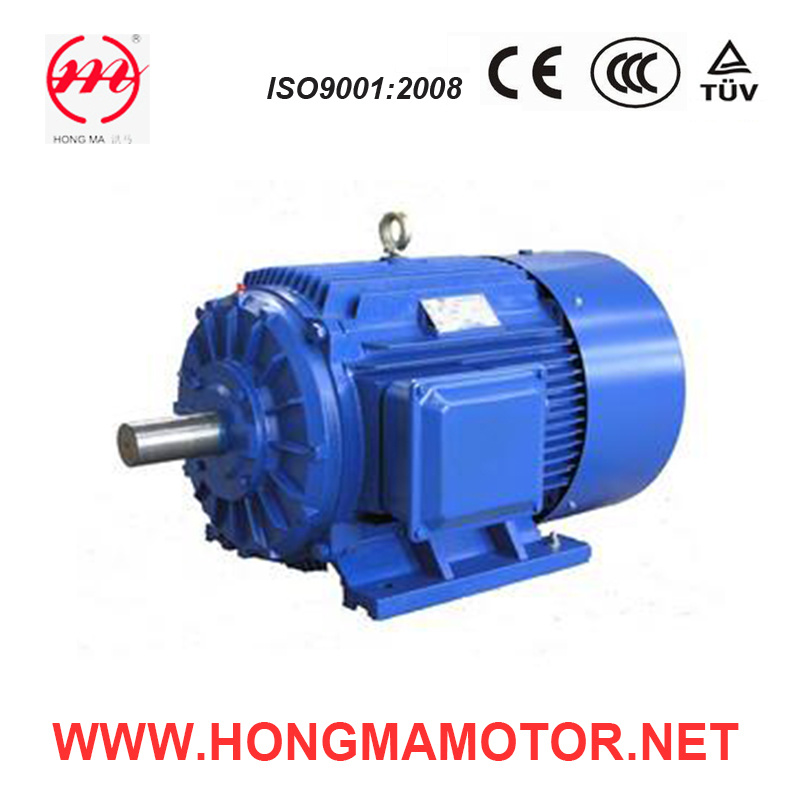

NEMA Series High Efficiency Three Phase Induction Motor

Name: NEMA Series High Efficiency Three Phase Induction Motor
Brand: all-electronics-online.com
SKU: 707891912
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 40-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	1HP ~ 200HP
Frequency:	60Hz
Rated Voltage:	208-230/460 V
Power Factor:	NEMA
Working Form:	Continuous Duty
Ambient Temperature:	40
Structure:	Tefc (Totally Enclosed Fan Cooled)
Insulation Class:	F
Frame Material:	Cast-Iron
Protection Class:	IP55
Function:	Control
Number Of Stator:	Customized
Brand:	Hongma

Product Description

Applications of NEMA series High Efficiency Three Phase Induction Motor

NEMA standard high efficient motors are totally enclosed fan cooled machine (IP55). This series motors are designed and manufactured in accordance with NEMA standard of USA and C390-93 standard of Canada. These motors are of a novel style and of excellent workmanship. They are characterized as reliability and safety, minimal temperature rise, high efficiency, low noise, low vibration, high starting torque, etc. Both high efficiency and premium efficiency are available.
These motors adopt design B and class F insulation. Their service factor is 1.15. They have rated voltage at 230/460V.

Nema Standard High Efficient Motors

Nema standard high efficient motors are totally enclosed fan cooled machine (IP55). This series motors are designed and manufactured in accordance with NEMA standard of USA and C390-93 standard of Canada. These motors are of a novel style and of excellent workmanship. They are characterized as reliability and safety, minimal temperature rise, high efficiency, low noise, low vibration, high starting torque, etc. Both high efficiency and premium efficiency are available.
These motors adopt design B and class F insulation. Their service factor is 1.15. They have rated voltage at 230/460V, 60V or 575V and rated frequency at 60HZ. The ambient temperature they can expose to is from -15ºC to 40ºC. The altitude they require doesn't exceed 3300 feet. They are ideal for application with no special requirement. They can be used to drive various kinds of mechanical equipment. This series motors can be specially manufactured on request, such as T, TC, TD or H insulation class, different voltage, different frequency, etc.

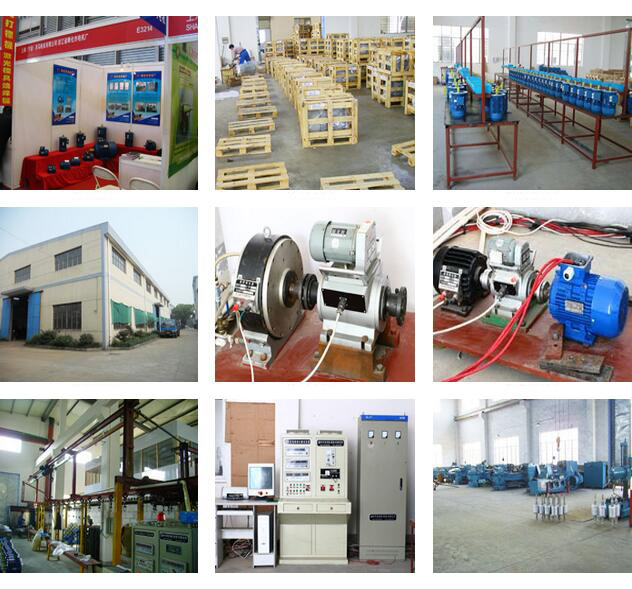

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
