| Prod Model: |
28BYGH1Series |
| Motor Series: |
28 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
15mm (0.59 in) |
| Shaft: |
Round Shaft |
| Connectors: |
Plug-in, Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
Precision Component |
| Operate Mode: |
2 Phase-8 Parts |
| Brand: |
Shengyang |
Product Description

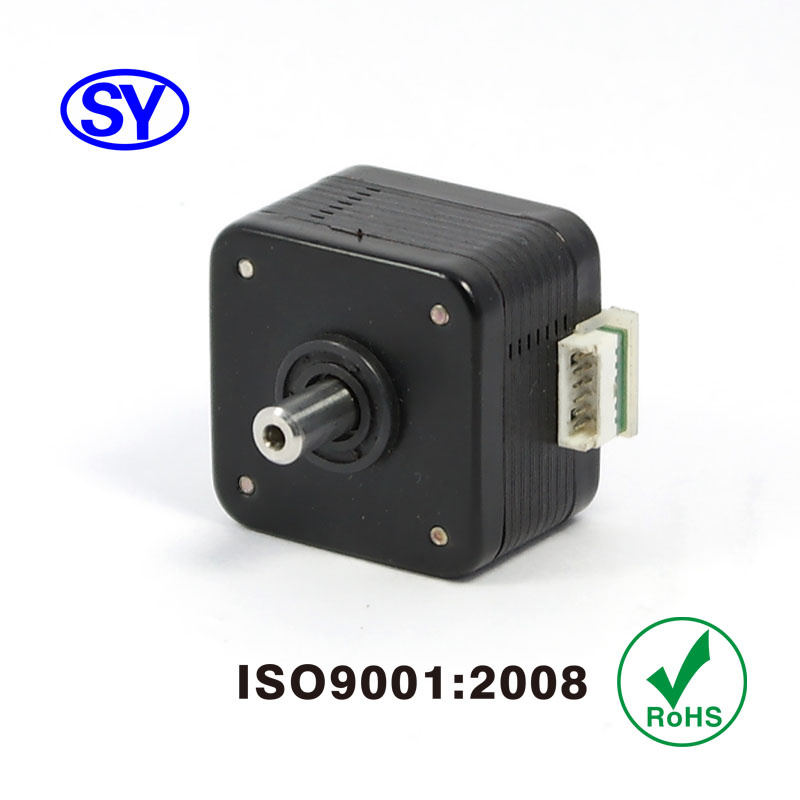

NEMA11 (28mm) Motor Length Stepper Electrical Motor for 3d Printer
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.
The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life.
All the derived products of us can be customized for your needs.
Product Description:
Features:
High accuracy
Low inertia
Smallsize
1. Specifications:
Motor Model: 28BYGH101
Step Angle: 1.8°± 5% full step, no load
Holding Torque: 50mN.m (7.08oz-in)
Resistance per Phase: 12 ohm
Inductance per Phase: 4 mH
Rated Current: 0.3A DC
Shaft End Length: 15mm (0.59 in)
Connectors: Connectors, Lead Wires
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resitance: Larger than 100mΩ 500V DC
Dielectric Srength: 600V AC for 1S, leakage current less than 1mA
2. Note: Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
performance and parameters can be customized, just simply send your motor diagram or samples to us, we will make the best price for your reference.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, welcome to contact us for more detail.
