NEMA14 34mm 12V Non-Captive Linear Stepper Motor with Lead Screw

Name: NEMA14 34mm 12V Non-Captive Linear Stepper Motor with Lead Screw
Brand: all-electronics-online.com
SKU: 838038585
Availability: InStock
Rating: 4.8 (58 reviews)

Price:	US $ 15-50/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	35HS3410SG
Current:	1A
Holding Torque:	1.2kg.Cm
Step Angle:	1.8 Degree
Rated Volage:	8.4V
Resistance/Phase:	8.4Ω
Inductance/Phase:	11mh
No Of Leads:	4
Rotor Inertia:	13G.Cm2
Detent Torque:	100g.Cm
Motor Length:	34mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	2 Phase
Type:	Stepper Motor
Certification:	Ce
Brand:	Sjie

Product Description

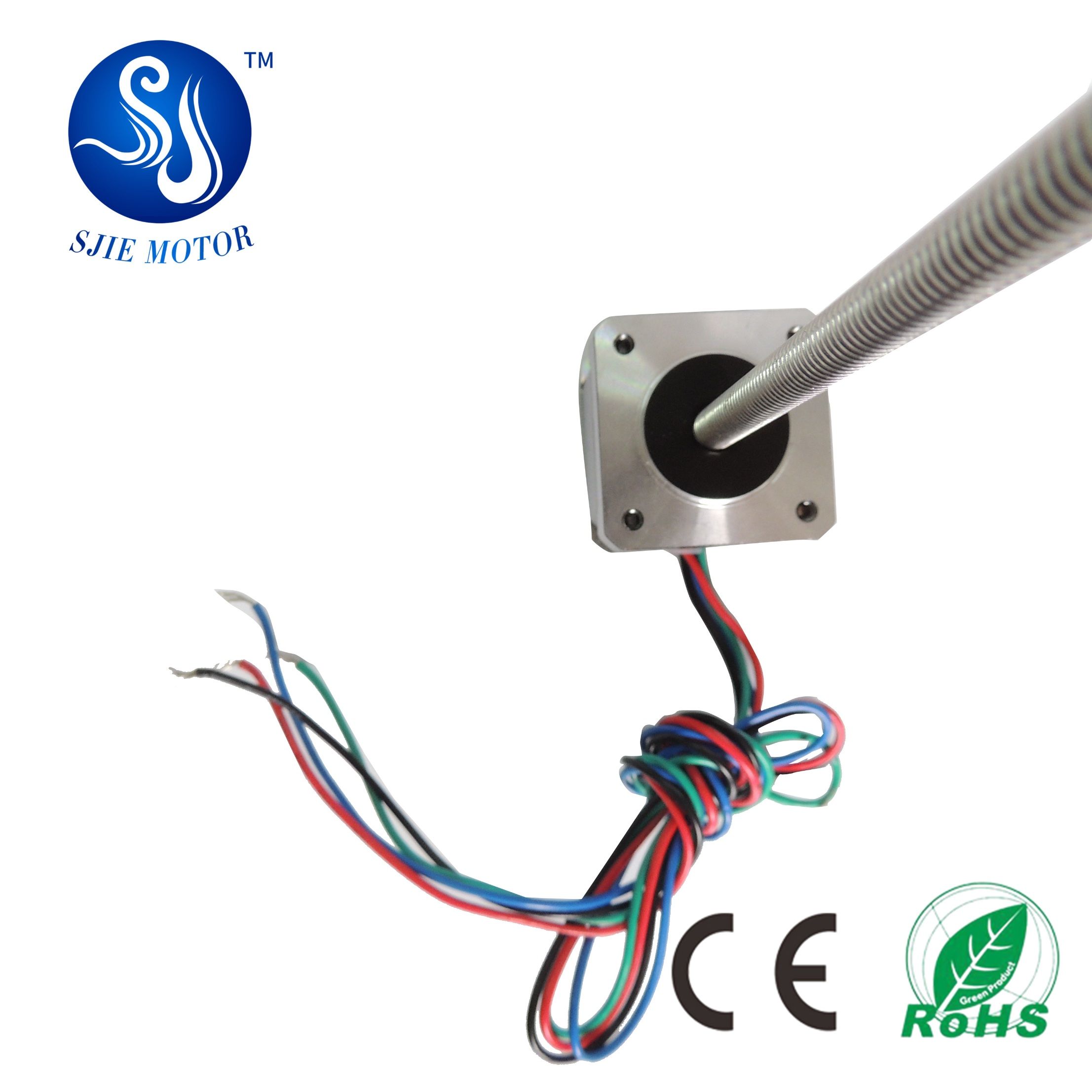

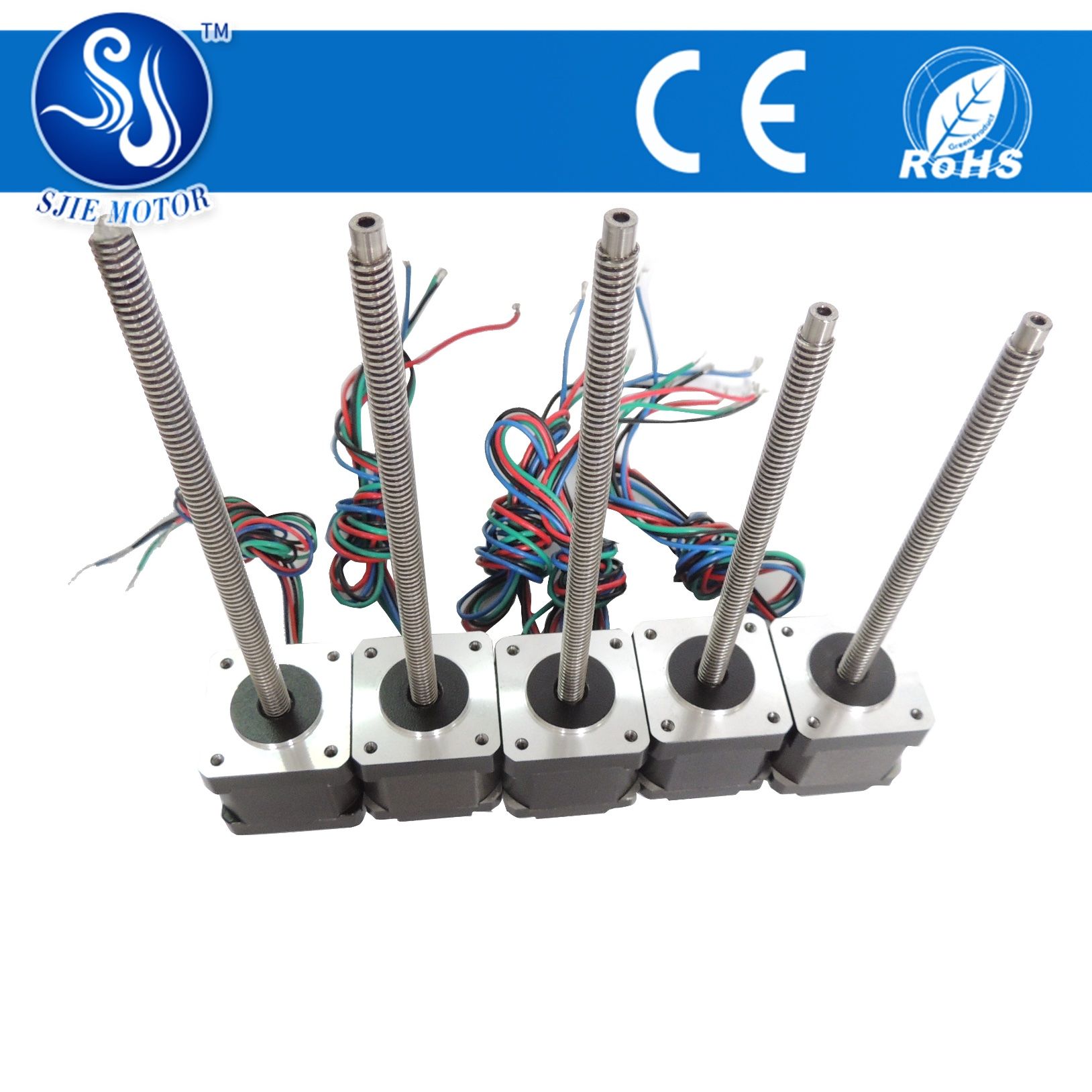

Products photos:

Product Description:

1.8degree Size 26,34mm lead screw linear stepper motor.

26,34mm Size lead screw linear stepper motor,

NEMA 14 lead screw linear stepper motor

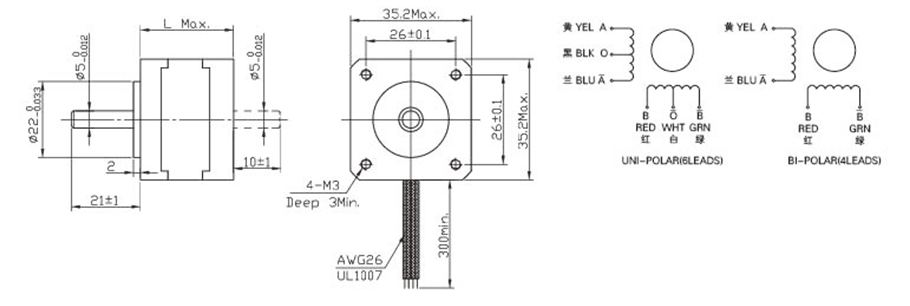

Specifications:

item	Specification
Temperature Rise	80°C Max
Insulation Resistance	100MΩ Min., 500VDC
Step Angle Accuracy	±5%(full step,no load)
Resistance Accuracy	±10%
Amibent Temperature	-20°C~+50°C
Inductance Accuracy	±20%
Dielectric Strength	500VAC for one minute

Electrical Specific
Electrical Specific
Series	Step	Motor	Rated	Phase	Phase	Holding	Detent	Rotor	Lead	Motor
Model	Angle Length	Current	Current	Resistance	Inductance	Torque	Torque	Inertia	Wire	Weight
	(° )	(mm)	(A)	(Ω)	(mH)	(N.cm Min)	(N.cm Max)	(g.cm²)	(No.)	(g)
35HS2605	1.8	26	0.46	20	14	8	0.8	11	4	120
35HS3410	1.8	34	1.0	8.4	11.0	12	1.0	13	4	160
35HS3405	1.8	34	0.5	20.0	10.0	10	1.0	13	4	160
*Note:We can manufacture products according to customer's requirements.

About our Packing:

Except 2 phase and 3 phase stepper motor , we also supply close loop stepper motor , planetary gear stepper motor , hybrid stepper motor driver , power supply and so on .

if you need more information , please contact with us , our contact information is as follows.

Changzhou Sujie Motor Co.,Ltd

Contact Person : Ms Sue (Sales manager)

Tel: 0086 519 88779021

If you need instant massaging and real-time conversation, please note information when adding friends. Welcome to consult!

We can develop customer design version .More Quantity . more discount !!!

Established in 2001, Changzhou Sujie Motor Co., Ltd is a manufacturer and trader specialized in the research, development and production of stepper motor. Company is located in No. 101, Qinxin Industrial Park, Wujin District, Changzhou, Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the word.

Half of our production is currently exporting worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
