| Prod Model: |
39HY38-0806 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Length: |
38mm |
| Step Angel: |
1.8degree |
| Current: |
0.8A |
| Motor Weight: |
0.2kg |
| Type: |
Electromechanical |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
Product Description

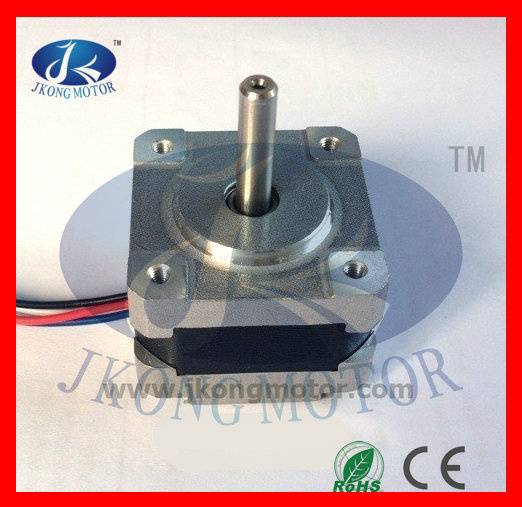

NEMA16 1.8 Degree Jk39hy38-0806 micro Stepper Motor for textile machinery
NEMA 16 Hybrid Stepper Motor
Model Number: JK
Phase: 2 Phase
Lead Wire (No. ): 6 wire
Structure: Hybrid
Step Angle: 1.8°
Motor Height: 38mm
Holding Torque: 2000 g. Cm
Speed: Low / High speed
Certification: CE, RoHS, ISO9001
Shape: Square
Applications: Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.
Description:
1.8 degree Size 39mm Hybrid stepper motor. 3D Printer stepper motor
39mm size stepper motor, NEMA16 stepping motor,
Small stepping motors, 2 phase 39mm stepper motor, Stepper motor 39 mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor,
Advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor.
CNC router stepper motor.
About our manufacturer:
We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and RoHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd
JKM mainly specializes in the field of R&D and produces the automotion and motion controller products. For over 6 years development, we have many series inJKM, our products from NEMA8, NEMA11, NEMA16, NEMA17, NEMA23, NEMA34, NEMA42 stepper motor which are in best quality and can be used in many kinds of machines, such as CNC machine, medical equipment, weaving printing equipments and so on.
If you need more information. Please contact with us, our contact information:
Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Contact Person: Ms Jane
More Quantity. More discount! ! !
Model No. |
Step Angle |
Motor Length |
Current
/Phase |
Resistance
/Phase |
Inductance
/Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
|
( °) |
(L)mm |
A |
Ω |
mH |
g.cm |
No. |
g.cm |
g.cm |
Kg |
|
JK39HY20-0424 |
1.8 |
20 |
0.42 |
18 |
12 |
800 |
4 |
50 |
11 |
0.12 |
|
JK39HY26-0604 |
1.8 |
26 |
0.6 |
9 |
10 |
1400 |
4 |
80 |
14 |
0.16 |
|
JK39HY34-0404 |
1.8 |
34 |
0.4 |
30 |
32 |
2100 |
4 |
120 |
20 |
0.18 |
|
JK39HY34-0306 |
1.8 |
34 |
0.3 |
40 |
20 |
1300 |
6 |
120 |
20 |
0.18 |
|
JK39HY38-0504 |
1.8 |
38 |
0.5 |
24 |
45 |
2900 |
4 |
180 |
24 |
0.2 |
|
JK39HY38-0806 |
1.8 |
38 |
0.8 |
7.5 |
6 |
2000 |
6 |
180 |
24 |
0.2 |
|
JK39HY44-0304 |
1.8 |
44 |
0.3 |
40 |
100 |
2800 |
4 |
250 |
40 |
0.25 |
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
