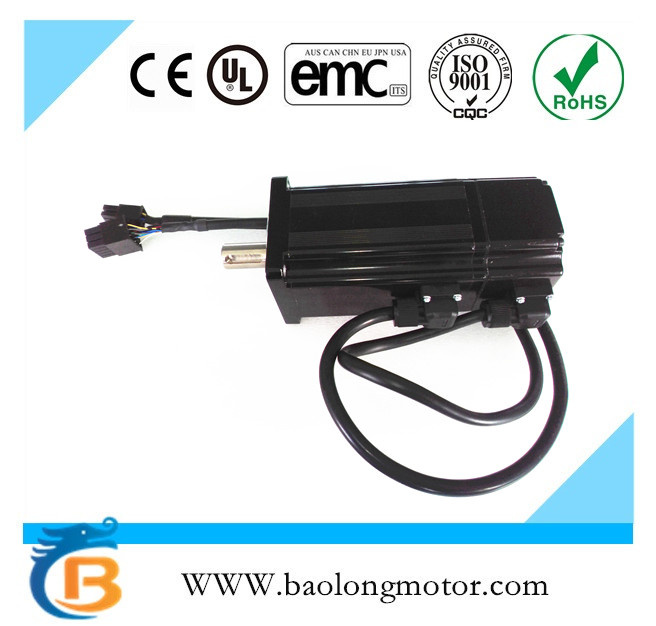

NEMA16 220V 100W Brushless Motor with encoder for Textile Machine

Name: NEMA16 220V 100W Brushless Motor with encoder for Textile Machine
Brand: all-electronics-online.com
SKU: 778075905
Availability: InStock
Rating: 5 (128 reviews)

Price:	US $ 90-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	16STTE2201030-EC625D40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Frame:	NEMA16
Rated Volatge:	220V
Rated Current:	1.3A
Rated Torque:	0.32 N.M
Rated Power:	100 W
Motor Weight:	0.75 Kg
Motor Length:	113 mm
Export Markets:	Global
Application:	Textile Machine
Operating Speed:	High Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brushless
Casing Protection:	Other
Type:	Brushless DC Motor
Certification:	CE
Brand:	Baolong

Product Description

1,Description
We are a lead motor manufacture in China. Our products range over HB stepper motor, BLDC motor, servo motors and driver systems.
1) Our products have good quality and pretty competitive price.
2) We can do custom-made changes as customers' requirements.

2,Series
Place of Origin: JIANGSUCHANGZHOU
Brand Name: BAOLONG
Certification: IOS9001,CE,UL,EMC

3,Application
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.

4,Specifications

Motor Model	16STTE2201030-EC625D40
Number of Phase	3
Number of Poles	8
Rated Voltage(VAC)	220
Rated Speed(Rpm)	3000
Rated Torque(N.M)	0.32
Rated Power(w)	100
Rated Current(A)	1.3
Peak current(A)	3.9
Peak Torque(N.M)	0.96
Resistance(ohm)	0.77
Inductance(mH)	0.45
Torque constant(Nm/A)	0.246
Voltage constant(V/kRPM)	16
Rotor Inertia(Kg.cm2)	0.059
Insulation Class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	500MΩ Min 500VDC
Weight(kg)	0.75
Length(mm)	113

encoder connecting instruction

No	signal	wire color
1	PE	shield cable
2	+5V	RED
3	0V	BLK
4	A+	GRN
5	Z-	YEL/BLK
6	U+	BRN
7	Z+	YEL
8	U-	BRN/BLK
9	B+	WHT
10	V+	GRY
11	W+	ORE
12	W-	ORE/BLK
13	B-	WHT/BLK
14	A-	GRN/BLK
15	V-	GRY/BLK

PS: The motor uses encapsulated stator and AMP connector .
