NEMA16 3phase AC Servo Motor with Encoder
| Price: |
US $ 80-100/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
16ST22201630 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
0.65 |
| Rated Voltage(VAC): |
220 V |
| Rated Speed: |
3000 Rpm |
| Rated Torque: |
0.16 |
| Rated Power: |
50 |
| Motor Length: |
92 |
| PPR: |
2500 |
| Safety Class: |
IP65 |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Brand: |
Baolong |
| Certification: |
CE |
Product Description

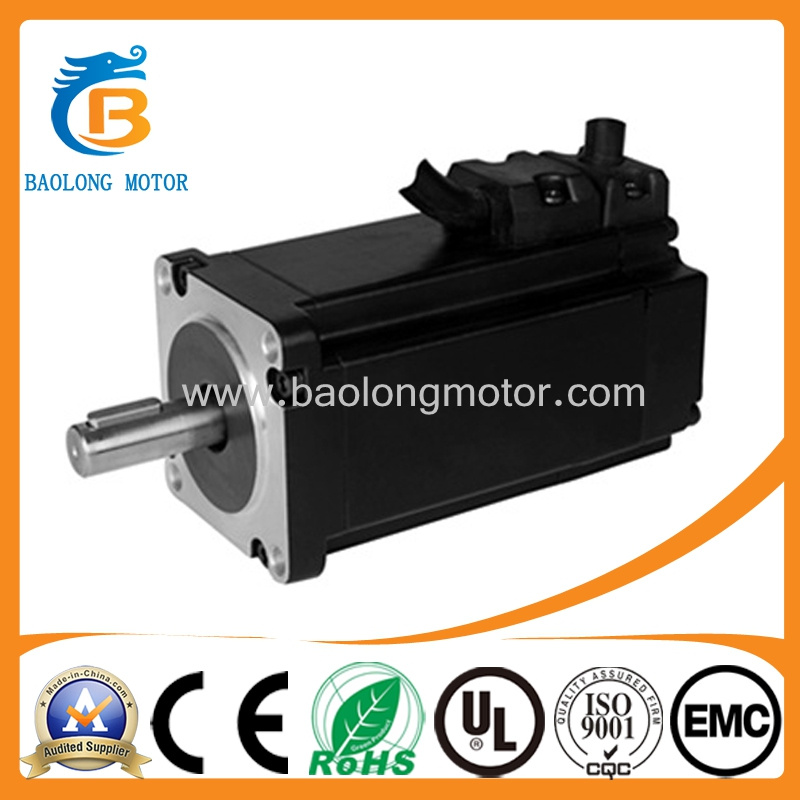

NEMA16 3phase AC Servo Motor with Encoder

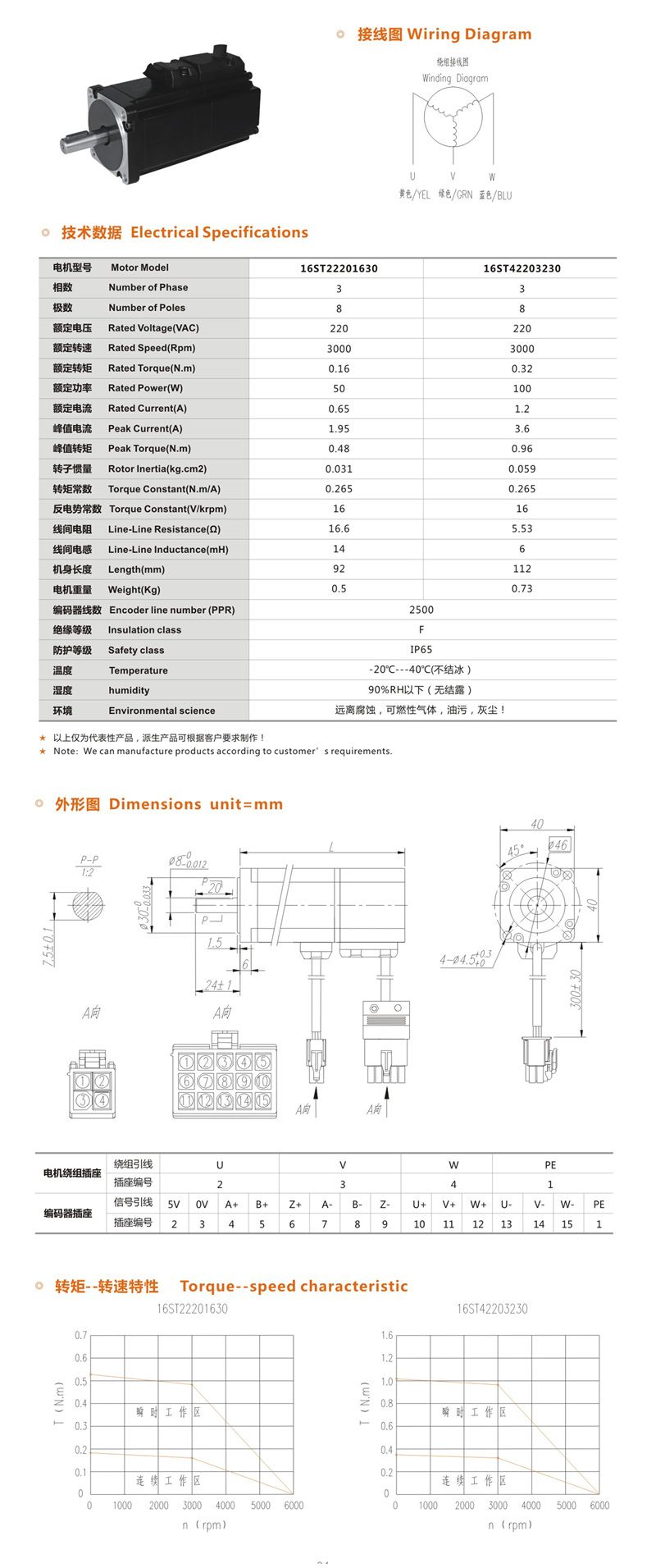

PRODUCT SPECIFICATION
Baolong's servo motor series are at the leading level in technology. Its performance far exceeds the traditional designs of the motor. Our servo motor adopts the split type stator with iron corestructure, and insulating structure design of patentability. Every stator is used after an epoxy potting process. The rotor is made by rare earth magnetic ring which holding high magnetic energy. The motor is been strict reliable designed and tested. Our servo motor consistency on the production line has a strict control index. Baolong's servo motor increases by more than 30% on the torque density, compared with traditional design, and the holding torque does not exceed 1.5% of the rated torque. Our motor running smoothly; and higher control precision.| Motor Model | 16ST22201630 |
| Number of Phase | 3 | Number of Poles | 8 |
| Rated Voltage(VDC) | 220 | Rated Speed(Rpm) | 3000 |
| Rated Torque | 0.16 | Rated Power(w) | 50 |
| Reted Current(A) | 0.65 | Peak Current(A) | 1.95 |
| Peak Torue(N.m) | 0.48 | Rotor Inertia(kg.cm2) | 0.031 |
| Torque Constant(N.M/A) | 0.265 | Torque Constant(V/krpm | 16 |
| Line-line Resistance(Ω) | 16.6 | Length(mm) | 92 |
| Weight(kg) | 0.5 | Encoder line number(ppr) | 1000or2500 |
| Insulation class | F | Safety class | IP65 |
| Temperature | -20ºC-40ºC(unfrozen) | Humidity | Below 90%RH withno condensation |
| Environmental science | away from corrosive, inflammable gas,oil andldust |
Payments
1) We can accept EXW, FOB
2) Payment must be made before shipment.
3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Shipping
1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
2) Most orders will be shipped out within 3-7 working days upon payment confirmation.
3) Shipping normally takes 7-25 working days. Most of the items will delivery in 2 weeks, while there will be a delay for something we cannot control (such as the bad weather). If it happens, just contact us, we will help you check and resolve any problem.
3) Please check the package upon receipt, if there are some damages, please contact us immediately.
Feedback & Refund
1) Feedback is important to us, if you have any problem with our products, please contact us, our technician will give you useful advises.
2) When you have the parcel and not satisfied with the goods or it is other problem, please tell us immediately, and provide us a photo showing the detail.
3) Any reason requiring for all refund. Items must be in original condition and no physical damage. Buyer responsible for all shipping cost.
If you need more information, please contact with us. We will attach great importance to your any problems. Hope we could establish a long-term effective cooperation.
Changzhou Baolong Motor Co., Ltd, established in 2004, is a high-tech enterprise, which is engaged in the development, production and selling kinds of micro motor and motion control systems.
Using high-quality materials, sophisticated manufacturing process and strict quality management our product line includes almost all kinds of high-quality motors, such as hybrid stepper motors, close-loop stepper motors, brushless DC motors, servo motors, etc. Our company is one of the leading manufacturers in domestic and international market, and our products are at the same level of international famous-brand ones. Our products are widely used in computer peripheral devices, communications, stage lighting, textiles, packaging, printing, medical equipment, sewing machines, and other industrial automation systems.

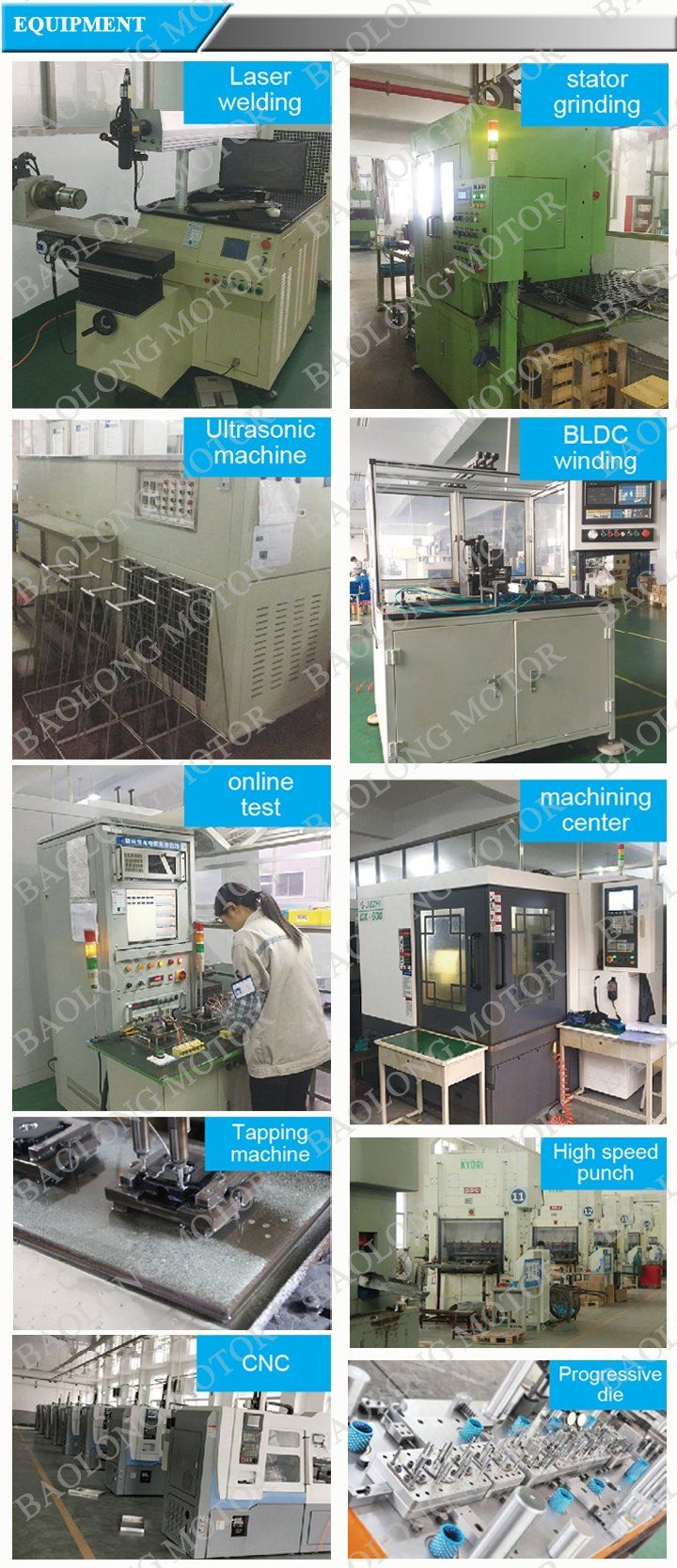

Our company is rich in technical experience, we use advanced production process and testing equipment, and obeys advanced quality management requirements in production, such as ISO9001: 2008, 6 Sigma. Besides, our company also has obtained the CE certificate, and all of our products are RoHS compliant.
With the spirit of "product innovation, high quality, excellent service", our company will continuously focus on micro motor industry, and provide more high-quality products and more professional service for our clients. We try our best to win the client' S trust by our high-quality products, excellent service and reasonable prices. We are becoming the leader of the micro motor industry.
