NEMA17 3D Printer Stepper Motor with 1m Leading Wires

Name: NEMA17 3D Printer Stepper Motor with 1m Leading Wires
Brand: all-electronics-online.com
SKU: 729799885
Availability: InStock
Rating: 4.3 (66 reviews)

Price:	US $ 5-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK42HS40-1704-13A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8 Degree
Motor Length:	40mm
Current:	1.7A
Wires:	Four Laeding Wires
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Other
Operate Mode:	Other
Certification:	CE and RoHS

Product Description

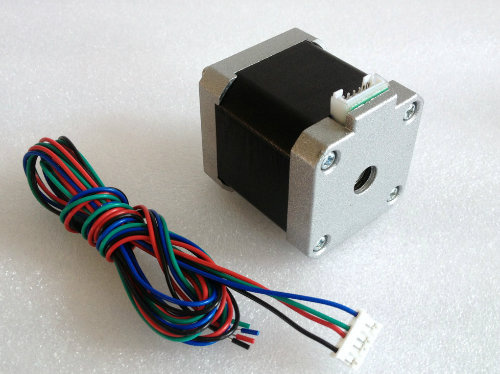

NEMA17 3D Printer Stepper Motor with 1m Leading Wires

42HS40-1704 3D printer stepper motor , 42mm reprap stepper motor ,
with CE and ROHS

Description:
1.8 degree Size 42mm Hybrid stepper motor. 3D Printer stepper motor
42mm size stepper motor , NEMA17 stepping motor,
Small stepping motors, 2 phase 42mm stepper motor, Stepper motor 42mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,
advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HS28-0604	1.8	28	0.6	8	10	1.2	4	130	27	0.15
JK42HS34-1304	1.8	34	1.3	2.4	2.8	2.8	4	160	34	0.22
JK42HS34-1704	1.8	34	1.7	1.2	1.8	2.8	4	160	34	0.22
JK42HS34-0404	1.8	34	0.4	30	35	2.8	4	160	34	0.22
JK42HS34-0406	1.8	34	0.4	30	18	2.1	6	160	34	0.22
JK42HS40-1704	1.8	40	1.7	1.5	2.8	4.0	4	220	54	0.28
JK42HS40-1304	1.8	40	1.3	2.5	5.0	4.0	4	220	54	0.28
JK42HS40-1206	1.8	40	1.2	3.2	2.8	2.8	6	220	54	0.28
JK42HS40-0406	1.8	40	0.4	30	28	2.8	6	220	54	0.28
JK42HS48-1704	1.8	48	1.7	1.8	3.2	4.9	4	260	68	0.35
JK42HS48-1304	1.8	48	1.3	3.2	5.5	4.9	4	260	68	0.35
JK42HS48-2304	1.8	48	2.3	1.2	1.6	4.9	4	260	68	0.35
JK42HS48-0406	1.8	48	0.4	30	38	3.6	6	260	68	0.35

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
