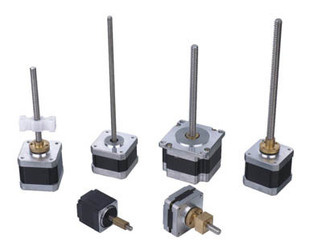

NEMA17 Hybrid Lead Screw Stepper Motor

Name: NEMA17 Hybrid Lead Screw Stepper Motor
Brand: all-electronics-online.com
SKU: 779241375
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	US $ 16.5-21.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42HS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	2.8-12V
Current:	0.6-1.5A
Holding Torque:	2.4-5.2kg.Cm
Resistance:	2.1-30ohm
Wires:	4
Key Word:	Lead Screw Stepper Motor
Frame Size:	42mm*42mm
Body Length:	34mm-60mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Operate Mode:	Drip-Proof
Certification:	CE and RoHS
Brand:	Jkongmotor

Product Description

NEMA17 Hrbrid Lead Screw Stepper Motor

General Specifications:

(ITEM)	(Specification)
Step angle	1.2°
Tempareture Rise	80ºC max
Ambient Temperature Range	-20ºC- +50ºC
Insulation Resistance	100MΩ Min., 500VDC
Dielectric Strength	500 VAC for 1s 3mA
Shaft Radial Play	0.02 Max.(450g-load)
Shaft Axial Play	0.08 Max.(450g-load)
Max. radial force	28N(20mm from the flange)
Max. axial force	10N

Electrical Specification:
42HS34-0404YAL

Phase	2
Step angle	1.8	deg
Voltage	12	v
Current	0.4	A
Resistance	30	ohm
Inductance	45	m.H
Holding torque	2.4	kg.cm
Shaft length	283	mm

42HS40-1004YAL

Phase	2
Step angle	1.8	deg
Voltage	3.9	v
Current	1	A
Resistance	3.9	ohm
Inductance	8.9	m.H
Holding torque	4.8	kg.cm
Shaft length	293	mm

42HS48-1684YAL

Phase	2
Step angle	1.8	deg
Voltage	2.8	v
Current	1.68	A
Resistance	1.65	ohm
Inductance	2.3	m.H
Holding torque	4.4	kg.cm
Shaft length	298	mm

Applications:

Used for robots stepper motor,

Electronic automatic equipment stepping motor,

Medical instrument stepping motor,

Advertising instrument stepper motor,

Lighting& audio equipment stepper motor,

Printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Note: We can also manufacture products according to customer's requirements.

Company Show:

We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

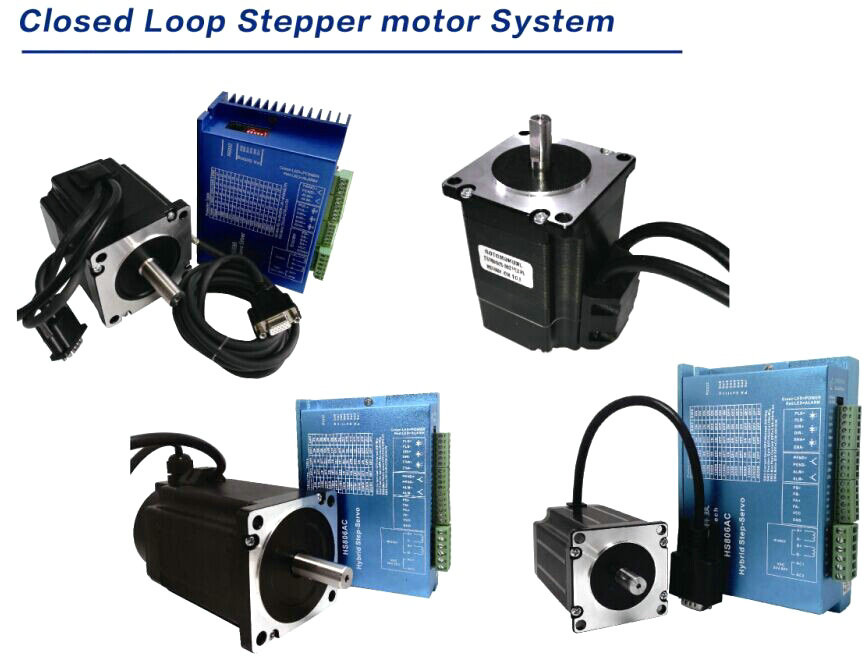

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

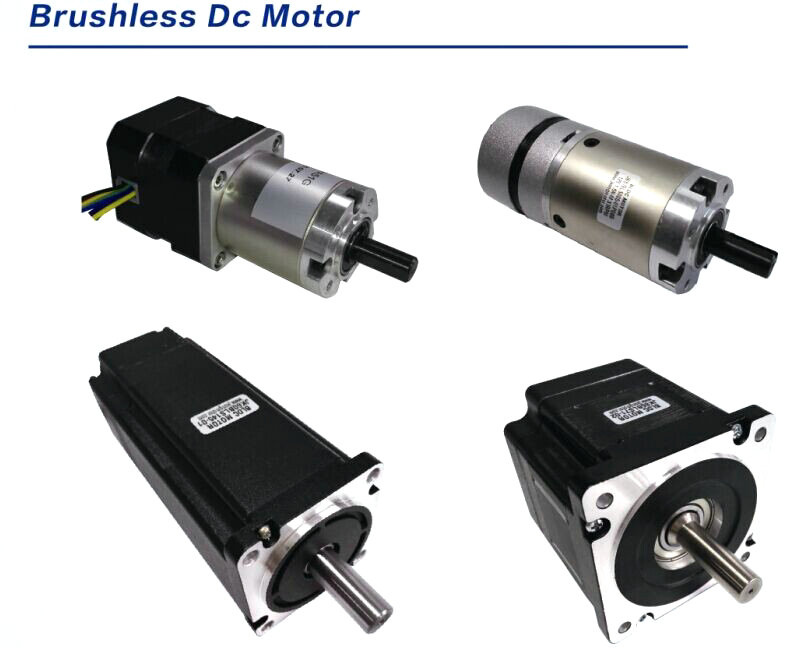

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
