NEMA17 Stepper Motor with Brake, Encoder, Gearbox

Name: NEMA17 Stepper Motor with Brake, Encoder, Gearbox
Brand: all-electronics-online.com
SKU: 840272715
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	US $ 4.55-9/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	jkongmotor
Current /Phase:	1A
Holding Torque:	1.5-7.3kg.Cm
Motor Length:	25-60mm
Step Angle:	1.8 Degree
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Function:	Run
Brand:	Jkong Motor
Certification:	Ce, RoHS
Structure And Working Principle:	Stepper Motor

Product Description

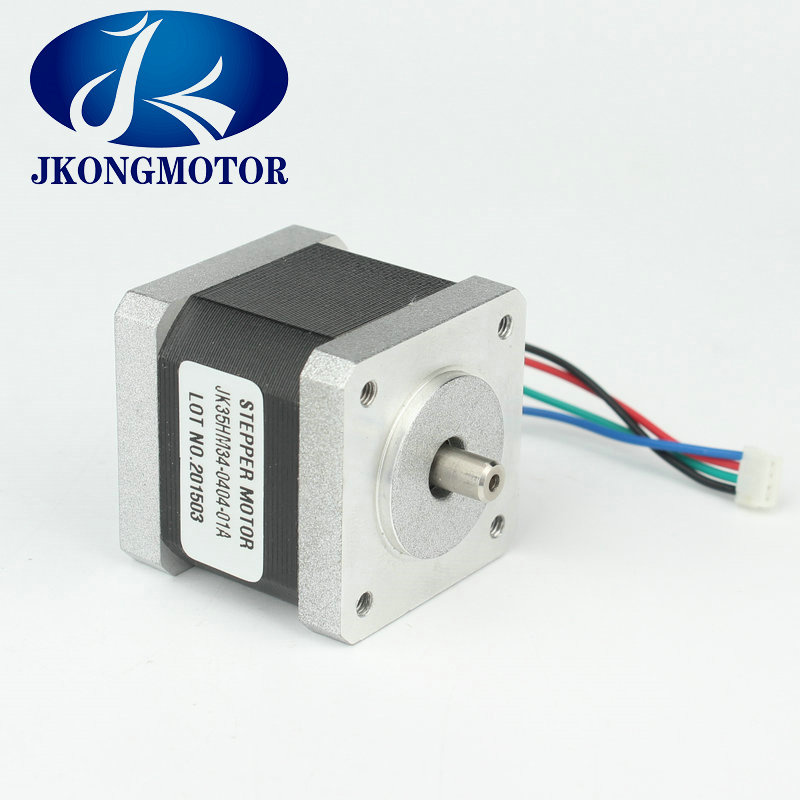

NEMA17 stepper motor with brake, encoder, gearbox
General Specification:

Item	Specifications
Step Angle	1.8°
Temperature Rise	80ºCmax
Ambient Temperature	-20ºC~+50ºC
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HS25-0404	1.8	25	0.4	24	36	1.8	4	75	20	0.15
JK42HS28-0504	1.8	28	0.5	20	21	1.5	4	85	24	0.22
JK42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
JK42HS34-0406	1.8	34	0.4	24	15	1.6	6	120	34	0.22
JK42HS34-0956	1.8	34	0.95	4.2	2.5	1.6	6	120	34	0.22
JK42HS40-0406	1.8	40	0.4	30	30	2.6	6	150	54	0.28
JK42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
JK42HS40-1206	1.8	40	1.2	3	2.7	2.9	6	150	54	0.28
JK42HS48-0406	1.8	48	0.4	30	25	3.1	6	260	68	0.35
JK42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
JK42HS48-1206	1.8	48	1.2	3.3	2.8	3.17	6	260	68	0.35
JK42HS60-0406	1.8	60	0.4	30	39	6.5	6	280	102	0.5
JK42HS60-1704	1.8	60	1.7	3	6.2	7.3	4	280	102	0.5
JK42HS60-1206	1.8	60	1.2	6	7	5.6	6	280	102	0.5

42HS Planetary Gearbox Specifications

Reduction ratio	3.71	5.18	13.76	19.2	26.8	51	71	99.5	139
Number of gear trains	1		2			3
Length(L2) mm	27.3		35			42.7
Max.rated torque kg.cm	20		30			40
Short time permissible torque kg.cm	40		60			80
Weight g	350		450			550

Products of special request can be made according to the customer request !
company information:

our certification:

Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
Audrey Liu

Tel: 0086 519 88372558

Fax: 0086 519 88713769

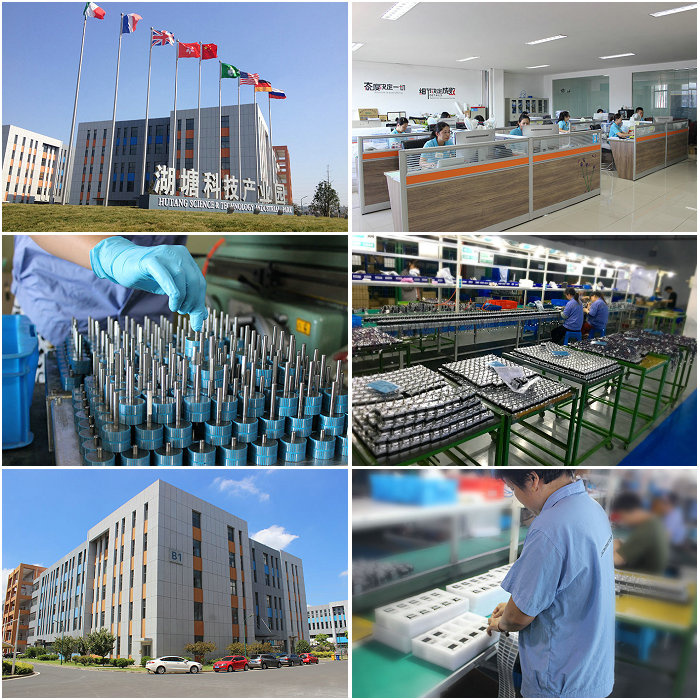

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
