NEMA23 1.8° 57hy2A41-214 Stepping Motor Stepper Motor

NEMA23 1.8° 57hy2A41-214 Stepping Motor Stepper Motor
Price: US $ 9.35-11.29/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: 57hy2A41-214 Stepping Motor
Holding Torque (N·cm±10%): 32
Current/Phase(a): 2.1
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Operate Mode: The Three Single Phase
Type: Hybrid
Certification: SGS
Brand: Sunrise Motor

Product Description

Product Description

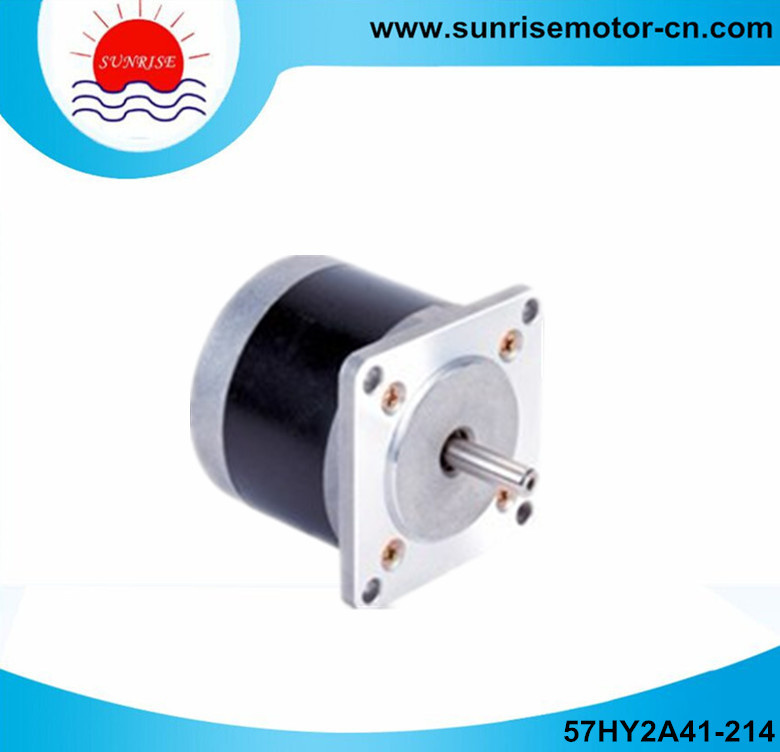

Model:57hy2A41-214
Holding Torque:32N.cm
Current:2.1A
Resistance:0.8Ω
Motor Length:41MM
Weight:450g



Motor are available with different winding and mechanical modification to meet specific applications.
ModelHolding Torque (N·cm±10%)Current/Phase(A)Resistance/Phase (ohms±10%)Inductance/Phase (mH±20%)Detent Torque
(N·cm)		Rotor Inertia
(g-cm 2 )		Length
(mm)		Weight
(g)
57HY2A41-046300.3832303.56041450
57HY2A41-164221.551.83.53.56041450
57HY2A41-214322.10.81.43.56041450
57HY2A41-156241.51.51.43.56041450



Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
