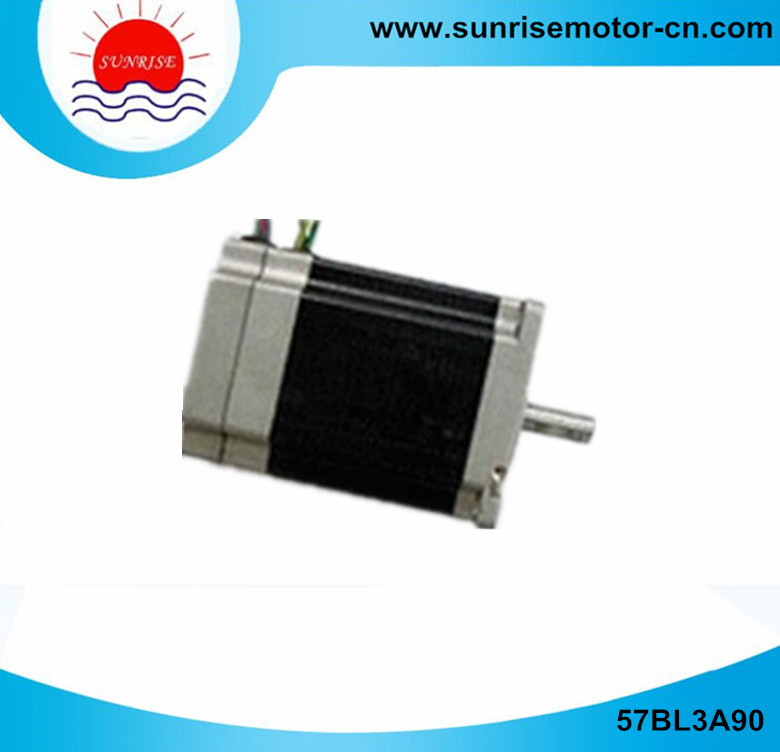

NEMA23 57bl3a90 BLDC Motor Brushless DC Motor

Name: NEMA23 57bl3a90 BLDC Motor Brushless DC Motor
Brand: all-electronics-online.com
SKU: 787359305
Availability: InStock
Rating: 4.5 (102 reviews)

Price:	US $ 60-75/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57bl3a90 BLDC Motor
Voltage:	36VDC/48VDC
Speed:	3000
Application:	Household Appliances
Operating Speed:	Adjust Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brushless
Type:	BLDC
Brand:	Sunrise Motor

Product Description

			57BL3A50		57BL3A70		57BL3A90
Specification		Unit	-A	-B	-B	-C	-B	-C
Rated voltage	U	V	+24	+36	+36	+48	+36	+48
Rated out power	P out	W	62	62	125	125	185	185
Rated speed	n N	rpm	3000
Rated current	I N	A	3.3	2.2	4.4	3.2	6.5	4.8
Rated torque	T N	N.m	0.2	0.2	0.4	0.4	0.6	0.6
Peak current	I P	A	10.5	6.5	13.4	9.8	20	14.9
Peak torque	T p	N.m	0.58	0.6	1.29	1.31	1.9	2
Voltage constant	K E	V/ Krpm	6.23	9.5	9.47	12.7	9.45	12.6
Torque constant	K T	N.m/A	0.069	0.11	0.095	0.134	0.097	0.136
Rotor inertia	J	Kg.cm 2	0.3	0.3	0.6	0.6	0.9	0.9
Number of poles	N P		8	8	8	8	8	8
Winding class			B	B	B	B	B	B
Motor weight		Kg	0.65	0.65	1.0	1.0	1.4	1.4

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
