NEMA23 External Type Linear Stepper Motor Tr8*4 Lead Screw for CNC Machine
| Price: |
US $ 1-50/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
57HSL76-3004 |
| Step Angle: |
1.8 Degree |
| Holding Torque: |
12kg.Cm |
| Current/ Phase: |
3.0A |
| Voltage/ Phase: |
2.85V |
| Diameter Of Leard Screw: |
Tr8 |
| Lead Distance: |
4mm |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Linear |
| Operate Mode: |
2 Phase |
| Certification: |
Ce |
| Brand: |
Jss |
Product Description

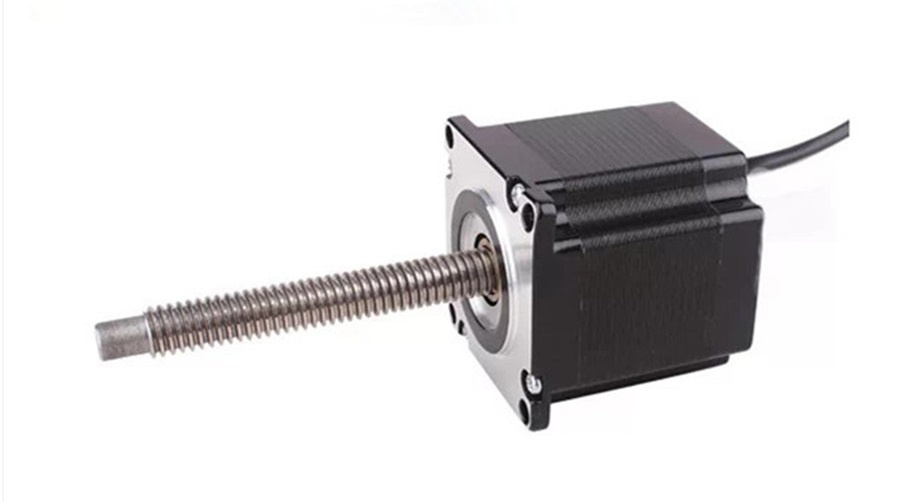

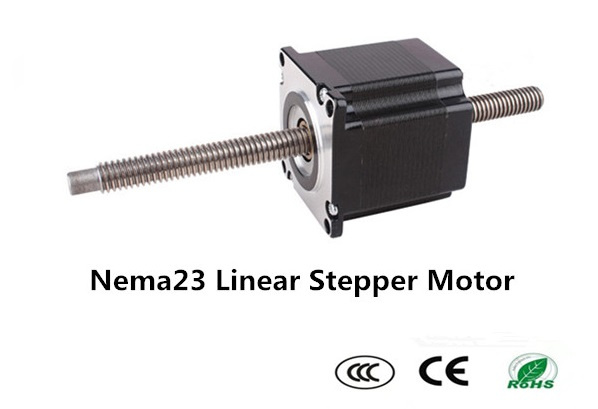

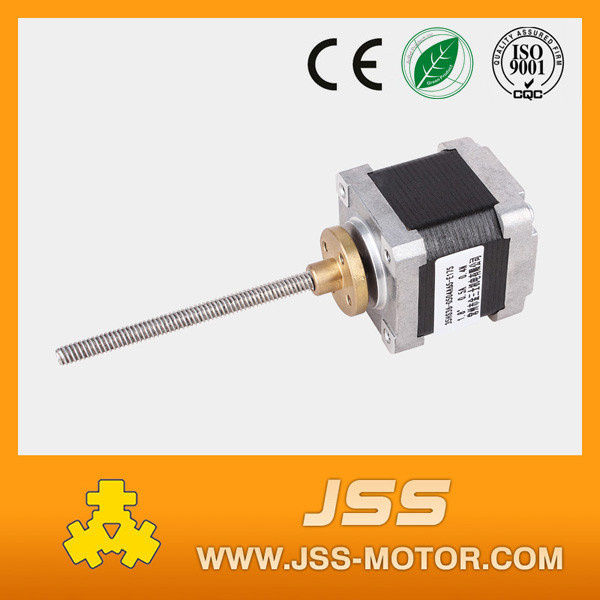

NEMA23 Linear Stepper Motor
Motor Electrical Specification:| Model No | Step
Angle
(°) | Rated
Voltage
(V) | Rated
Current
(A) | Phase
Resistance
(Ω) | Phase
Inductance
(mH) | Holding
Torque
(Kg.cm) | Detent
Torque
(g.cm Max) | Rotor
Inertia
(g.cm²) | Motor
Length
(mm) | Leads
No. | Motor
Weight
(Kg) |
| 57HS41-2004 | 1.8 | 2 | 2 | 1 | 1.2 | 3.2 | 210 | 120 | 41 | 4 | 0.45 |
| 57HS41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 210 | 120 | 41 | 4 | 0.45 |
| 57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 210 | 120 | 41 | 4 | 0.45 |
| 57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 360 | 275 | 51 | 4 | 0.65 |
| 57HS51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 360 | 275 | 51 | 4 | 0.65 |
| 57HS51-2006 | 1.8 | 2 | 2 | 1 | 1.6 | 7 | 360 | 275 | 51 | 6 | 0.65 |
| 57HS56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 400 | 300 | 56 | 4 | 0.7 |
| 57HS56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 400 | 300 | 56 | 4 | 0.7 |
| 57HS56-2006 | 1.8 | 3.6 | 2 | 1.8 | 2.8 | 9 | 400 | 300 | 56 | 6 | 0.7 |
| 57HS64-3004 | 1.8 | 3.9 | 3 | 1.3 | 2.2 | 15 | 500 | 380 | 64 | 4 | 0.8 |
| 57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 680 | 480 | 76 | 4 | 1 |
| 57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 680 | 480 | 76 | 4 | 1 |
| 57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 680 | 480 | 76 | 4 | 1 |
| 57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 700 | 510 | 82 | 4 | 1.2 |
| 57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 700 | 510 | 82 | 4 | 1.2 |
| 57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 1000 | 680 | 100 | 4 | 1.4 |
| 57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| 57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |
Lead Screw Specification:| Diameter | Lead Distance (mm) | Start | Step Length | Applicable Motor |
| M5 | 1.6 | 2 | 0.008 | 35HSL-E,35HSL-N |
| Tr5 | 2 | 2 | 0.01 | 35HSL-E,35HSL-N |
| Tr6.5 | 3 | 2 | 0.015 | 35HSL-E,35HSL-N |
| Tr8 | 1 | 1 | 0.005 | 35HSL-E |
| Tr8 | 2 | 1 | 0.01 | 35HSL-E |
| Tr8 | 4 | 2 | 0.02 | 35HSL-E |
| Tr8 | 8 | 4 | 0.04 | 35HSL-E |

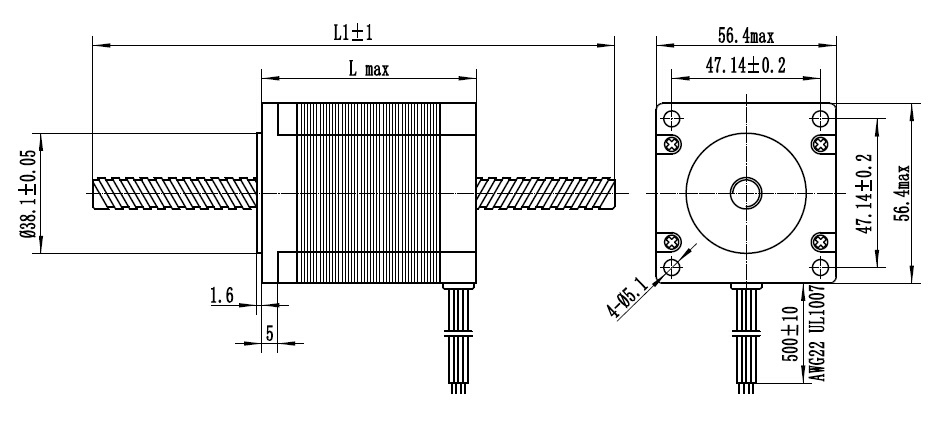

External Type Nema23 Linear Stepper Motor
Dimension: (Unit=mm)
Non-captive Type Nema23 Linear Stepper Motor
Dimension: (Unit=mm)
