| Prod Model: |
57BYGH507 |
| Motor Series: |
57 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
27mm (1.06 in) |
| Shaft: |
Plain Shaft(Customizable) |
| Connectors: |
Connectors, Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Type: |
Magnetic-Electric |
| Brand: |
Shengyang |
Product Description

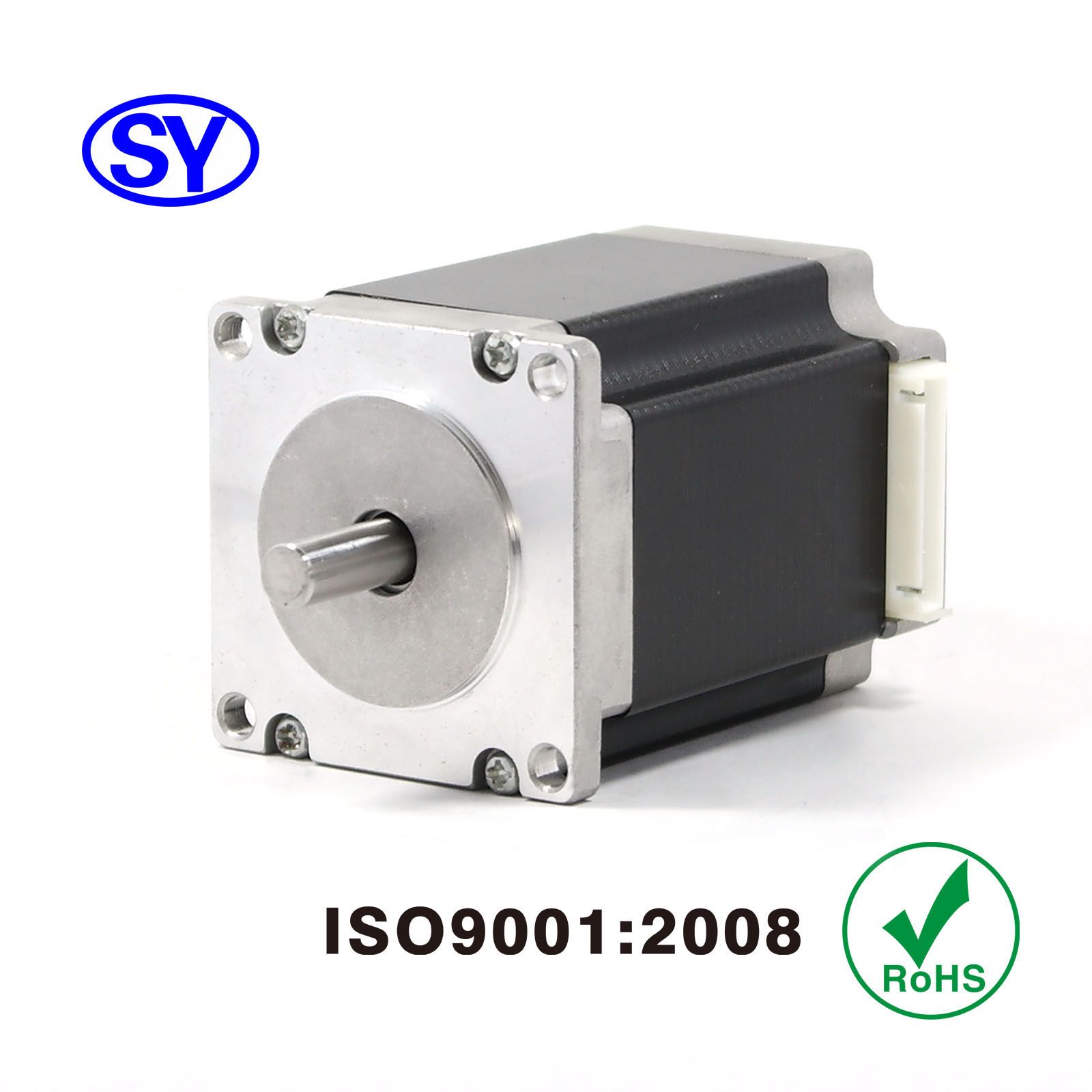

NEMA23 High Quality Stepper Motor
Features:
High Torque
High Accuracy
Smooth Movement
Products Description
1. Specifications:
Shaft End Length: 27mm (1.08in)
Shaft: Plain Shaft
Connectors: Connectors, Lead Wires
Step Angle: 1.8°± 5% full step, no load
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100mΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA
Notes:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, we will make the best price for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, our raw materials comply with RoHS, all of the derived motors can be customized, welcome to contact us for for details.
Contacts: Mr. Kanix Ik
Mobile: (+86) 1552 1524 907
Homepage: shengyangmotor.en.made-in-china.com
Motor Series
&
Length | Motor Model | Holding Torque | Shaft
Length | Resistance
per
Phase | Inductance
per
Phase | Rated Voltage/
Rated Current |
| mNm oz-in | mm in | ohm | mH | V / A |
57BYGH0
31 mm
(1.23 in) | 57BYGH010-B-27 | 840 119 | 27 1.07 | 10 | 23 | 1.2 |
57BYGH1
52 mm
(2.05 in) | 57BYGH103-1 | 850 120 | 24 0.95 | 8 | 17 | 8/1.0 |
57BYGH2
56 mm
(2.21 in) | 57BYGH220-B-21 | 1240 175 | 21 0.83 | 2.4 | 5.8 | 2 |
57BYGH3
49 mm
(1.93 in) | 57BYGH301-A-27 | 1020 145 | 27 1.07 | 10 | 23 | 0.8 |
57BYGH4
49mm
(1.93 in) | 57BYGH401-B-27 | 900 128 | 27 1.07 | 8 | 33 | 0.6 |
57BYGH5
77 mm
(3.04 in) | 57BYGH510-C-31 | 930 132 | 31 1.23 | 0.76 | 3.3 | 1.2 |
57BYGH6
65 mm
(2.56 in) | 57BYGH601-C-22 | 1260 178 | 22 0.87 | 3.5 | 5.7 | 1.5 |
57BYGH7
98 mm
(3.86 in) | 57BYGH701-C-31 | 1380 195 | 31 1.23 | 1 | 3 | 1.5 |
57BYGH9
46 mm
(1.82 in) | 57BYGH910-B-27 | 1480 210 | 27 1.07 | 8.5 | 26 | 2
|
Established in 2011, Shengyang Motor Co., Ltd is a professional manufacturer which produces, researches, develops, and sells various of stepping motors. It is well located in Zhongshan, Guangdong--in the Pearl River Delta where is very beautiful and wealthy with convenient communication.
Shengyang Motor constantly focuses on technological specification, unswervingly insists in providing high-quality products and best service and keeps firmly the service concept: To satisfy our clients is our eternal tenet. Shengyang Motor Co., Ltd has the advanced production facility, production line, quality controlled system and testing equipment for stepping motor.
Especially in producing, developing and selling precise motors, Shengyang Motor has developed a wide range of products which are widely used in laser light, stage lighting, printer, currency detector, industry control, monitors and so on. Being a supplier of professional precise stepping motor facing the nation and viewing the world with annual capacity more than 4, 000, 000 sets, Shengyang Motor enhances the quality of products constantly by absorbing the experience of motor manufacturer both at home and abroad, and introducing the latest technology and equipment to ensure the constant development of the company. Apart from providing standard products (following the national standard or international standard), we can also customize products according to the requirements of customers.
With high-quality products and supports from a large number of suppliers and customers, Shengyang Motor won great credit in stepping industry and is becoming a famous brand in the field.
Shengyang Motor insists on consolidating its good reputation by stabilizing quality and reacting quickly to meet promises that we make to all customers.
As a young, energetic, practice and creative team, Shengyang Motor emphasizes the service idea of thinking all customers' profit firstly and highlights making the best cost performance programme. Shengyang Motor unswervingly insists the principle of "humanist, introducing and optimizing technology, stabling quality, moving customer, base on dometic and following the world" to serve customers all over the world.
