NEMA23 Hybrid Stepper Motor Price with Encoder, Brake and Gearbox
| Price: |
US $ 6.95-50/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JK57HS |
| Current /Phase: |
1-4.2A |
| Holding Torque: |
0.39-3.1kg.Cm |
| Motor Length: |
41-112mm |
| Step Angle: |
1.8 Degree |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Compound |
| Function: |
Run |
| Brand: |
Jkong Motor |
| Certification: |
Ce, RoHS |
| Structure And Working Principle: |
Stepper Motor |
Product Description

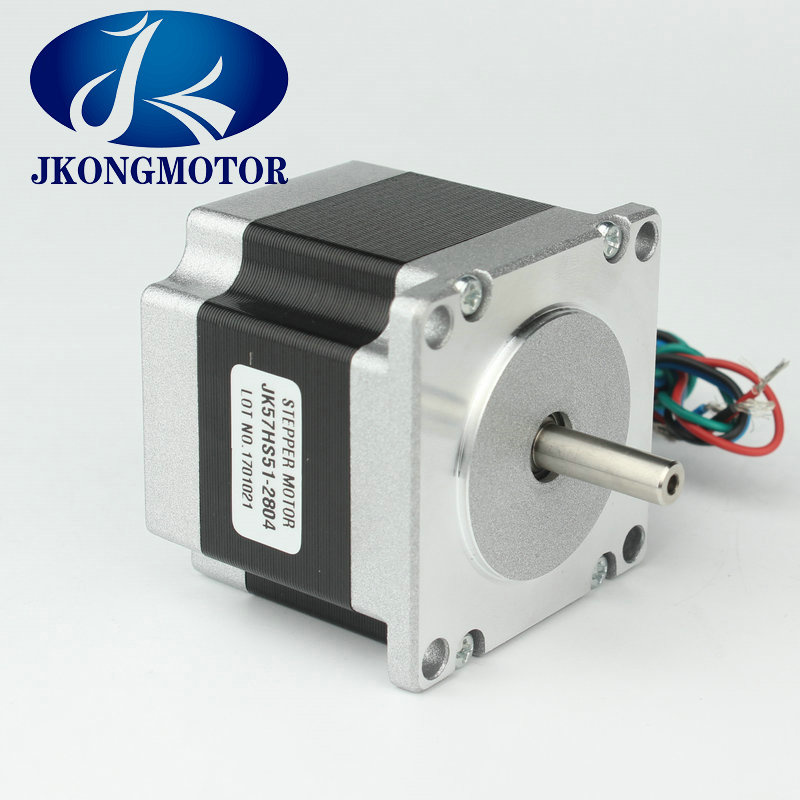

NEMA23 hybrid stepper motor with encoder, brake and gearboxGeneral Specification:| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80ºCmax |
| Ambient Temperature | -20ºC~+50ºC |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
Electrical Specification: | Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| | ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg |
| JK57HS41-1006 | 1.8 | 41 | 1 | 7.1 | 8 | 0.48 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2008 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 8 | 250 | 150 | 0.47 |
| JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2008 | 1.8 | 51 | 2 | 1.8 | 2.7 | 0.9 | 8 | 300 | 230 | 0.59 |
| JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 300 | 230 | 0.59 |
| JK57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2108 | 1.8 | 56 | 2.1 | 1.8 | 2.5 | 1 | 8 | 350 | 280 | 0.68 |
| JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 350 | 280 | 0.68 |
| JK57HS64-2804 | 1.8 | 64 | 2.8 | 0.8 | 2.3 | 1 | 4 | 400 | 300 | 0.75 |
| JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-3008 | 1.8 | 76 | 3 | 1 | 1.8 | 1.5 | 8 | 600 | 440 | 1.1 |
| JK57HS82-3004 | 1.8 | 82 | 3 | 1.2 | 4 | 2.1 | 4 | 1000 | 600 | 1.2 |
| JK57HS82-4008 | 1.8 | 82 | 4 | 0.8 | 1.8 | 2 | 8 | 1000 | 600 | 1.2 |
| JK57HS82-4204 | 1.8 | 82 | 4.2 | 0.7 | 2.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS100-4204 | 1.8 | 100 | 4.2 | 0.75 | 3 | 3 | 4 | 1100 | 700 | 1.3 |
| JK57HS112-3004 | 1.8 | 112 | 3 | 1.6 | 7.5 | 3 | 4 | 1200 | 800 | 1.4 |
| JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |
Brake Specification:| Model | BK2 |
| Torque(N-m) | 2 |
| Voltage(V) | 24V |
| Length(mm) | 32 |
Planetary Gearbox Specification:| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 121 | 154 | 187 | 220 | 260 | 307 |
| Number of gear trains | 1 | 2 | 3 | 4 |
| Length(mm) | 37.8 | 49.5 | 60.8 | 71.9 |
Max.rated torque(N.m) | 3 | 12 | 24 | 30 |
Short time permissible torque(N.m) | 9 | 36 | 72 | 90 |
| Efficiency( %) | 90% | 81% | 73% | 66% |
| Weight(g) | 489 | 681 | 871 | 1066 |
Screw rod Specification:| Screw Diameter(mm) | Screw Lead(mm) | Screw Pitch(mm) | Travel per step(mm) | Screw Diameter(mm) | Screw Lead(mm) | Screw Pitch(mm) | Travel per step(mm) |
Tr8
| 1 | 1 | 0.005 |
Tr8
| 10 | 2 | 0.05 |
| | 2 | 2 | 0.01 | | 12 | 2 | 0.06 |
| | 3 | 1.5 | 0.015 | | 14 | 2 | 0.07 |
| | 4 | 2 | 0.02 | | | | |
| | 8 | 2 | 0.04 | | | | |
Screw Diameter(mm) |
Screw Lead(mm) |
Screw Pitch(mm) |
Travel per step(mm) |
Screw Diameter(mm) |
Screw Lead(mm) |
Screw Pitch(mm) |
Travel per step(mm) |
Tr10 | 2 | 2 | 0.01 |
Tr12
| 2 | 2 | 0.01 |
| | 3 | 1.5 | 0.015 | | 3 | 3 | 0.015 |
| | 4 | 2 | 0.02 | | 8 | 2 | 0.04 |
| | 8 | 2 | 0.04 | | 10 | 2 | 0.05 |
| | 10 | 2 | 0.05 | | | | |
| | 12 | 2 | 0.06 | | | | |
Products of special request can be made according to the customer request !company information:
our certification:
Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.Audrey Liu
Tel: 0086 519 88372558
Fax: 0086 519 88713769
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
