Changzhou Sunrise Electric Motor Co., Ltd.
Changzhou Sunrise Electric Motor Co., Ltd. >> NEMA34 86bl3a70 DC Motor Electric Motor Brushless DC Motor

NEMA34 86bl3a70 DC Motor Electric Motor Brushless DC Motor

NEMA34 86bl3a70 DC Motor Electric Motor Brushless DC Motor
Price: US $ 43.11-56.83/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: 86bl3a70 Brushless DC Motor
Voltage: 36VDC/310VDC
Speed: 3000
Application: Household Appliances
Operating Speed: Adjust Speed
Excitation Mode: Shunt
Structure And Working Principle: Brushless
Type: BLDC
Brand: Sunrise Motor

Product Description

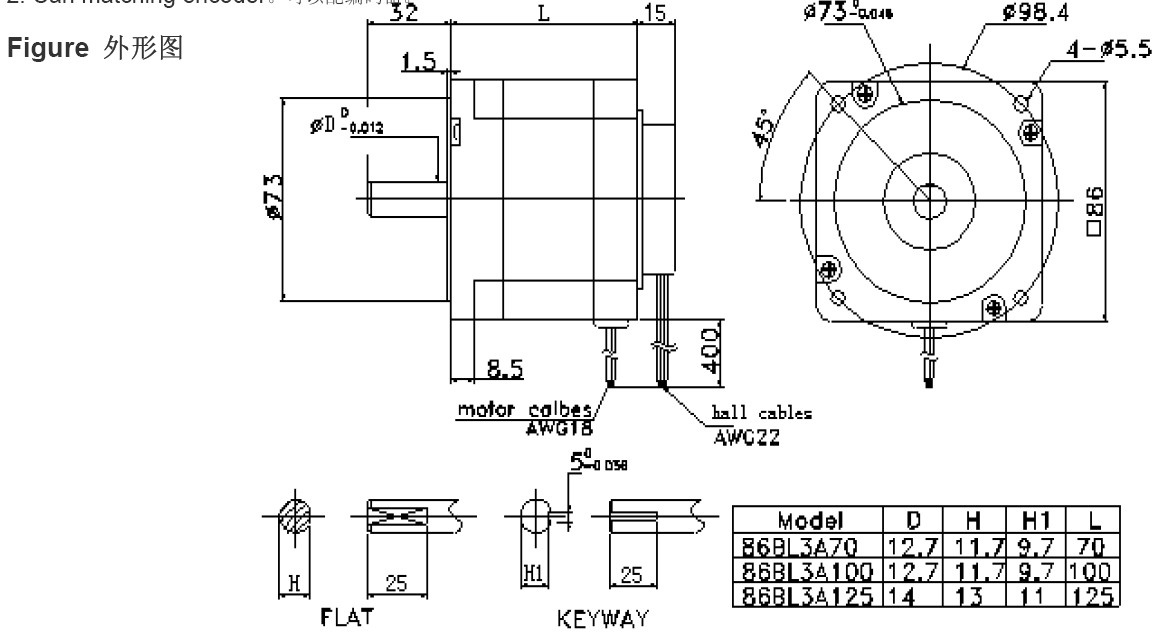

   86BL3A70 86BL3A100 86BL3A125
Specification unit  -B -E -E -C
Rated voltage U V 36 310 310 310
Rated out power P out W 220 220 440 660
Rated speed n N rpm 3000
Rated currentI N A 7.6 0.82 1.65 2.5
Rated torque T N N.m 0.7 0.7 1.4 2.1
Peak current I P A 21 2 5 7.6
Peak torque T p N.m 2 2.2 4.5 5.1
Voltage constant K E V/ Krpm 9.1 84 85 85
Torque constant K T N.m/A 0.093 0.85 0.9 0.92
Rotor inertia J Kg.cm 2 0.8 0.8 1.6 2.4
Number of poles N P  8 8 8 8
Winding class   B B B B
Motor weight  Kg 1.85 1.85 2.6 3.95

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
