Changzhou Sunrise Electric Motor Co., Ltd.
Changzhou Sunrise Electric Motor Co., Ltd. >> NEMA42 1.8° 110HS2a100-504 Stepping Motor Stepper Motor

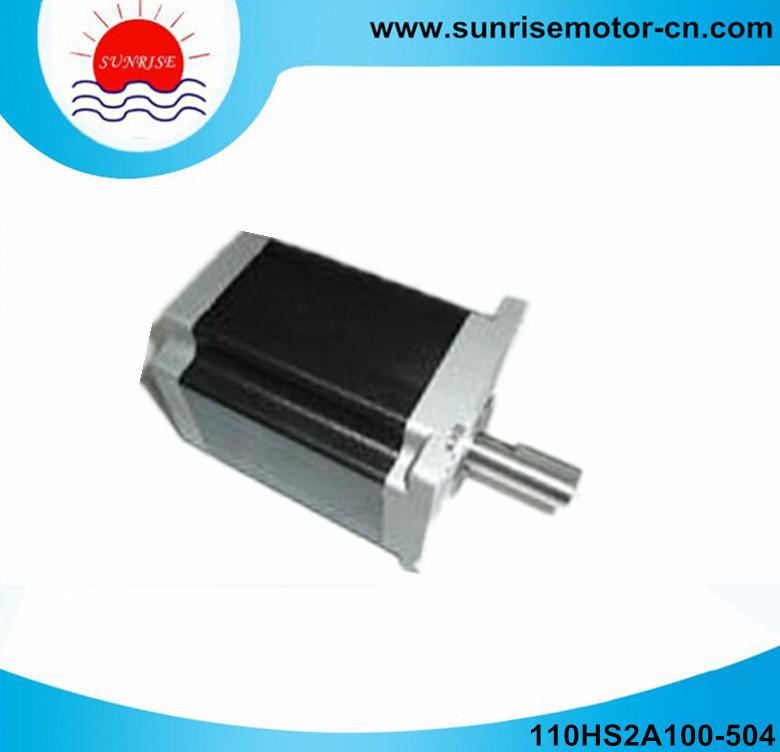

NEMA42 1.8° 110HS2a100-504 Stepping Motor Stepper Motor

NEMA42 1.8° 110HS2a100-504 Stepping Motor Stepper Motor
Price: US $ 62.58-70.97/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: 110HS2a100-504 Stepping Motor
Holding Torque (N·m±10%): 12.7
Current/Phase(a): 5
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Operate Mode: Three Phase Double Beat
Application: Mechanical Equipment
Type: Hybrid
Certification: SGS
Brand: Sunrise Motor

Product Description

Product Description
Model: 110HS2A100-504
Holding torque: 12.7N. M
Current: 5A,
Resistance: 0.95ohms
Inductance: 15mH
Length: 99mm,
Wire: 4
Weight: 5kg,


Motor are available with different winding and mechanical modification to meet specific applications.
ModelHolding
Torque (N·m±10%)		Current
/Phase
(A)		Resistance
/Phase
(ohms±10%)		Inductance
/Phase
(mH±20%)		Rated
Torque
(N·m)		Rotor
Inertia
(g-cm 2)		Length
(mm)		Weight
(Kg)
110HS2A100-50412.75.00.9515125500995.0
110HS2A150-654216.51.1518.920110001508.4
110HS2A165-604266.50.651424130001659.5
Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
