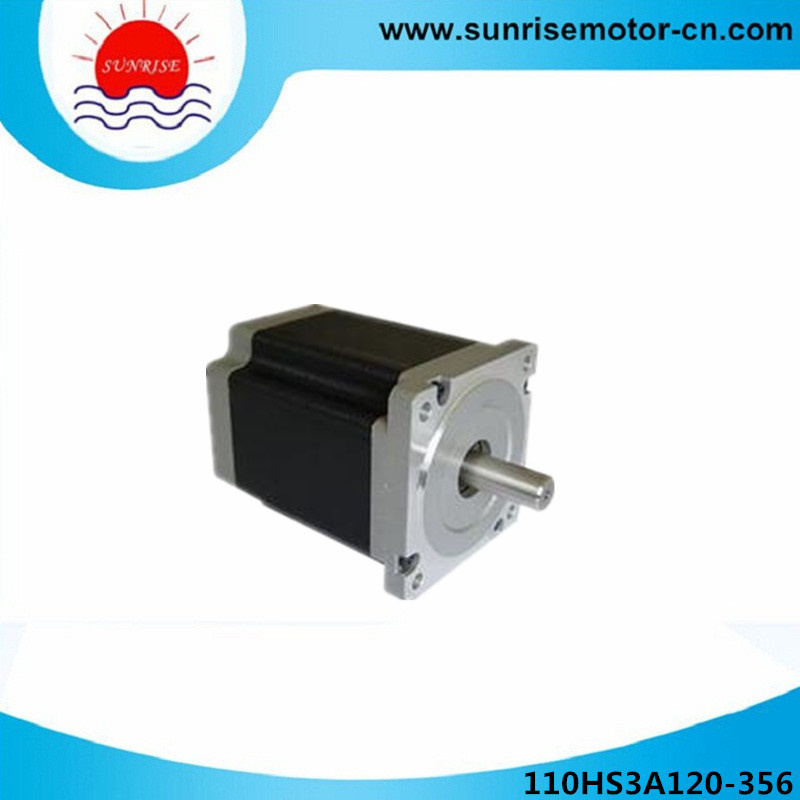

NEMA42 110HS3a120-356 3-Phase Stepping Motor Stepper Motor

NEMA42 110HS3a120-356 3-Phase Stepping Motor Stepper Motor
Price: US $ 69.03-77.42/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: 110HS3a120-356 3-Phase Stepping Motor
Holding Torque (N·m±10%): 9
Current/Phase(a): 3.5
Number Of Stator: Three-Phase
Excitation Mode: HB-Hybrid
Operate Mode: The Three Single Phase
Application: Mechanical Equipment
Number Of Poles: 3phase
Type: Hybrid
Certification: SGS
Brand: Sunrise Motor

Product Description

Product Description
Model: 110hs3a120-356
Holding torque: 9N. M
Current: 3.5A
Resistance: 3.65ohms
Inductance: 19.2mH
Length: 120mm,
Weight: 6.5kg,


Motor are available with different winding and mechanical modification to meet specific applications.
ModelHolding Torque (N·m±10%)Current /Phase (A)Resistance
/Phase (ohms±10%)		Inductance
/Phase (mH±20%)		Rated
Torque
(N·m)		Rotor
Inertia
(Kg-cm2)		Length
(mm)		Weight
(Kg)
110HS3A120-35693.53.6519.288.51206.5
110HS3A140-42613.54.23.2221210.51408
110HS3A170-496174.92.020151417010
Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
