NEMA51 3phase AC Servo Motor with Encoder

Name: NEMA51 3phase AC Servo Motor with Encoder
Brand: all-electronics-online.com
SKU: 766057185
Availability: InStock
Rating: 4.5 (28 reviews)

Price:	US $ 80-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	51MSXE2202625
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	10 A
Rated Voltage(VAC):	220 V
Rated Speed:	2500rpm
Rated Torque:	10 N.M
Rated Power:	2600 W
PPR:	2500
Motor Length:	221 mm
Safety Class:	IP65
Number Of Stator:	Three-Phase
Function:	Driving
Brand:	Baolong
Certification:	CE

Product Description

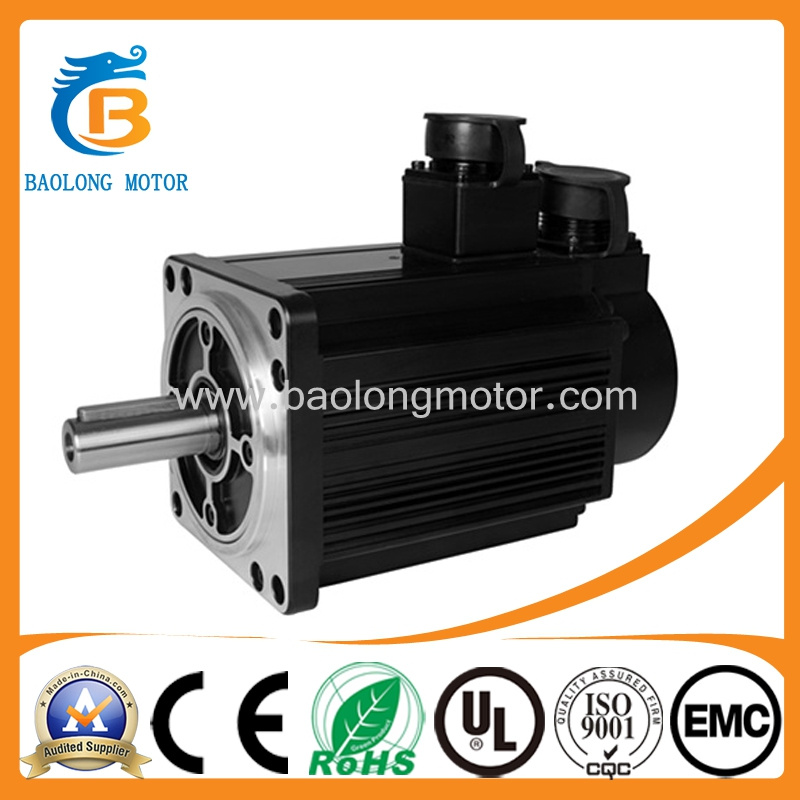

NEMA51 3phase AC Servo Motor with Encoder

Item Specifications:

Motor Model		51MSXE2202625
Number of Phase		3
Number of Poles		8
Rated Voltage(VDC)		220
Rated Speed(Rpm)		2500
Rated Torque		10
Rated Power(w)		2600
Reted Current(A)		10
Peak Current(A)		25
Peak Torue(N.m)		25
Rotor Inertia(kg.cm2)		19.4
Torque Constant(N.M/A)		1.0
Torque Constant(V/krpm		70
Line-line Resistance(Ω)		0.73
Length(mm)		221(278)
Weight(kg)		11.5
Encoder line number(ppr)		1000or2500
Insulation class		F
Safety class		IP65
Temperature		-20ºC-40ºC(unfrozen)
Humidity		Below 90%RH withno condensation
Environmental science		away from corrosive, inflammable gas,oil andldust

5.Payments
1) We can accept EXW, FOB
2) Payment must be made before shipment.
3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.

6.Shipping
1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
2) The orders will be shipped out within 30 working days upon payment confirmation.
3) Please check the package upon receipt, if there are some damages, please contact us immediately.
If you need more information, please contact with us. We will attach great importance to your any problems. Hope we could establish a long-term effective cooperation.

Changzhou Baolong Motor Co., Ltd, established in 2004, is a high-tech enterprise, which is engaged in the development, production and selling kinds of micro motor and motion control systems.

Using high-quality materials, sophisticated manufacturing process and strict quality management our product line includes almost all kinds of high-quality motors, such as hybrid stepper motors, close-loop stepper motors, brushless DC motors, servo motors, etc. Our company is one of the leading manufacturers in domestic and international market, and our products are at the same level of international famous-brand ones. Our products are widely used in computer peripheral devices, communications, stage lighting, textiles, packaging, printing, medical equipment, sewing machines, and other industrial automation systems.

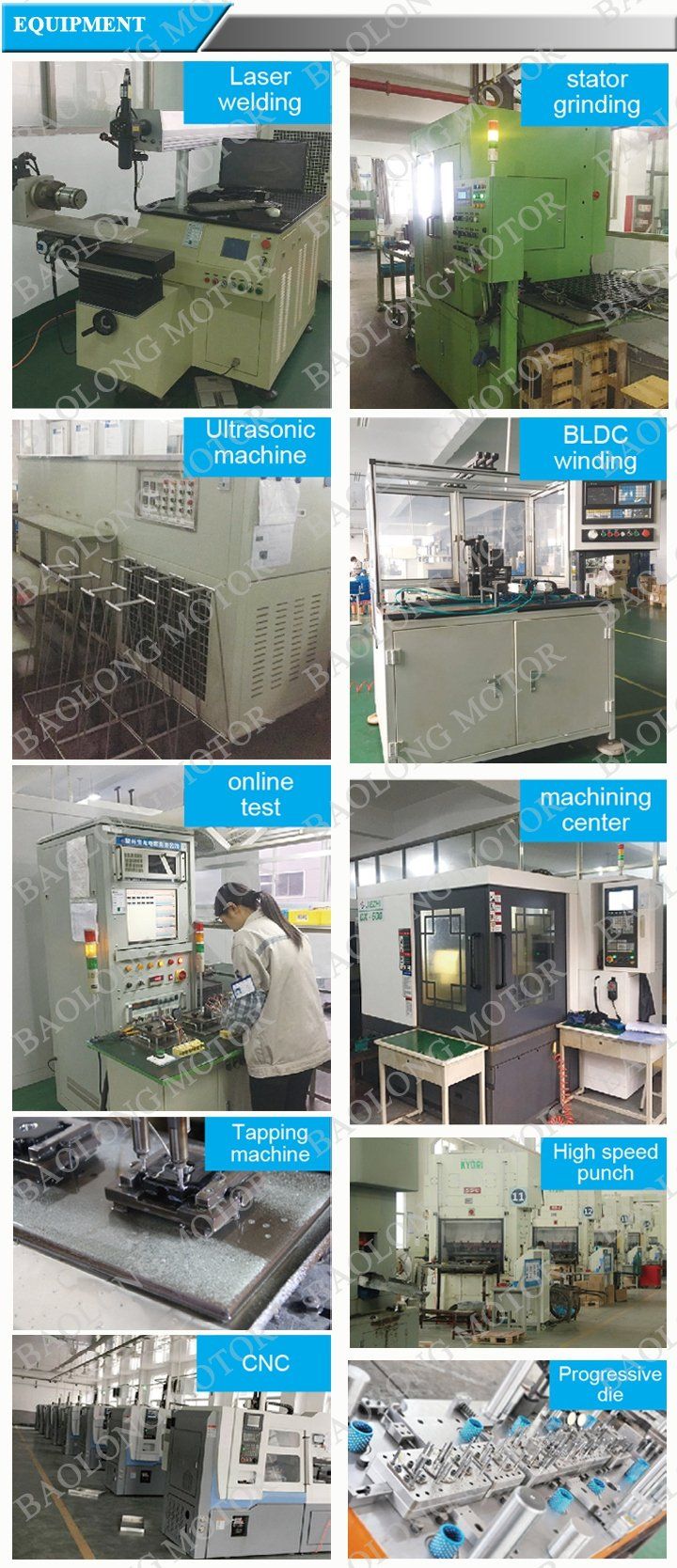

Our company is rich in technical experience, we use advanced production process and testing equipment, and obeys advanced quality management requirements in production, such as ISO9001: 2008, 6 Sigma. Besides, our company also has obtained the CE certificate, and all of our products are RoHS compliant.

With the spirit of "product innovation, high quality, excellent service", our company will continuously focus on micro motor industry, and provide more high-quality products and more professional service for our clients. We try our best to win the client' S trust by our high-quality products, excellent service and reasonable prices. We are becoming the leader of the micro motor industry.
