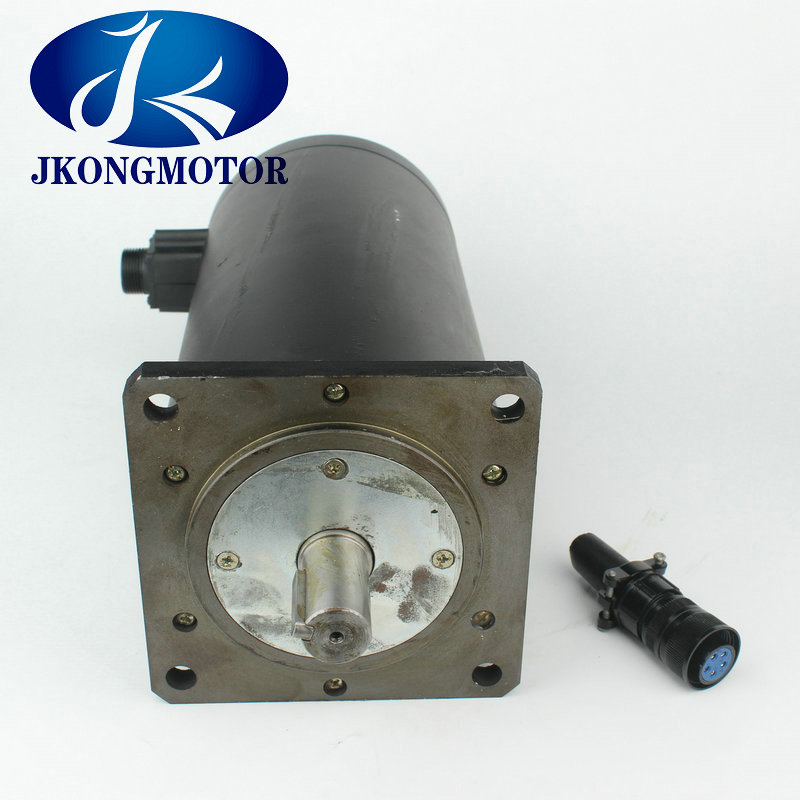

NEMA52 130mm 2 Phase Hybrid Stepper Motor

Name: NEMA52 130mm 2 Phase Hybrid Stepper Motor
Brand: all-electronics-online.com
SKU: 838327675
Availability: InStock
Rating: 4.9 (107 reviews)

Price:	US $ 145-215/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK130H
Name:	NEMA52 Stepper Motor
Length:	Custom
Max Axial Force:	60n
Max. Radial Force:	220n
Label:	Custom
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Application:	CNC Machine
Operate Mode:	Operate with a Motor Drive
Certification:	Ce, RoHS, SGS
Brand:	Jingkong

Product Description

130mm(NEMA52) 2phase hybrid stepper motor
General Specification:

Item	Specifications
Step Angle	1.8°
Temperature Rise	80ºCmax
Ambient Temperature	-20ºC~+40ºC
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	1000VAC 50Hz 2mA 1minute
Insulation Class	B

Electrical Specification:

Model No.	Operating Voltage	Rated Current	Resistance	Inductance	Holding Torque	Noload Frequency	Starting Frequency	Weight	Length
	VDC	A	Ω	mH	N.m	No.	g.cm	kg	mm
JK130HS173-6004	80~325	6	0.75	12.6	25	25000	2300	13.3	173
JK130HS229-6004	80~325	6	0.83	13.2	30	25000	2300	18	229
JK130HS257-7004	80~325	7	0.73	11.7	40	23000	2200	19	257
JK130HS285-7004	80~325	7	0.66	10	50	23000	2200	22.5	285

Packing:

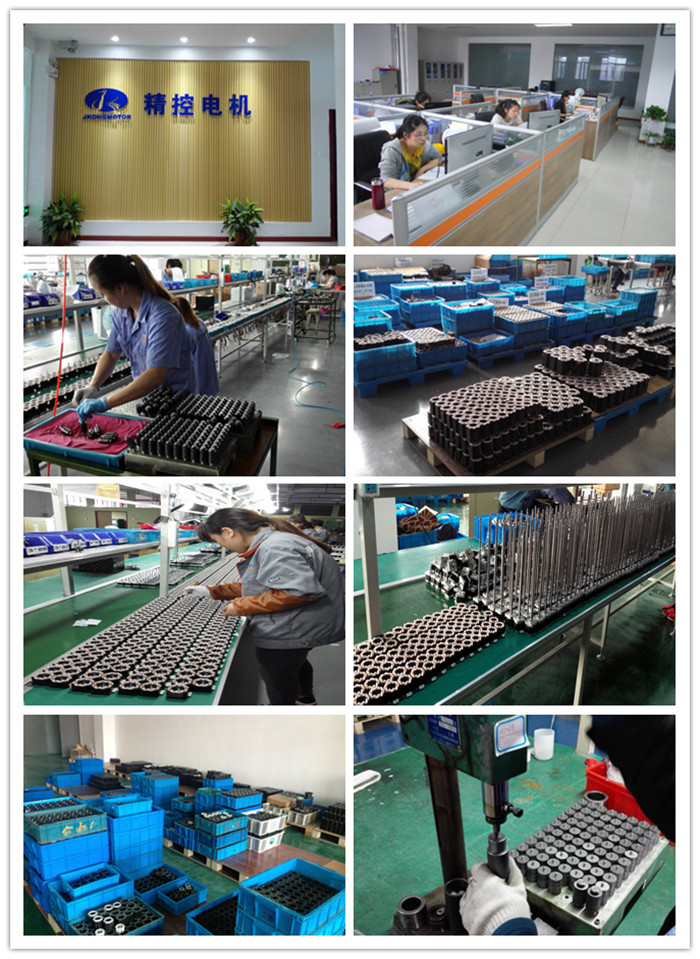

Our company:

Products of special request can be made according to the customer request !

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
