| Prod Model: |
68SSTE483030-SC1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Length: |
123 mm |
| Rated Volatge: |
48 / VDC |
| Rated Current: |
8 A |
| Rated Torque: |
0.955 N.M |
| Rated Power: |
300 W |
| Application: |
Textile Machine |
| Operating Speed: |
High Speed |
| Excitation Mode: |
Shunt |
| Structure And Working Principle: |
Brushless |
| Casing Protection: |
Other |
| Type: |
Other |
| Certification: |
CE |
| Brand: |
Baolong |
Product Description
Baolong's brushless DC motor is an innovative combination of high technology from domestic and abroad. It has lower noise, smaller vibration and longer using life compare to other products in the market.
1,Series

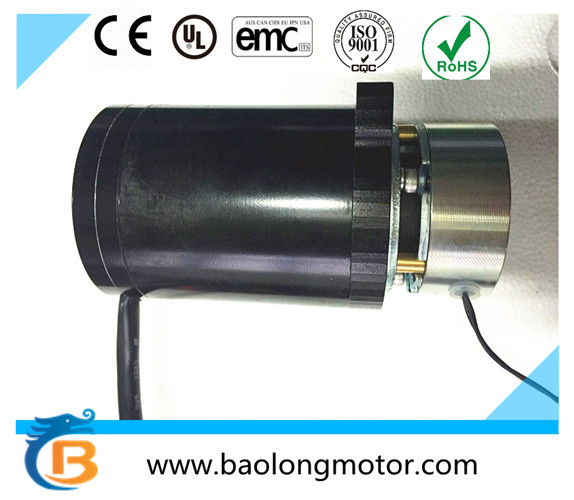

Motor model: 68SSTE483030-SC1
Place of Origin: JIANGSUCHANGZHOU
Brand Name: BAOLONG
Certification: IOS9001,CE,UL,EMC
2,Description
We are a lead motor manufacture in China. Our products range over HB stepper motor, BLDC motor, servo motors and driver systems.
1) Our products have good quality and pretty competitive price.
2) We can do custom-made changes as customers' requirements.
3,Application
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.
4,Item Specifications
| Motor Model | 68SSTE483030-SC1 |
| Number of Phase | 3 |
| Number of Poles | 8 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 3000 |
| Rated Torque | 0.955 |
| Rated Power(w) | 300 |
| Reted Current(A) | 8 |
| Peak Current(A) | 9.6 |
| Peak Torue(N.m) | 1.15 |
| Rotor Inertia(kg.cm2) | 0.75 |
| Torque Constant(N.M/A) | 0.115 |
| Torque Constant(V/krpm | 12.08 |
| Line-line Resistance(Ω) | 0.36 |
| Length(mm) | 123 |
| Weight(kg) | 4.5 |
| Insulation class | B |
| Safety class | IP65 |
| Temperature | -20ºC-40ºC(unfrozen) |
| Humidity | Below 90%RH withno condensation |
| Environmental science | away from corrosive, inflammable gas,
oil andldust |
