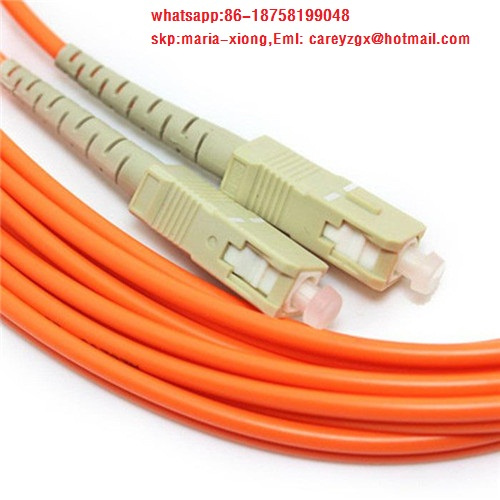

Network&Communication Accessories Single-Mode Fiber Patch Cord

Prod Model:	SC PC
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

·         Type: Fiber Optic Jumper
·         Material Shape: Round Wire
·         Allowed Tensile Strength: 1000N<10000N
·         Certification: RoHS
·         Sheath Material: PVC
·         Length: Standard or Customer Required
·         Trademark: Kingda or OEM
·         Specification: patch jumper
·         HS Code: 854470000
·         Application: Communication
·         Connection Structure: Jumper
·         Allowed Lateral Pressure: 100(N/100mm)<1000(N/100mm)
·         Core: Single Core
·         Brand: Kingda or Customized
·         Color: Yellow Jacket
·         Cores: Simplex
·         Transport Package: Box
·         Origin: Ningbo, China

Item	Single Mode	Multi Mode
Insertion Loss	<=0.2dB	<=0.3bB
Return Loss	PC≥50dB, UPC≥55dB, APC≥60dB
Insert-pull Test	1000 times
Repeatability	<=0.1
Tensile strength	≥10KG
Operating Temperature	-40ºC ~ +85ºC
Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um	127um concentricity deviations:<=3um
Suitable Fiber	9/125um	50/125um,62.5/125um

Features:
·          Telcordia's GR-326-Core, IEC Standard
·          Green Production, RoHS Standard
·          Excellent Polished and 100% tested.
·          High stability various environments
·         Customize order available
·         Insertion Loss:  PC≤0.2dB, UPC≤0.2dB, APC≤0.3dB ; Typical0.1dB;
·         Return Loss:  SM   PC≥50dB, UPC≥55dB, APC≥65dB;   MM  PC≥35dB, UPC≥35dB
·         Interchangeability: ≤0.2dB
·         Salt Spray : ≤0.2dB
·         Repeatability : (1000 times)  ≤0.1dB
·         Vibration: (550Hz  1.5mm) ≤0.1dB
·         High Temperature : ( +85 sustain 100 hours) ≤0.2dB
·         Low Temperature : (-40 sustain 100 hours) ≤0.2dB
·         Temperature Circularly: (-40+85 sustain 100 hours)  ≤0.2dB
·         Humidity : (+25+65 93 R.H.100 hours)   ≤0.2db
·         Apex Offset: 0μm≤≤50μm
·         Radius of Curvature: 7mm≤≤25mm
·         Cable TypeSimplex, Duplex, Fan-Out;

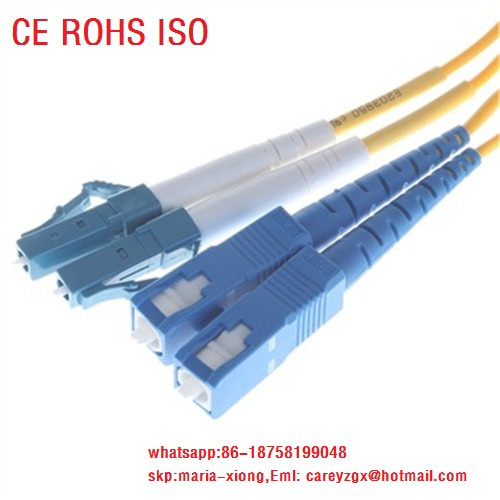

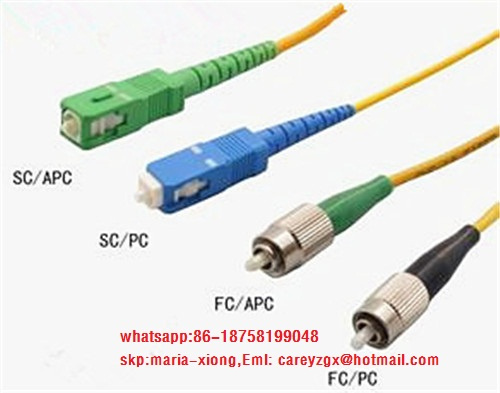

·         Connector Type: LC,SC,FC,ST, E2000, MU, MPO, MTRJ, D4,DIN, SMA, FDDI, ESCON etc.
·         Fiber Mode: SM (single mode) G652D, G655, G657, MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)
