| Prod Model: |
BBG-CRH-48116 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Cell: |
NCR 18650PF Power Cells |
| Configuration: |
13s4p |
| Continuous Current: |
15-25A |
| Charger: |
54.6V-2A Aluminum Charger |
| Weight: |
3.5kg |
| Warranty: |
2 Years |
| Application: |
Electric Bike/Tricycle/Scooter |
| Certification: |
CE, RoHS, UL etc |
| Lead Time: |
7-10working Days After The Order Is Confirmed |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Size: |
245*90*73mm |
| Rated Capacity: |
11.6ah |
| Standard Voltage: |
48V |
| Usage: |
Electric Bike/Tricycle/Scooter |
Product Description

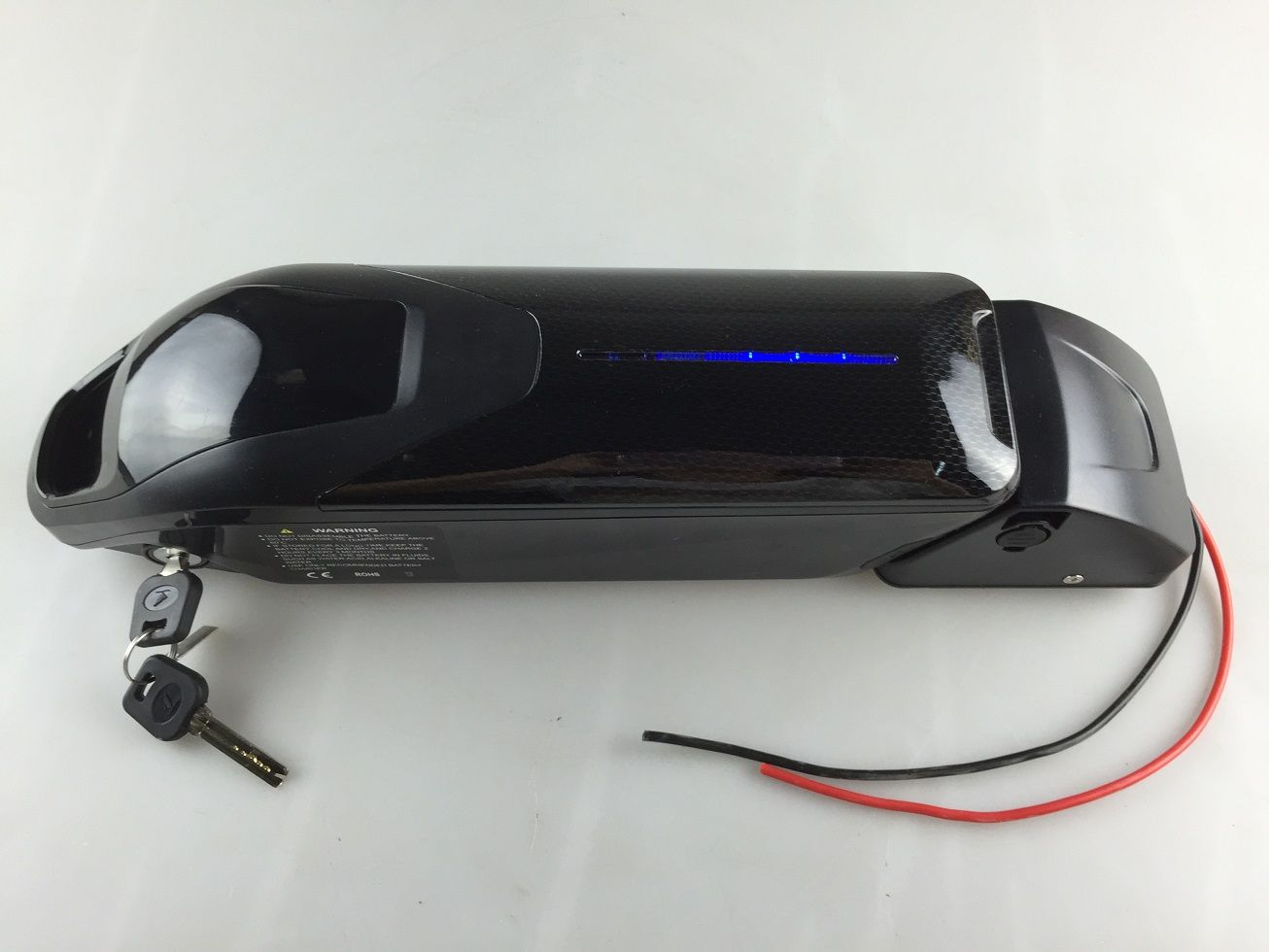

48V 11.6Ah new downtube lithium battery pack for electric bike with 5V USB port
Features
Model: 48V 11.6Ah new downtube lithium battery pack
Cell: NCR18650 PF 2900mah power cells
Configuration: 13S4P
Nominal Voltage: 48V
Nominal Capacity: 11.6Ah
Dimension: 245*90*73mm
Net Weight: Approx 3.5kg
BMS: Custom BMS with 15-25A continuous discharging current and 80A peak current.
Customization: We can assemble the battery pack with different cells like Samsung INR18650-29E 2900mah cells or Panasonic NCR18650B 3400mah cells etc, also the size and capacity can be custom as your request.
Specification
| Item | Parameters | Remark |
| Typical Capacity | 11.60Ah | 25ºC,1 C5A discharge |
| Nominal Voltage | 48.0V | 25ºC,Average Voltage at 0.2 C5A discharge |
| Charge input voltage | 110-240V AC | Wide voltage |
| Charge current | 2A | Working temperature:0~35ºC |
| Charge cut-off voltage | 54.6V | CC/CV |
| Charge time | about 5h |
|
| Working current | 25-30A |
|
| Peak Working Current(2S) | 80A | Working temperature:0~35ºC |
| Over charge protection | 4.2±0.05V | Single cell |
| Over discharge protection | 2.75±0.05V | Single cell |
| Battery Weight | ≤ 3.39kg |
|
| Storage temperature | ≤3month | Best 20±5ºC for long-time storage |
Storage humidity | ≤3month | 0~30ºC | Best storage temperature:20±5ºC
Charge battery every 3 month |
| ≤6month | 20±5ºC |
| 65±20%RH | 20±5ºC |
Inner Circuit Board
The inner circuit board, provides protection against over-charge, over-discharge and short circuit, through monitoring
single string of cells. Also it enables every battery pack to obtain independent balancing function
Key Application
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
