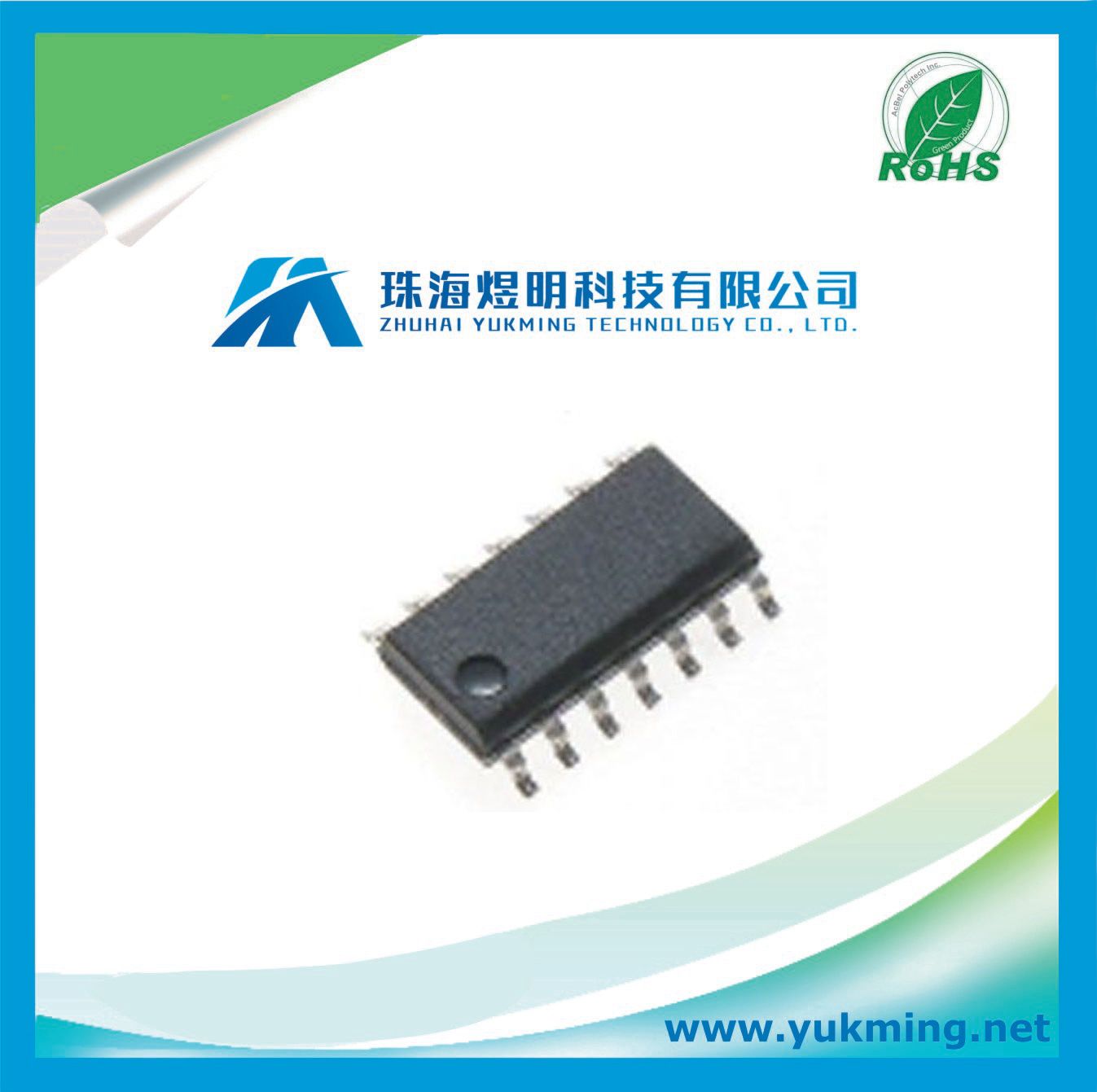

New and Original IC Lm324apw Quadruple Operational Amplifier IC

Name: New and Original IC Lm324apw Quadruple Operational Amplifier IC
Brand: all-electronics-online.com
SKU: 796536435
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 0.1125/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM324APW
Manufacturer Type:	High Gain Amplifier
Number Of Channels Per Chip:	4
Technology:	Bipolar
Rail To Rail:	No
Typical Gain Bandwidth Product (MHz):	1.2
Maximum Input Offset Voltage (Mv):	3@30V
Maximum Input Offset Current (Ua):	0.03@5
Maximum Input Bias Current (Ua):	0.1@5V
Packaging:	Tube
Typical Voltage Gain:	100

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
OP Amp

DESCRIPTION
OP Amp Quad GP

Increase functionality to your instrumentation with this general purpose amplifier LM324APW OP amp from Texas Instruments. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1.5 V and maximum of ±16 V. This op amp has a temperature range of 0 °C to 70 °C. This device utilizes bipolar technology. This device uses one or two power supplies. It has 4 channels per chip.

Specifications
EU RoHS Compliant
Manufacturer Type High Gain Amplifier
Type General Purpose Amplifier
Number of Channels per Chip 4
Technology Bipolar
Rail to Rail No
Typical Gain Bandwidth Product (MHz) 1.2
Maximum Input Offset Voltage (mV) 3@30V
Maximum Input Offset Current (uA) 0.03@5V
Maximum Input Bias Current (uA) 0.1@5V
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Packaging Tube
Maximum Single Supply Voltage (V) 32
Maximum Dual Supply Voltage (V) ±16
Typical Slew Rate (V/us) 0.5@±15V
Shut Down Support No
Minimum Single Supply Voltage (V) 3
Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
Minimum Dual Supply Voltage (V) ±1.5
Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
Minimum CMRR (dB) 65
Typical Voltage Gain (dB) 100
Power Supply Type Single|Dual
Mounting Surface Mount
Package Height (mm) 1.05(Max)
Package Length (mm) 5.1(Max)
Package Width (mm) 4.5(Max)
PCB changed 14
Standard Package Name SOP
Supplier Package TSSOP
Pin Count 14
Lead Shape Gull-wing
