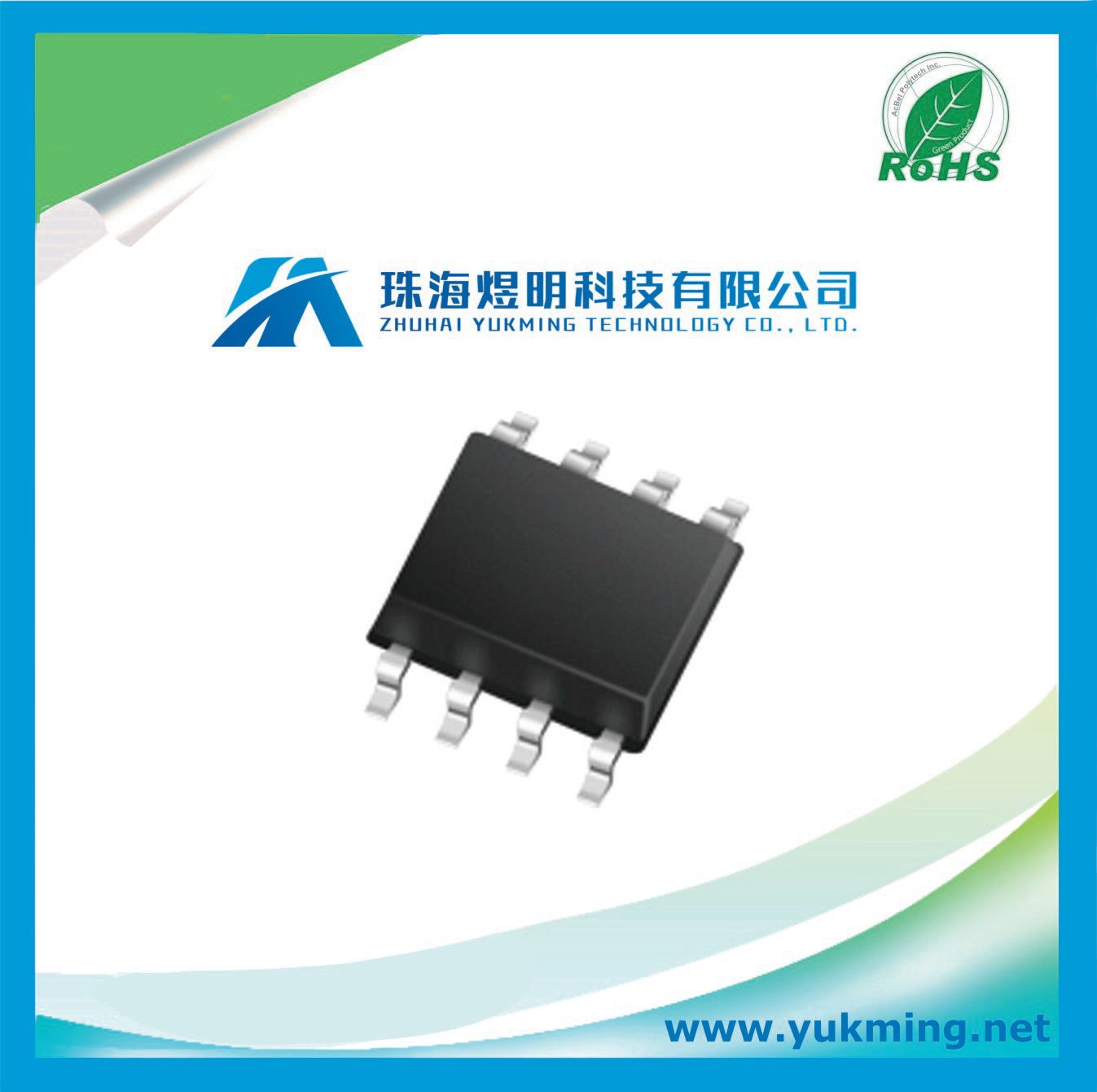

New and Original Storage IC 23K256

Name: New and Original Storage IC 23K256
Brand: all-electronics-online.com
SKU: 796529845
Availability: InStock
Rating: 4.3 (30 reviews)

Price:	US $ 0.4-2/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	23K256 - I/SN
Address Bus Width (Bit):	1
Maximum Access Time (Ns):	25
Timing Type:	Synchronous
Maximum Clock Rate (MHz):	20
Maximum Operating Current (Ma):	10
Typical Operating Supply Voltage (V):	3.3
Number Of Bits Per Word (Bit):	8
Number Of Ports:	1
Number Of Words:	32K
Minimum Operating Supply Voltage (V):	2.7

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

PRODUCT CATEGORY
SRAM Chip

DESCRIPTION
SRAM Chip Sync Single 3.3V 256K-Bit 32K x 8 25ns 8-Pin SOIC N Tube

Specifications
EU RoHS Compliant
Density (bit) 256K
Address Bus Width (bit) 1
Maximum Access Time (ns) 25
Timing Type Synchronous
Maximum Clock Rate (MHz) 20
Data Rate Architecture SDR
Maximum Operating Current (mA) 10
Typical Operating Supply Voltage (V) 3.3
Number of Bits per Word (bit) 8
Number of Ports 1
Number of Words 32K
Minimum Operating Supply Voltage (V) 2.7
Maximum Operating Supply Voltage (V) 3.6
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tube
Mounting Surface Mount
Package Height (mm) 1.25(Min)
Package Length (mm) 4.9
Package Width (mm) 3.9
PCB changed 8
Standard Package Name SOP
Supplier Package SOIC N
Pin Count 8
Lead Shape Gull-wing

Features:
• Max. Clock 20 MHz
• Low-Power CMOS Technology:
- Read Current: 3 mA at 1 MHz
- Standby Current: 4 mA Max. at +85°C
• 32,768 x 8-bit Organization
• 32-Byte Page
• HOLD pin
• Flexible Operating modes:
- Byte read and write
- Page mode (32 Byte Page)
- Sequential mode
• Sequential Read/Write
• High Reliability
• Temperature Ranges Supported:
- Industrial (I): -40 °C to +85 °C
- Automotive (E): -40 °C to +125 °C
• Pb-Free and RoHS Compliant, Halogen Free
