| Prod Model: |
F21-C-E1Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
New Arrival 200m Pll Remote Control F21-C-E1q Wire |
| Control Distance: |
200m |
| Control Motion: |
6 |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature: |
-35°c___+80°c |
| Enclosure Protection Class: |
IP65 |
| Transmitter Power: |
DC 6V |
| Receiver Power: |
AC 380V/ 36V/220V or DC12V/24V |
| Output Capacity: |
Full Sealed Relay Output with 5 Amperes |
| Frequency: |
425.5925-446.9925MHz |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Not Universal |
| Transmission Distance: |
>100m |
| Battery Type: |
AA Battery |
| Voltage: |
Optional |
| Material: |
Glass Fiber-Reinforced Nylon-6 |
Product Description

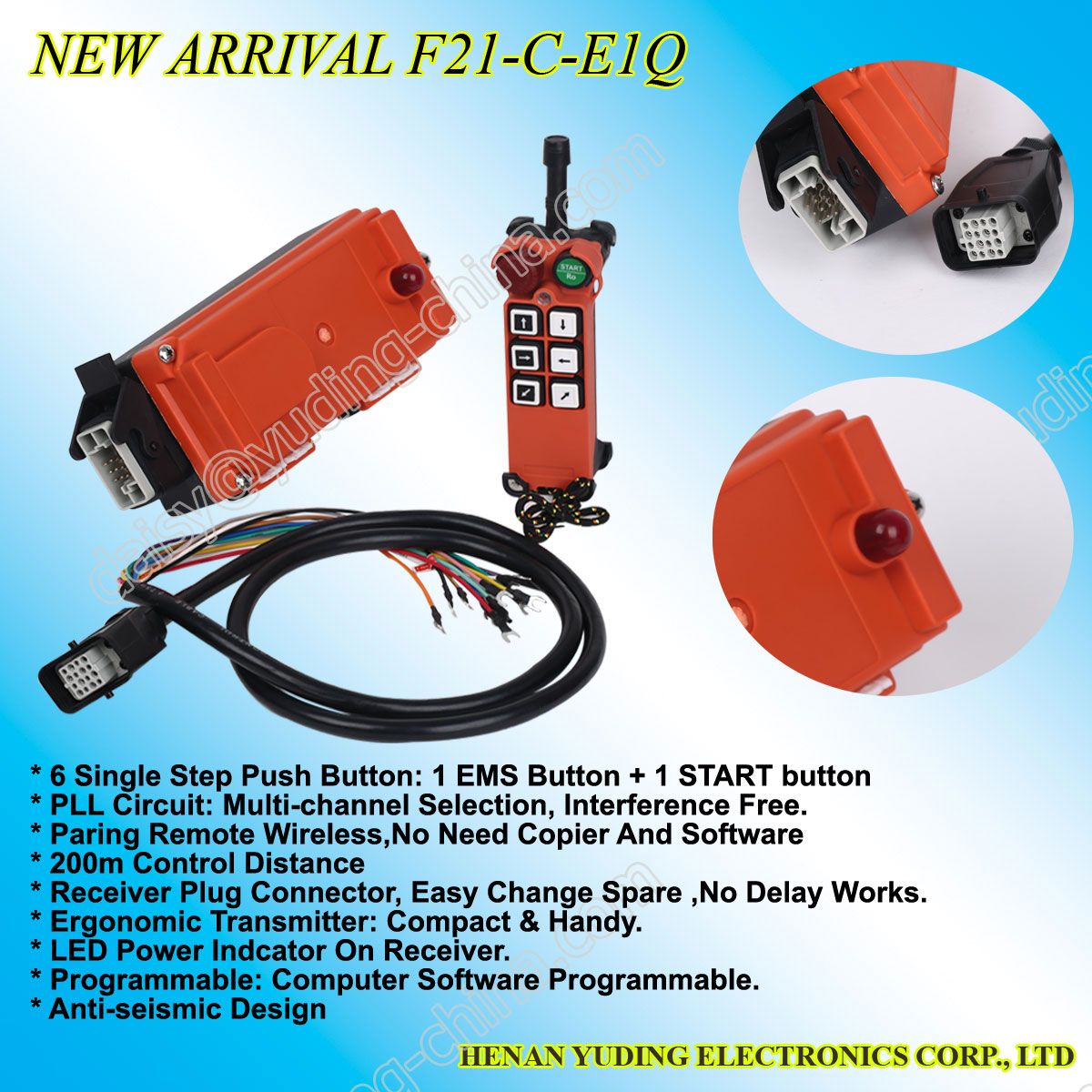

New arrival 200m PLL remote control F21-C-E1Q Wireless remote control
New design & advantages:
1. Use aero plug kit,You can connect the wire on the power supply, when you want to use the receiver, you just nee to connect the aero plug kit. And after you use it, you can just remove the receiver without the wire.
a Time saving, in avoid of wasting time on connection time to time.
b Easy to connect and remove, can avoid error connection which caused by times re-connection.
c Space-saving
2. Automatic frequency adjustment & transmitter and receiver paring freely.
3. Plus LED indicator light on the receiver, prompting the trouble in time.
3. Widely frequency: 425.5925~446.9925MHz
4. Push button sticker use arrow, without language restriction. If you need we can also offer you English or Chinese sticker.
5. In order to solve the push button block, we made the push button groove more bigger than ever.
Specification of Transmitter:
| TX Model | F21-C-E1Q-TX |
|
| TX Size | about 15.6*5.6*4.9cm |
| TX Weight | about 211g(without Batteries) |
| Housing material | glass fiber-reinforced nylon-6 |
Protection
Degree | IP65 |
Temperature
Rating | -35°C ~ +85°C(Regardless of the
battery temperature tolerance) |
TX power
Supply | Two 1.5 volts Batteries(AA Size) |
Number of
buttons | 6 Single speed buttons,1 START
button,1 mushroom button |
Button
Marking | arrow tip |
| I.D.Code | 4.3 billion |
Voltage
Warning | TX Red LED will flash slowly
when the volts under 2.2V,
and unable to start TX under 1.8V. |
Operating
Frequency | 425.5925-446.9925MHz |
Channel
Spacing | 0.2675MHz |
| Channel | 80CH/80CH |
| RF Power | <10DBm |
Fault
Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
Specification of receiver:
| RX Model | F21-C-E1Q-RX |
|
| RX Size | 21.4x8.6x7.9cm |
| RX Weight | about673g |
| Housing material | glass fiber-reinforced nylon-6 |
Protection
Degree | IP65 |
Temperature
Rating | -35°C ~ +85°C |
RX power
Supply | AC380V,AC36V,AC220V,AC110V,
AC48V,AC24V,AC12V/DC12V,
AC380V/AC220V(50-60Hz) |
Number of
buttons | 6 Relays control functions,
1 relay control EMS and 1 relay
reserve |
Output
Relays | 5Amp Omniseal Relays
(AC250V/10A Relays ,10Amp
fuse) |
| I.D.Code | 4.3 billion |
Operating
Frequency | 425.5925-446.9925MHz |
Channel
Spacing | 0.2675MHz |
| Channel | 80CH/80CH |
| Sensitivity | >=-110DBm |
| Interface | aviation connector |
Packing and delivery:
10 sets per carton
Carton size: 67*54*37cm
Weight: 18.5kg
Delivery time: for sample 1-3 working days. Less than 100 sets 7-10 working days.
