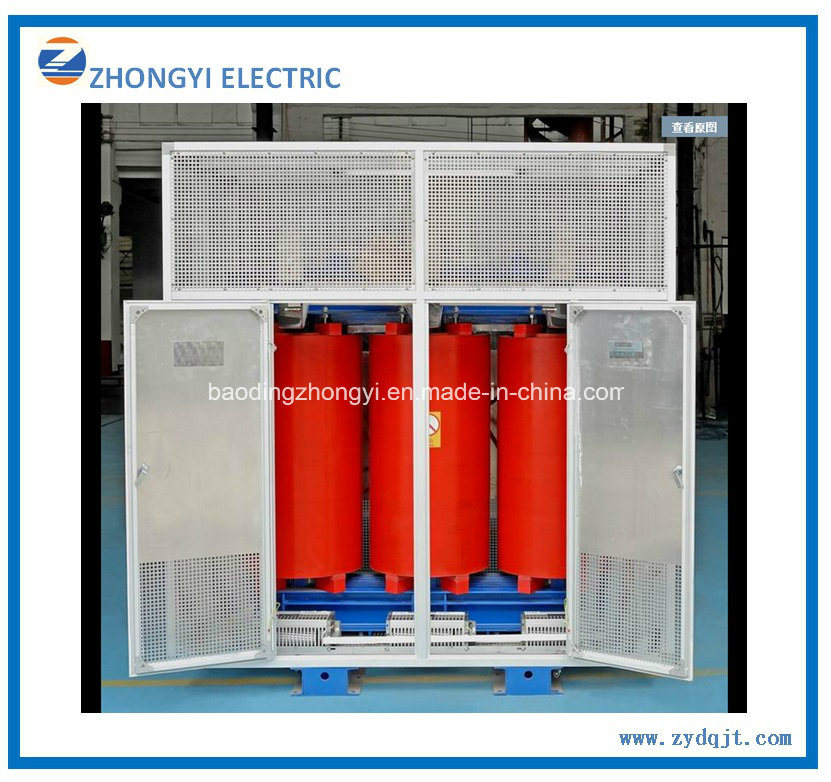

New Design 10kv 2000kVA Dry Type Distribution Transformer

Name: New Design 10kv 2000kVA Dry Type Distribution Transformer
Brand: all-electronics-online.com
SKU: 823228495
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 13000/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC(B)10
Rated Capacity:	2000kVA
Noload Loss:	3320W
Load Loss:	14450W
Noload Current:	1.0%
Impedance Voltage:	8%
Winding Material:	Copper/Alumnium Winding
Iron Core:	New Grain Oriented Silicon Steel Sheet
Coil Number:	Autotransformer
Application:	Electronic
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Zhongyi

Product Description

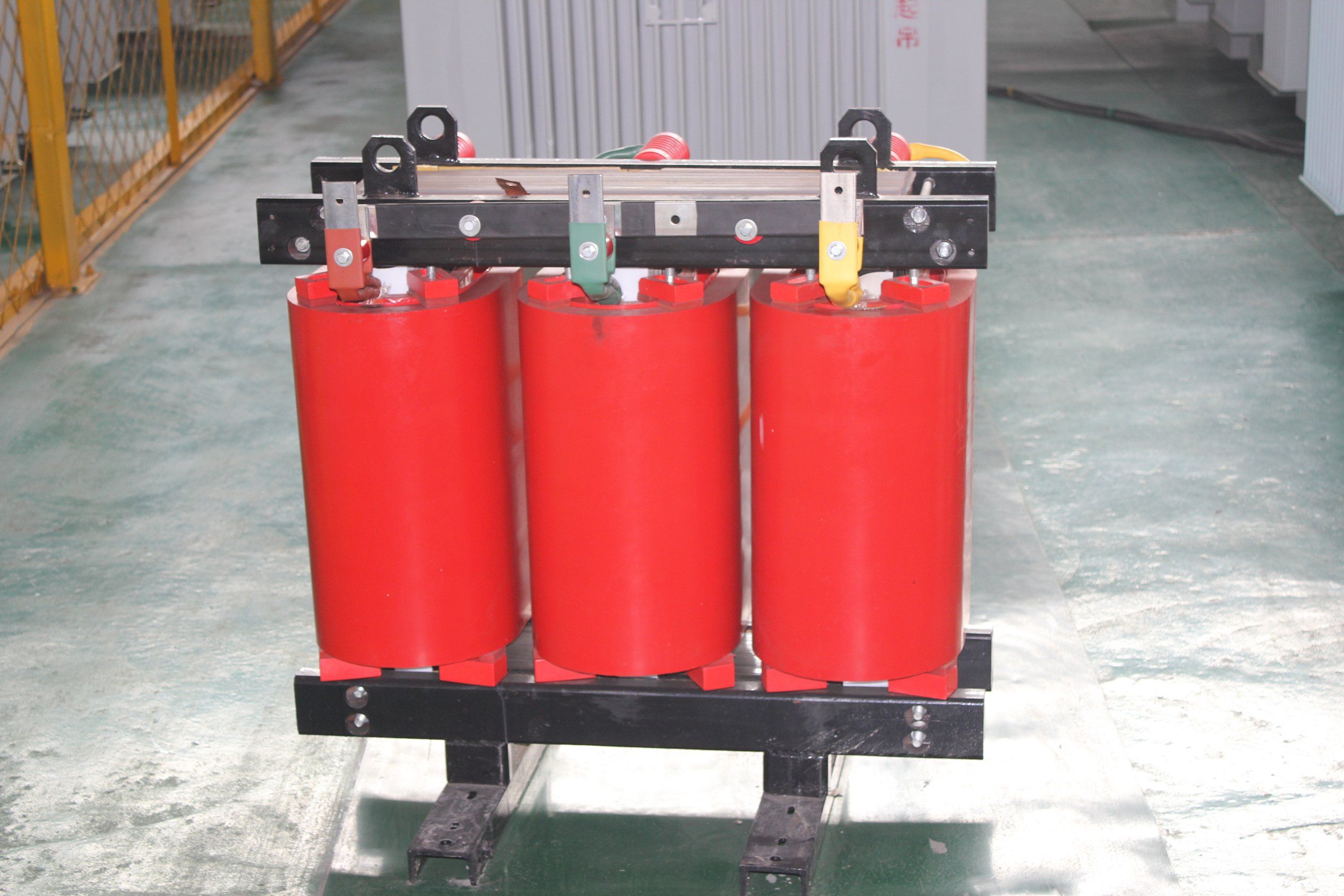

Dry Type Power Transformer

Product Description

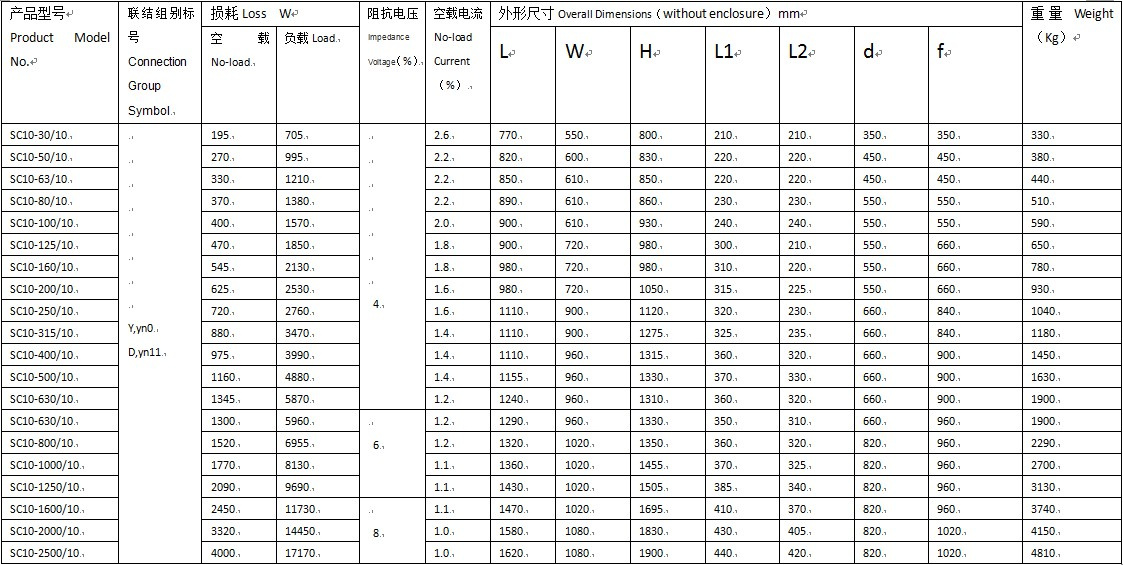

Specifications:

1.Insulation Dry-type power transformer
2.IEC Standards
3.High efficiency,low loss,low noise
4.epoxy resin cast

5.Model:SCB10/SGB 10

6.Copper winding or alluminum winding

Applications

This kind SC(B)&SG(B) dry type power transformer is applied to power system of three-phase, 50Hz as well as 35kV and below, it is the main transformer equipment of medium and small-sized transformer substation, supplies power distribution, power and illumination for the industry and agriculture, Hotel airport, power plant, hospital, skyscraper, shopping center and residential areas.

Product Characteristics:

1. safe, fire-retardant, fireproof and pollution-free.

2. It can be directly installed at the load center, is free of maintenance and easy and convenient to install, and has low comprehensive running cost.

3. With high moisture resistance, it runs normally at the moisture of 100% and can be put into operation without being dried after outage, with low loss and local discharge capacity.

4. It has small noise, strong short circuit resistance and excellent environmental performance, and can run under severe environmental condition.

certifications

Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.

The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.

Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.

Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
