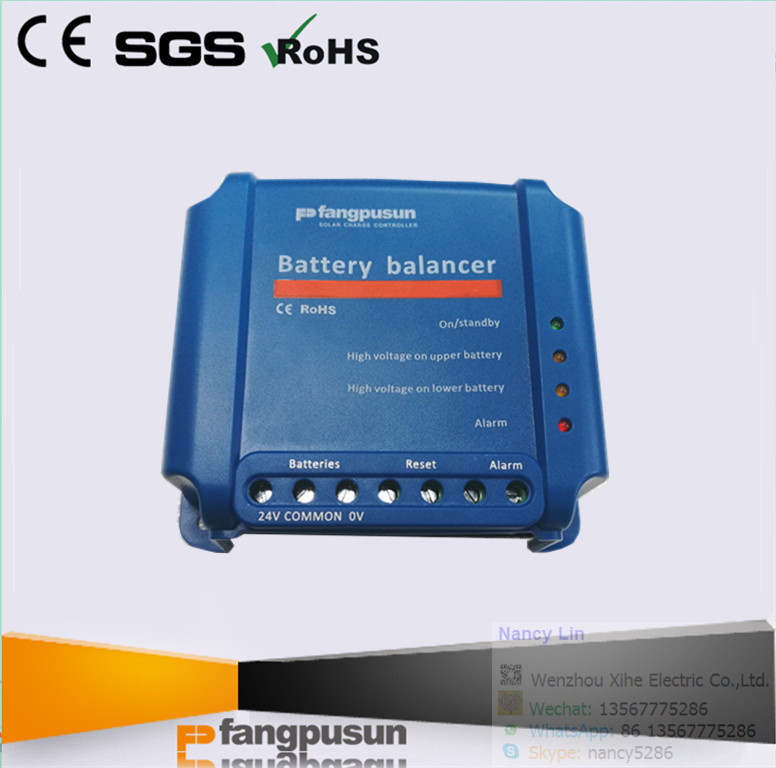

New Design Fangpusun Battery Balancer

Name: New Design Fangpusun Battery Balancer
Brand: all-electronics-online.com
SKU: 838124115
Availability: InStock
Rating: 4.9 (26 reviews)

Price:	US $ 19.61-23.07/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	battery balancer
LED Indicators Green:	on (Battery Voltage > 27,3V)
LED Indicators Orange:	Lower Battery Leg Active (Deviation > 0,1V)
LED Indicators Red:	Alarm (Deviation > 0,2V)
Input Voltage Range:	up to 18V Per Battery, 36V Total
Turn On Level:	27,3V +/- 1%
Turn Off Level:	26,6V +/- 1%
Maximum Balancing Current:	0,7A (When Deviation > 100 Mv)
Alarm Relay Reset:	Two Terminals to Connect a Push Button
Weight:	0.4kgs
Type:	Lead-Acid Batteries
Usage:	Boat
Discharge Rate:	High Discharge Rate
Shape:	Flat Battery
Rechargeable:	Non-Rechargeable
Nominal Voltage:	12V/24V/48V
Installation:	Flush Mount

Product Description

Input voltage range	Up to 18V per battery, 36V total

Turn on level	27,3V +/- 1%

Turn off level	26,6V +/- 1%

Current draw when off	0,7 mA

Midpoint deviation to start balancing	50 mV

Maximum balancing current	0,7A (when deviation > 100 mV)

Alarm trigger level	200 mV

Alarm reset level	140 mV

Alarm relay	60V / 1A normally open

Alarm relay reset	Two terminals to connect a push button

Over temperature protection	yes

Operating temperature	-30 t0 +50°C

Humidity (non-condensing)	95%

ENCLOSURE
Colour

Connection terminals	Screw terminals 6 mm² / AWG10

Protection category	IP22

Weight	0,4 kg

Dimensions (h x w x d)	100 x 113 x 47 mm
STANDARDS
Safety	EN 60950

Emission	EN 61000-6-3, EN 55014-1

Immunity	EN 61000-6-2, EN 61000-6-1, EN 55014-2

Automotive Directive	EN 50498

Q1. What's Certificates you have?

A: CE, ROHS, ISO9001, SGS certificates

Q2. How many years warranty?

A: All of products warranty 2 years. If have any quality problem, could return to us exchange new one or repair ir free. Use our company DHL account, free freight.

Q3. What's the payment term?

A: 100% T/T (large order, accept 30% T/T prepay 70% balance before shipping), Western Union, Paypal.

Q4. How's the delivery time?

A: Usually 2 hours after receive full payment. OEM order need 10-15 days.

Q5. Are you Steca/ Xantrex/ Outback factory or supplier?

A: No! We just copy Steca solar charge controller, Copy Outback Flex Max MPPT solar charge controller and copy Xantrex power inverter. Same construction, same function and same quality as Steca/ Xantrex/ Outback, but lower price than Steca/ Xantrex/ Outback. Good choose for customers.

Q6. What's Government tender you get?

A: FP-S-300W and FP-S-600W inverter get Indonesia tender, Solarix MPPT2010 controller get Bulgaria tender, PR2020 solar controller get Ecuador tender, PR3030 solar charge controller get Mexico tender and so on.

Q7. Would you supply OEM/ ODM service?

A: Yes! Our company supply OEM service.

. MOQ 200Pcs per model, blank box packing, standard export carton.

. MOQ 500Pcs per model, customer's design color box packing, standard export carton.

Q8. How to distinguish solar charge controller with MPPT function?

A: input voltage more than output voltage, charging current less than loading current.

Q9. Why your unit price is higher than other supplier?

A: Alto and Audi are cars, also four wheels cars. Why Audi price higher than Alto? The same token, our Fangpusun solar charge controller unit price higher than other suppliers, so products quality higher than other supplier. We believe in the right balance between quality and price, we offer competitively priced systems while maintaining our high standard of quality.

Q10. What type of battery to connect Fangpusun solar charge controller?

A: GEL and AGM battery are all available. Solsum E, Solsum F, Solarix PRS, SOlarix MPPT these these 4 series also could setting for Li battery.

Q11. Engineering expertise

A: In Fangpusun we know that every project is different. Our solar experts with 10 years experience. will conduct a solar site analysis using the latest tools in the industry to ensure the maximum performance of your solar system. Give you the best suggestion, recommend suitable model for you.

Q12. What about your sale service?

A: Developing long-lasting relations with our customers is of utmost importance to us. We are committed to providing you with excellent all-round services, before, during and after the installation of your renewable energy syste.

All of our products get CE, RoHS, SGS, ISO certificates, supply warranty 2 years service, free replacement. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
